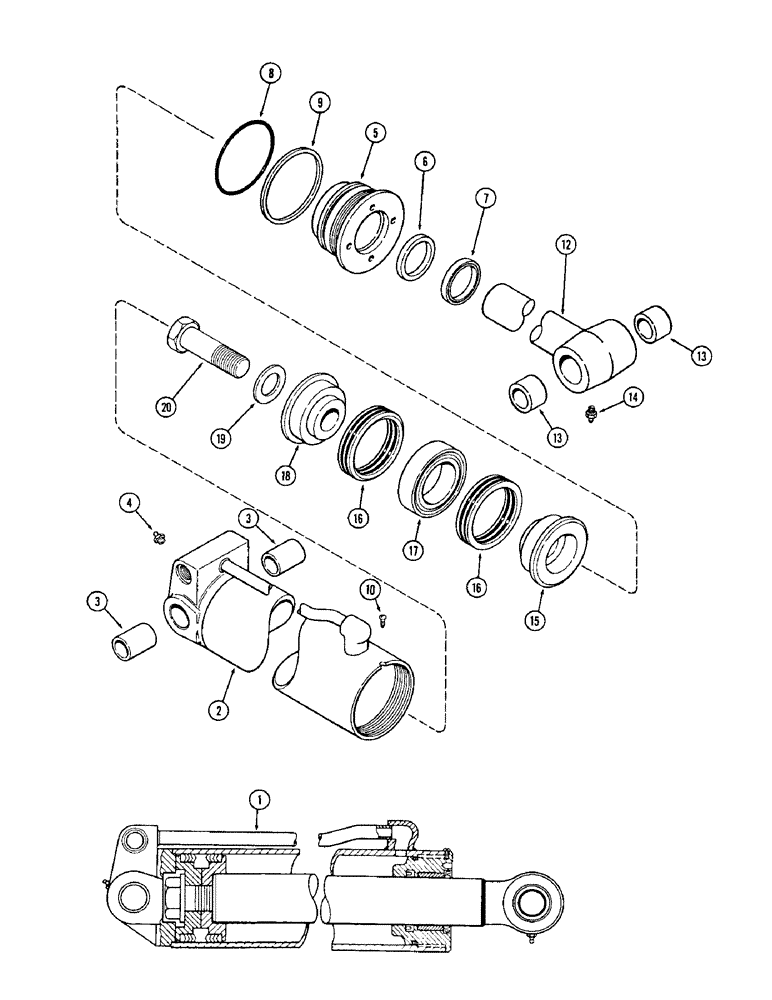

Запчасти Case 880 (252) - TOOL CYLINDER, 5" DIA. CYLINDER W/31-3/32" STROKE (07) - HYDRAULIC SYSTEM

1

S602298

CYLINDER

ASSY - hydraulic, tool, Includes: Ref. 1 - 20

1шт.

S602298 CYLINDER ASSEMBLY ALSO INCLUDES G106951 CONNECTOR TUBE...10APR96...GLC

1шт.

2

S505920

TUBE

ASSY - cylinder, Includes: Ref. 3

1шт.

3

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

5

S92715

GLAND

ASSY - (Includes bushing NSS), Includes: Ref. 6 - 9

1шт.

6

D45571

ROD

SEAL - gland

1шт.

Part of seal repair kit, P/N S92713

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod (2-1/2" I.D.)

1шт.

Part of seal repair kit, P/N S92713

1шт.

8

49393

O-RING,4.734" ID x 5.012" OD x 0.139"

"O" RING - gland seal (4-3/4" x 5 x 1/8")

1шт.

Part of seal repair kit, P/N S92713

1шт.

9

S92639

RING

- back up (4-3/4" I.D.)

1шт.

Part of seal repair kit, P/N S92713

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland No. 8-32 x 1/4" rd. hd. self-tapping

1шт.

12

S220004

ROD ASSY.

ROD ASSY - piston, 2-1/2" dia., Includes: Ref. 13

1шт.

13

S202070

BUSHING

- pivot

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

15

S220006

PISTON

- split, rod end

1шт.

16

D47206

PACKING

- piston

2шт.

Part of seal repair kit, P/N S92713

1шт.

17

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center, packing

1шт.

18

D49335

PISTON

- split, bolt end

1шт.

19

G32666

WASHER

- retaining, piston

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston, 1-1/2" N.F. x 3-1/2" hex hd.

1шт.

S92713

SEAL KIT

KIT - seal repair, Includes Ref. 6 - 9 & 16)

1шт.
