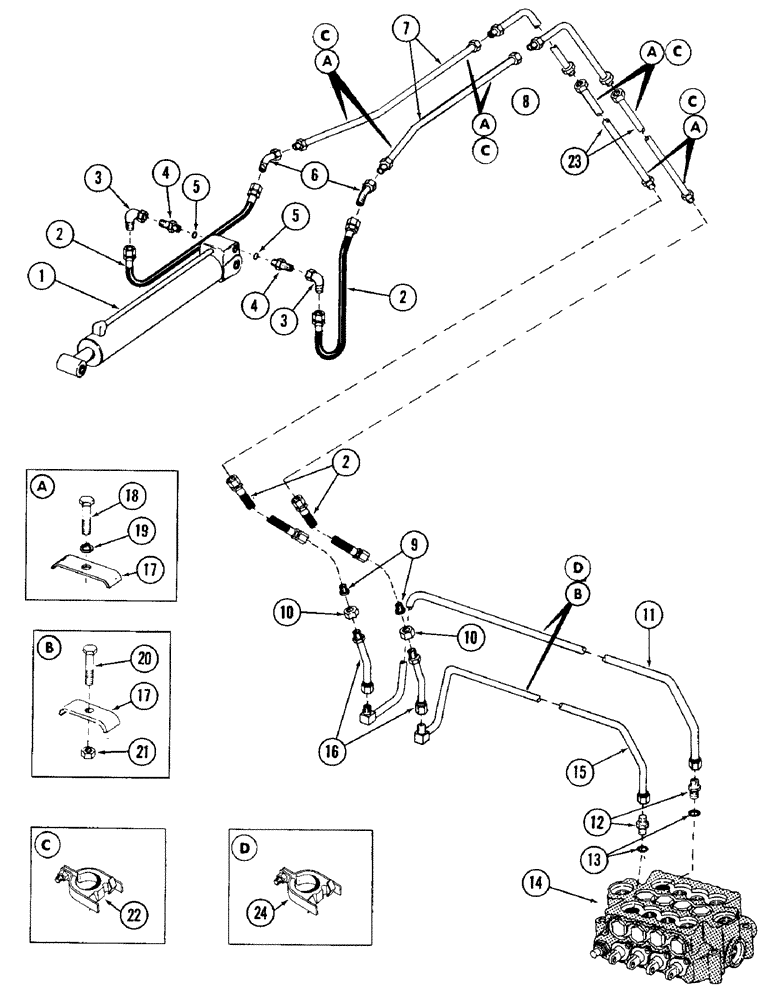

Запчасти Case 880 (250) - "Y" BOOM TOOL CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see figure 252)

1шт.

2

D44752

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

4

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - (flared) - 1-1/16" - 12 female x 1-1/16" - 12 female

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

6

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

- 45 degree swivel - 1-1/16" - 12 male x 1-1/16" - 12 female

2шт.

7

S501883

LINE, hydraulic 1" OD x 73.5, 5.4" L

2шт.

8

S501882

LINE, hydraulic 1" OD x 13.92, 9" L

2шт.

9

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 10

2шт.

10

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

11

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 13

2шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

14

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

15

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

16

S211849

LINE,1.25" OD

hydraulic

2шт.

17

S46397

CLAMP

tube, Serial Range: 6200000-6200911

10шт.

18

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5, Serial Range: 6200000-6200911

8шт.

19

92-22

WASHER, lock - 1/2", Serial Range: 6200000-6200911

8шт.

20

113-427

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

, Serial Range: 6200000-6200911

2шт.

21

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Serial Range: 6200000-6200911

2шт.

22

S91602

CLAMP

tube - 1", Start Serial: 6200912

8шт.

23

S206780

LINE,1" OD x 7" L

hydraulic

2шт.

24

S93266

CLAMP

tube - 1-1/4", Start Serial: 6200912

2шт.
