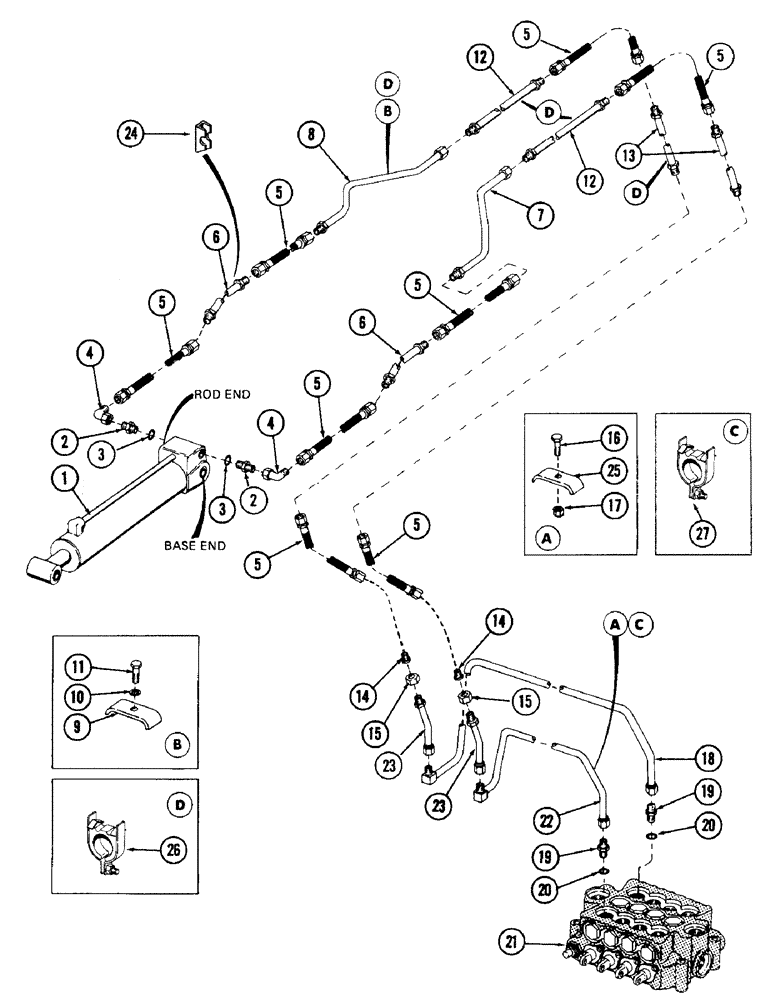

Запчасти Case 880 (248) - "E" BOOM TOOL CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, tool - (For breakdown, see figure 252)

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER, flared - 1-1/16" - 12 male x 1-1/16" - 12 male, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

4

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

5

D44752

HOSE

high pressure - 3/4" ID x 28" long (With 1-1/16" - 12 female pressed on couplings)

6шт.

6

S211970

LINE,1" OD x 20.6, 1.75" L

hydraulic

2шт.

7

S502507

LINE,1" OD

hydraulic

1шт.

8

S502506

LINE,1" OD

hydraulic

1шт.

9

S46397

CLAMP

tube - (Used on units with serial number 6200000 thru 6200971, 6200973, 6200974, 6200977 thru 6200980)

2шт.

10

92-8

LOCK WASHER,1/2"

(Used on units with serial number 6200000 thru 6200971, 6200973, 6200974, 6200977 thru 6200980) 1/2"

2шт.

11

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Used on units with S/N 6200000 thru 6200971, 6200973, 6200974, 6200977 thru 6200980) Hex, 1/2"-13 x 2", G5

2шт.

12

S208722

LINE,1" OD x 116" L

hydraulic

2шт.

13

S207637

LINE,1" OD x 61.12" L

hydraulic

2шт.

14

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 15

2шт.

15

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

16

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Used on units with S/N 6200911) Hex, 1/2"-13 x 3 1/4", G5

2шт.

17

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Serial Range: 6200000-6200911

2шт.

18

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

19

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 20

2шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

21

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

22

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

23

S211849

LINE,1.25" OD

hydraulic

2шт.

24

S91602

CLAMP

tube

4шт.

25

S46397

CLAMP

tube, Serial Range: 6200000-6200011

2шт.

26

S91602

CLAMP

tube - 1" (Used on units with serial number 6200972, 6200975, 6200976 and 6200981 and after)

5шт.

27

S93266

CLAMP

tube - 1-1/4", Start Serial: 6200012

2шт.
