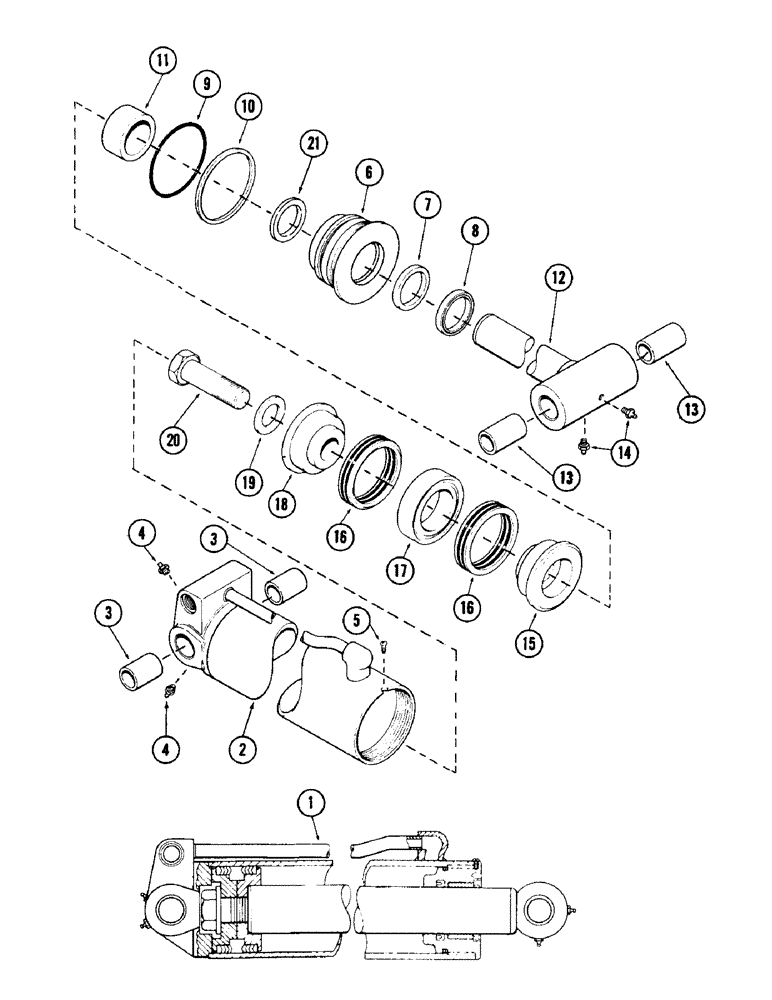

Запчасти Case 880 (244) - HOIST AND CROWD CYLINDER, 5-1/2" DIAMETER CYLINDER W/45-1/2" STROKE & 2-3/4" ROD ASSEMBLY (07) - HYDRAULIC SYSTEM

1

S602618

CYLINDER

ASSY - hydraulic, hoist & crowd, Includes: Ref. 1 - 20

2шт.

2

S602584

TUBE

ASSY - cylinder, Includes: Ref. 3

1шт.

3

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease - 1/8" P.T. str.

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW, gland - No. 8-32 x 1/4" rd. hd. self tapping

1шт.

6

S92723

SEAL KIT

GLAND ASSY, Includes: Ref. 7 - 10

1шт.

Part of gland kit, P/N S92723

1шт.

7

S220099

BEARING

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

8

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

WIPER - rod (2/75" I.D.)

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

9

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - gland seal (4-3/4" x 5-1/8")

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

10

S92644

RING

- back-up (5-1/4" I.D.)

1шт.

Part of seal repair kit, P/N S92724

1шт.

Part of gland kit, P/N S92723

1шт.

11

S220102

SPACER

- gland (2.75" I.D.) x 3-1/2" O.D. x 2"

1шт.

12

S512193

ROD ASSY.

ROD ASSY - piston 2.75", Includes: Ref. 13

1шт.

13

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

pivot

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" P.T. str

4шт.

15

S220101

PISTON

- split, rod end

1шт.

16

D47207

GASKET KIT

PACKING - piston

2шт.

Part of seal repair kit, P/N S92724

1шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center, packing

1шт.

18

D49165

PISTON

- split, bolt end

1шт.

19

NLS

NO LONGER SERVICED

retaining piston

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston - 1-1/2" N.F. x 3-1/2" hex hd

1шт.

21

S220100

SEAL

1шт.

Part of gland kit, P/N S92723

1шт.

S92724

SEAL KIT

KIT - seal repair, Includes: Ref. 7 - 10 & 16)

1шт.

S92723

SEAL KIT

KIT - gland, Includes: Ref. 6 - 10 & 21)

1шт.
