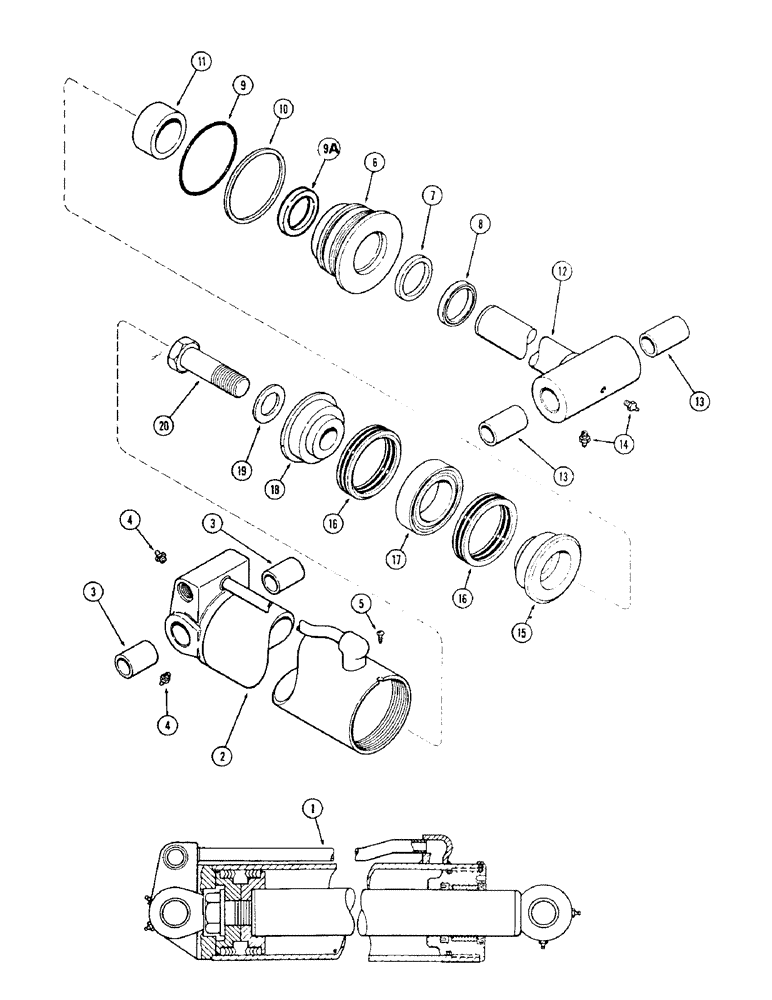

Запчасти Case 880 (242) - HOIST & CROWD CYLINDER, 5-1/2" DIA. CYLINDER W/45-1/2" STROKE 2-1/2" ROD ASSEMBLY (07) - HYDRAULIC SYSTEM

1

S602297

CYLINDER

ASSY - hydraulic, hoist and crowd, Includes: Ref. 2 - 20

2шт.

For complete replacement of hoist and crowd cylinder on units with serial numbers 6200000 thru 6201114 order cylinder S602618 as illustrated on figure 244.

1шт.

2

S602584

TUBE

ASSY - cylinder, Includes: Ref. 3

1шт.

3

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- pivot

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease 1/8" P.O. str.

2шт.

5

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland, No. 8-32 x 1/4" rd. head self-tapping

1шт.

6

G34533

GLAND

ASSY, Includes: Ref. 7 - 10

1шт.

Part of gland kit, P/N G34533

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

BEARING

1шт.

Part of gland kit, P/N G34533

1шт.

Part of seal repair kit, P/N G34536

1шт.

8

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod (2.50" I.D.)

1шт.

Part of gland kit, P/N G34533

1шт.

Part of seal repair kit, P/N G34536

1шт.

9

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

"O" RING - gland seal - (4-3/4" x 5-1/8")

1шт.

Part of gland kit, P/N G34533

1шт.

Part of seal repair kit, P/N G34536

1шт.

10

S92644

RING

- back up (5-1/4" I.D.)

1шт.

Part of gland kit, P/N G34533

1шт.

Part of seal repair kit, P/N G34536

1шт.

11

S92645

SPACER

- gland (2-1/2" I.D. x 3-1/2" O.D. x 2"

1шт.

12

NSS

NOT SOLD SEPARAT

ROD ASSY - piston 2.50" dia., Includes: Ref. 13

1шт.

For replacement of rod assy., ref. 12. Order kit no. S612159. This kit consists of ref. no's. 7, 8, 9, 10, 11, 12, 15 and 21 on figure 244.

1шт.

13

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- pivot

2шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

4шт.

15

D49164

PISTON

- split, rod end

1шт.

16

D47207

GASKET KIT

PACKING - piston

2шт.

Part of seal repair kit, P/N G34536

1шт.

17

D47212

BEARING WASHER,4.256" ID x 5.491" OD x 0.748"

RING - center, packing

1шт.

18

D49165

PISTON

- split, bolt end

1шт.

19

NLS

NO LONGER SERVICED

- retaining, piston

1шт.

20

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

- piston, 1-1/2" N.F. x 3-1/2" hex hd

1шт.

G34536

SEAL

KIT - seal repair, Includes: Ref. 7 - 10 & 16)

1шт.

G34533

GLAND

KIT - gland, Includes: Ref. 6 - 10)

1шт.
