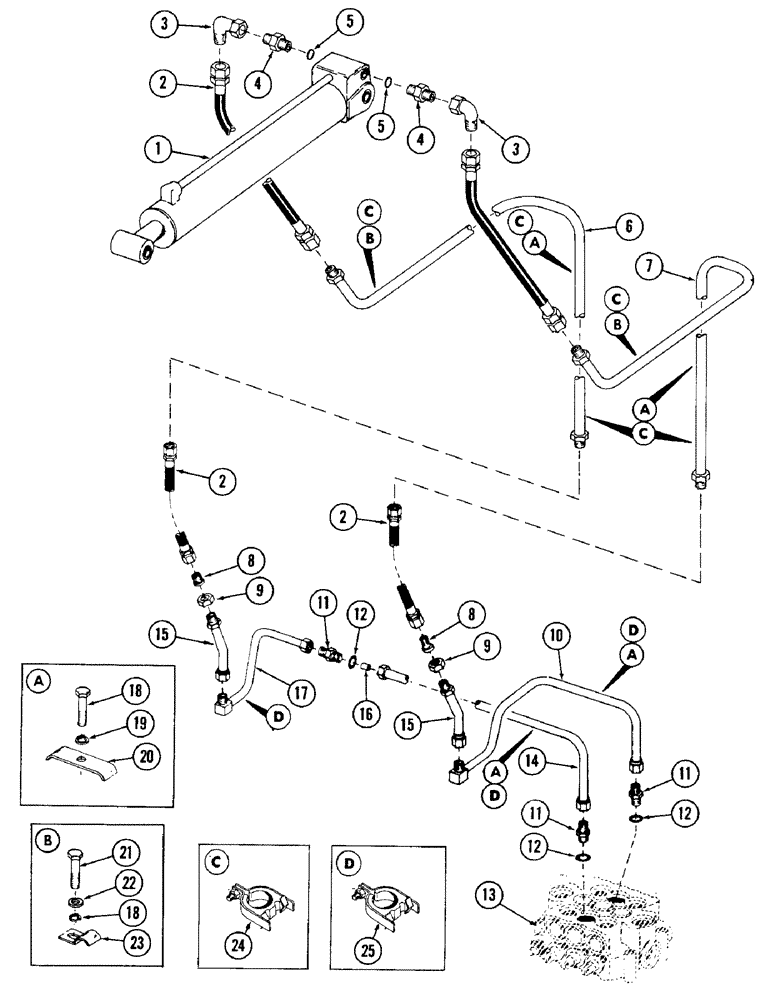

Запчасти Case 880 (240) - "Y" BOOM CROWD CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, crowd - (For breakdown, see figure 242)

1шт.

2

D44752

HOSE

high pressure - 3/4" ID x 28" long - (With 1-1/16" - 12 female pressed on couplings)

4шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

2шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER, flared - 1-1/16" - 12 male x 1-1/16" - 12 male, Incl. Ref. 5

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

6

S502586

LINE, hydraulic 1" OD

1шт.

7

S502585

LINE, hydraulic 1" OD

1шт.

8

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 9

2шт.

9

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

10

S502079

TURBINE,1.25" OD

LINE, hydraulic

1шт.

11

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 12

3шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

3шт.

13

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

14

S502078

TUBE ASSY.,1.25" OD x 9.1, 19" L

LINE, hydraulic

1шт.

15

S211849

LINE,1.25" OD

hydraulic

2шт.

16

D56252

FITTING

REGULATOR, flow

1шт.

17

S502109

LINE,1.25" OD

hydraulic

1шт.

18

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

CPSW - 1/2" - 13 NC x 2-1/4", Serial Range: 6200000-6200911

6шт.

19

92-8

LOCK WASHER,1/2"

, Serial Range: 6200000-6200911

8шт.

20

S46397

CLAMP

tube, Serial Range: 6200000-6200911

6шт.

21

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

, Serial Range: 6200000-6200911

2шт.

22

195-33

WASHER,1/2"

flat - 1/2", Serial Range: 6200000-6200911

2шт.

23

S79593

CLAMP, tube - 1", Serial Range: 6200000-6200911

2шт.

24

S91602

CLAMP

tube - 1", Start Serial: 6200912

4шт.

25

S93266

CLAMP

tube - 1-1/4", Start Serial: 6200912

3шт.
