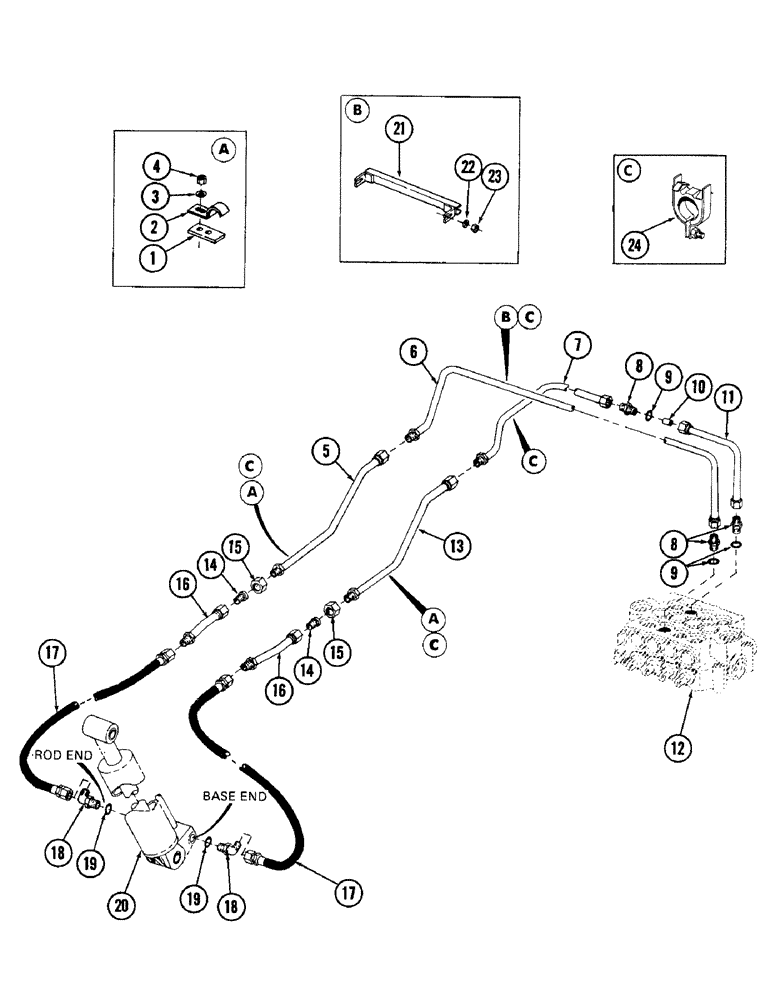

Запчасти Case 880 (234) - HOIST CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S86720

SPACER, Serial Range: 6200000-6200911

2шт.

2

S74460

CLAMP, tube - 1/4", Serial Range: 6200000-6200911

2шт.

3

96-1

WASHER, flat - 3/8", Serial Range: 6200000-6200911

2шт.

4

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

5

S502085

LINE, hydraulic 1.25" OD

1шт.

6

S502083

LINE

hydraulic

1шт.

7

S502110

LINE, hydraulic 1.25" OD x 21.47, 18.1" L

1шт.

8

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" male x 1-5/16" male, Incl. Ref. 9

3шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

3шт.

10

D56252

FITTING

REGULATOR, flow

1шт.

11

S502084

TUBE,1.25" OD

LINE, hydraulic

1шт.

12

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

13

S502086

LINE

hydraulic

1шт.

14

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" to 3/4" tube reduction) - 1-1/16" - 12 male, Includes: Ref. 15

2шт.

15

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 female

2шт.

16

S211969

LINE,1" OD x 6.4, 1.5" L

hydraulic

2шт.

17

D44752

HOSE

high pressure - 3/4" ID x 28" long (With 1-1/16" - 12 female pressed on couplings)

2шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, flared - 1-1/16" - 12 male x 1-1/16" - 12 male, Incl. Ref. 19 and 20

2шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

20

REF

INSTRUCTION

CYLINDER, hoist (For breakdown, see figure 242)

1шт.

21

S226021

BRACKET, tube mounting, Start Serial: 6200912

1шт.

22

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2", Start Serial: 6200912

2шт.

23

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Start Serial: 6200912

2шт.

24

S93266

CLAMP

- tube - 1-1/4", Start Serial: 6200912

4шт.
