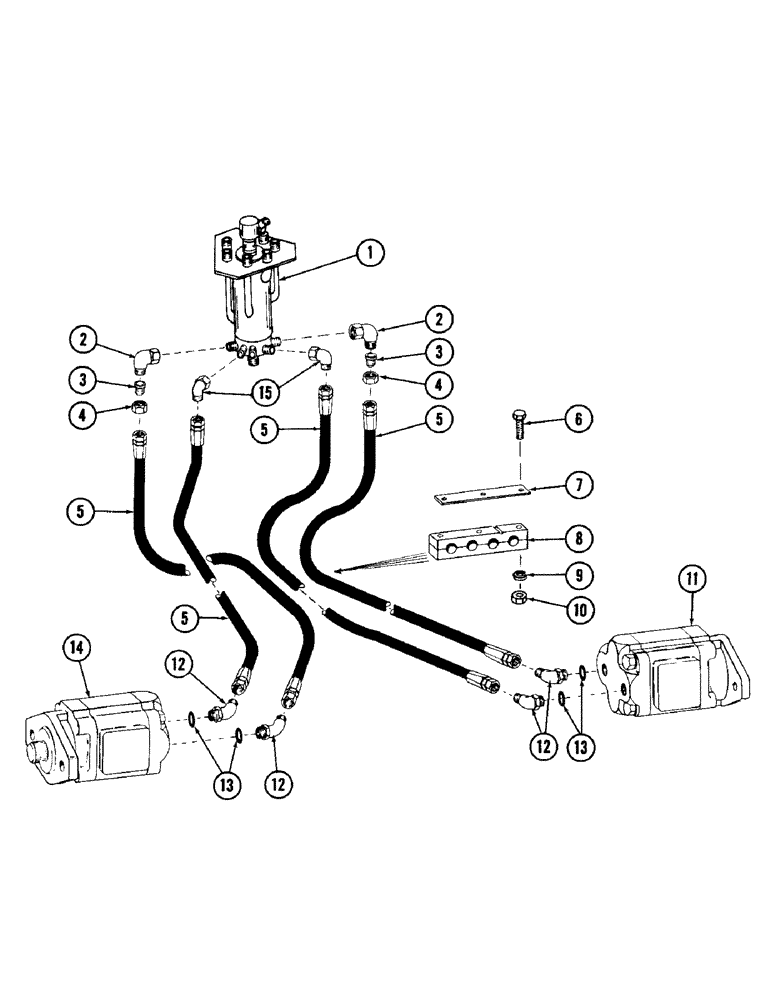

Запчасти Case 880 (226) - TRACK DRIVE MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

SWIVEL, seven port hydraulic (For breakdown, see figure 224)

1шт.

2

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16 - 12 female

2шт.

3

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER, reducing - (1" x 3/4" reduction) 1-1/16" - 12 male, Includes: Ref. 4

2шт.

4

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT, sleeve - (1" tube) - 1-5/16" - 12 male

2шт.

5

S8750

HOSE

0.75" ID x 44.00", High Pressure

3шт.

6

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

7

S79724

BAR

1шт.

8

S209703

BLOCK, wood

1шт.

9

92-8

LOCK WASHER,1/2"

3шт.

10

25-108

NUT,1/2"-13, G5

- 1/2" - 13 NC

3шт.

11

REF

INSTRUCTION

MOTOR, track drive R.H. (For breakdown, see figure 228)

1шт.

12

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree (3/4" tube) 1-1/16" - 12 male x 1-1/16" - 12 male, Includes: Ref. 13

4шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

4шт.

14

REF

INSTRUCTION

MOTOR, track drive L.H. (For breakdown, see figure 228)

1шт.

15

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(1" tube) 90º, 1 1/16"-12, 37º x 1 1/16"-12, 37º Fem Sw

2шт.
