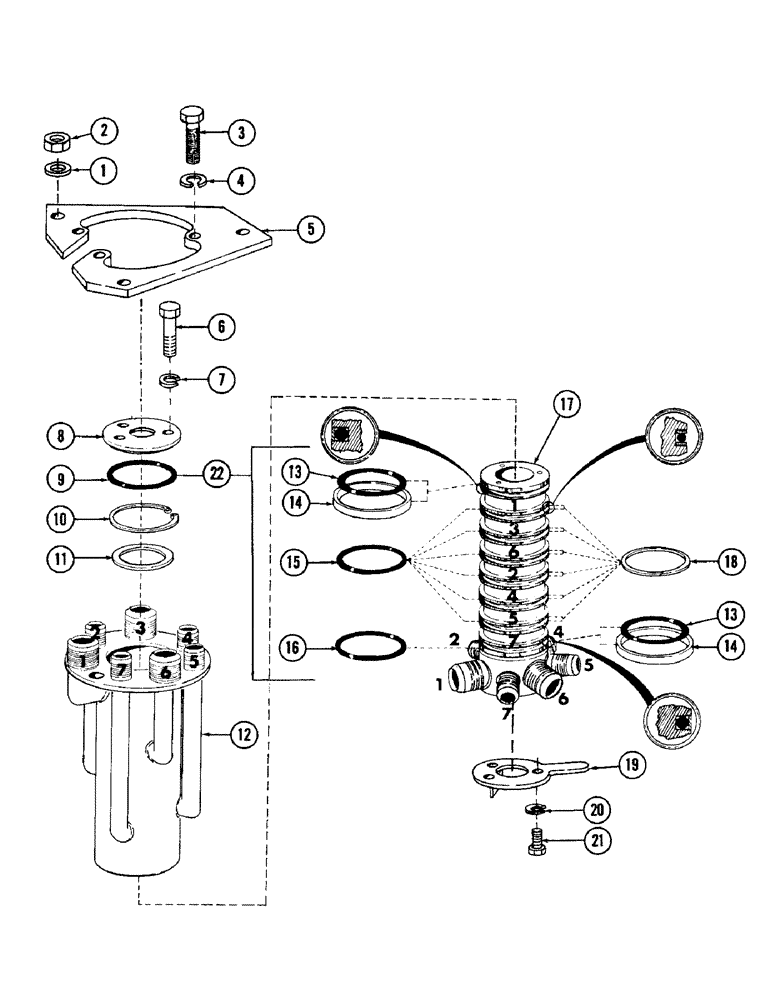

Запчасти Case 880 (224) - 7 PORT SWIVEL AND RELATED PARTS (07) - HYDRAULIC SYSTEM

1

95-5

WASHER,3/8" x 7/8" x .083"

plain - 3/8"

3шт.

2

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8' - 16 NC

3шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

S204101

PLATE

upper - swivel mounting

1шт.

S57973

LINK

SWIVEL, hydraulic - 7 port, Includes: Ref. 6 - 18

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

S203821

CAP

bearing

1шт.

9

S76241

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

10

S15194

SNAP RING

RING, retaining

1шт.

11

S203832

WASHER

bearing

1шт.

12

S57975

ASSEMBLY

HOUSING, swivel

1шт.

13

A26993

O-RING,0.21" Thk x 3.725" ID, -343, Cl 5, 75 Duro

"O" RING

2шт.

Part of seal kit, P/N S210212

1шт.

14

S80705

SEAL

slipper

2шт.

Part of seal kit, P/N S210212

1шт.

15

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING

6шт.

Part of seal kit, P/N S210212

1шт.

16

S76240

O-RING

"O" RING

1шт.

Part of seal kit, P/N S210212

1шт.

17

S57974

ASSEMBLY

SHAFT, swivel

1шт.

18

S76928

WASHER

back up

12шт.

19

S209353

PLATE

lower - swivel mounting

1шт.

20

92-5

LOCK WASHER,5/16"

- 18 NC 5/16"

3шт.

21

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

22

S210212

SEAL KIT

KIT, seal, Includes: Ref. 9 and 13 thru 16)

1шт.
