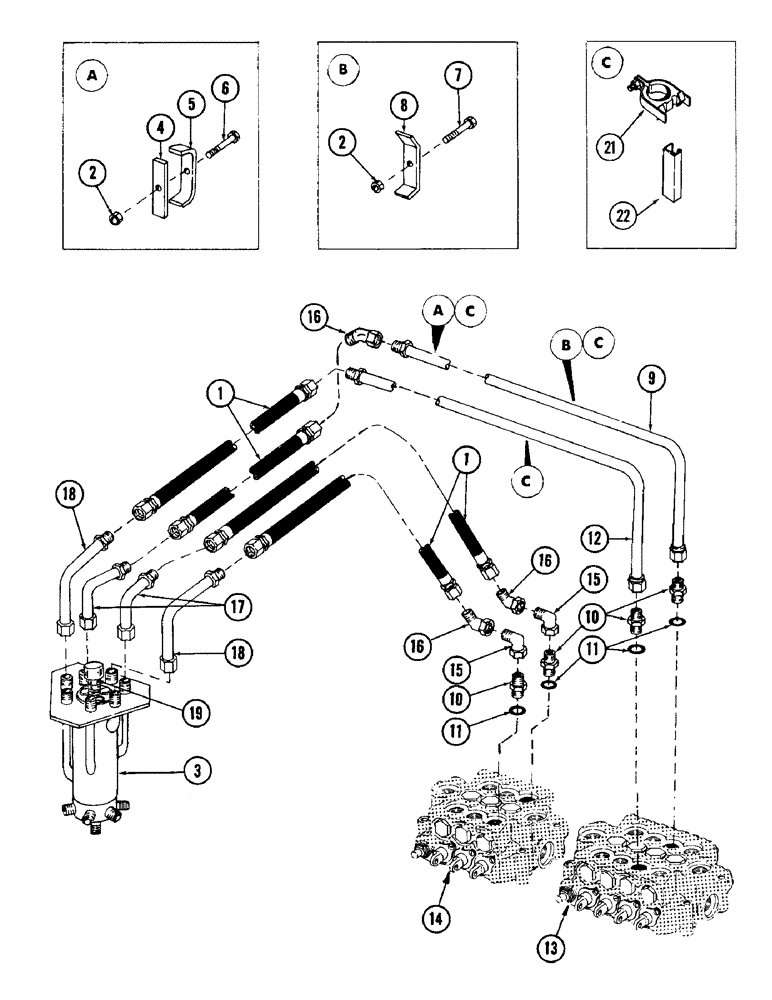

Запчасти Case 880 (222) - MAIN VALVE TO SWIVEL HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

1шт.

2

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Serial Range: 6200000-6200911

2шт.

3

95-7

WASHER,7/16"

flat - 1/2", Serial Range: 6200000-6200911

1шт.

4

S78360

BAR, Serial Range: 6200000-6200911

1шт.

5

S46397

CLAMP

tube, Serial Range: 6200000-6200911

1шт.

6

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Serial Range: 6200000-6200911

1шт.

7

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

CPSW - 1/2' - 13 NC x 2-1/2", Serial Range: 6200000-6200911

1шт.

8

S43859

CLAMP, tube, Serial Range: 6200000-6200911

2шт.

9

S502092

TUBE,1.25" OD x 27, 12.1" L

LINE, hydraulic

1шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 11

4шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

4шт.

12

S502091

LINE, hydraulic 1.25" OD x 44.38, 13.6" L

1шт.

13

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

14

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 198)

1шт.

15

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 male

2шт.

16

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

3шт.

17

S208825

TUBE,1" OD x 3.83, 4.3" L

LINE, hydraulic

2шт.

18

S208826

TUBE,1" OD x 6.12, 4.35" L

LINE, hydraulic

2шт.

19

REF

INSTRUCTION

SWIVEL, inner brake - (For breakdown, see figure 156)

1шт.

20

REF

INSTRUCTION

SWIVEL, seven port hydraulic - (For breakdown, see figure 224)

1шт.

21

S93266

CLAMP

tube - 1-1/4", Start Serial: 6200912

4шт.

22

S98413

SUPPORT

CHANNEL, Start Serial: 6200912

2шт.
