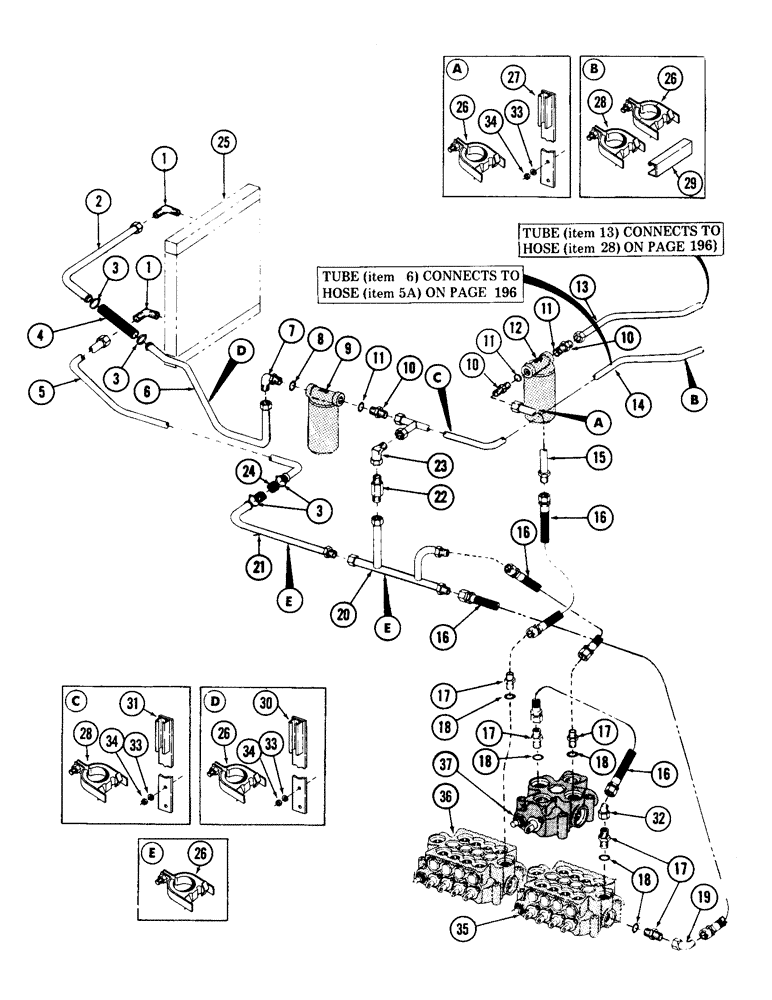

Запчасти Case 880 (210) - MAIN VALVE TO RESERVOIR AND COOLER HYDRAULICS, (USED ON UNITS W/S.N. 6200912 AND AFTER) (07) - HYDRAULIC SYSTEM

1

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree - (1" tube) - 1-5/16" - 12 male x 1" NPT male

2шт.

2

S219427

LINE, hydraulic - cooler outlet 1.25" OD x 12.5, 8" L

1шт.

3

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

4

S202582

LINE

HOSE - (Bulk) - 1-1/4" ID x 22" long

1шт.

5

S219426

LINE, hydraulic - cooler inlet 1.25" OD

1шт.

6

S219803

LINE, hydraulic 1.25" OD

1шт.

7

218-5112

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

- 90 degree adjustable - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degree flared, Includes: Ref. 8

1шт.

8

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

1шт.

9

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see figure 212)

1шт.

10

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER, flared - (1-1/4" tube) - 1-5/8" - 12 male x 1-5/8" - 12 male - 37 degree flared, Includes: Ref. 11

3шт.

11

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

"O" RING - 1.475" ID x 1.711" OD

3шт.

12

REF

INSTRUCTION

FILTER, hydraulic oil (For breakdown, see figure 214)

1шт.

13

S505851

LINE, hydraulic - to oil reservoir 1.25" OD

1шт.

14

S505852

LINE

hydraulic - to main pump

1шт.

15

S220641

LINE, hydraulic

1шт.

16

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

4шт.

17

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 18

4шт.

18

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

4шт.

19

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

20

S219883

TUBE,20, 3.38" L

LINE, hydraulic

1шт.

21

S208827

LINE, hydraulic 1.25" OD x 25, 6" L

1шт.

22

S209396

VALVE

check

1шт.

23

218-5235

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, 37 Degree Fem Sw

- 90 degree swivel - 1-5/8" - 12 male x 1-5/8" - 12 female

1шт.

24

S202582

LINE

HOSE - (bulk) - 1-1/4" ID x 9" long

1шт.

25

S601957

COOLER

oil

1шт.

26

S93266

CLAMP

tube - 1-1/4"

7шт.

27

S225957

BRACKET

1шт.

28

S98324

CLAMP

tube - 1-1/2"

3шт.

29

S98267

BRACKET

2шт.

30

S226000

BRACKET

1шт.

31

S226010

BRACKET

1шт.

32

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

33

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

8шт.

34

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

8шт.

35

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

36

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 198)

1шт.

37

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see page 172)

1шт.
