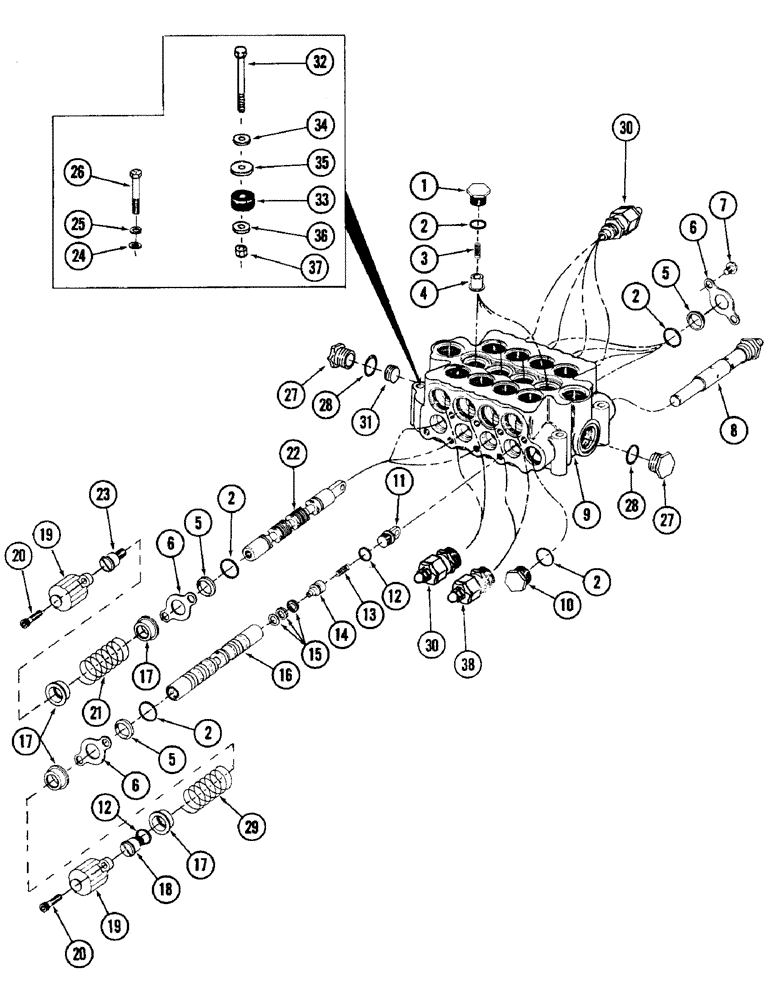

Запчасти Case 880 (200) - 4-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S514772

VALVE

4 spool main control - (used on units with leveler), Includes: Ref. 1 - 23

1шт.

S514773

VALVE

4 spool main control - (Used on units without leveler), Includes: Ref. 1 - 23

1шт.

1

S13714

PLUG

- 1-5/16" - 12 NC

4шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

13шт.

3

S13715

SPRING

4шт.

4

S13716

VALVE POPPET

POPPET

4шт.

5

S62092

WIPER

SEAL, wiper

8шт.

6

S13829

PLATE

seal

8шт.

7

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8"

8шт.

8

REF

INSTRUCTION

CARTRIDGE, main relief valve - set at 2250 PSI - (For breakdown see figure 206)

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

10

S13707

PLUG

- 1-5/16" - 12 NC

1шт.

11

S62289

END

plunger

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

2шт.

13

S62189

SPRING

1шт.

14

S62291

VALVE POPPET

POPPET

1шт.

15

S7886

BACK-UP RING

RING, back up

3шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

17

S62288

SEAT

spring

8шт.

18

S62290

BOLT

CPSW - special

1шт.

19

S62278

CAP

plunger

4шт.

20

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW, socket head - 3/8" - 16 NC x 1"

8шт.

21

S104822

SPRING

- (Replaces S62269)

3шт.

22

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

23

S62292

BOLT

CPSW - special

3шт.

24

195-105

WASHER,7/16"

flat - 1/2", Serial Range: 6200000-6200911

3шт.

25

92-8

LOCK WASHER,1/2"

, Serial Range: 6200000-6200911

3шт.

26

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

CPSW - 1/2" - 13 NC x 3-3/4", Serial Range: 6200000-6200911

3шт.

27

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 28 Hex Hd, 1 5/16"-12 ORB

2шт.

28

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

29

S81915

VALVE SPRING

SPRING, spool - (Used only with ref 16)

1шт.

30

REF

INSTRUCTION

CARTRIDGE, relief valve - set at 2500 PSI - (For breakdown, see figure 204)

6шт.

31

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG, socket head hex - 3/4" NPTF - (Used only with valve S506628)

1шт.

32

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

, Start Serial: 6200912

3шт.

33

S49527

MOUNTING PARTS

MOUNT, lord, Start Serial: 6200912

3шт.

34

95-7

WASHER,7/16"

flat - 1/2", Start Serial: 6200912

3шт.

35

195-2260

WASHER,5/8" x 2" x .095"

flat, Start Serial: 6200912

3шт.

36

92-8

LOCK WASHER,1/2"

, Start Serial: 6200912

3шт.

37

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Start Serial: 6200912

3шт.

38

REF

INSTRUCTION

CARTRIDGE, "R" series port relief - (For breakdown, see figure 204)

2шт.
