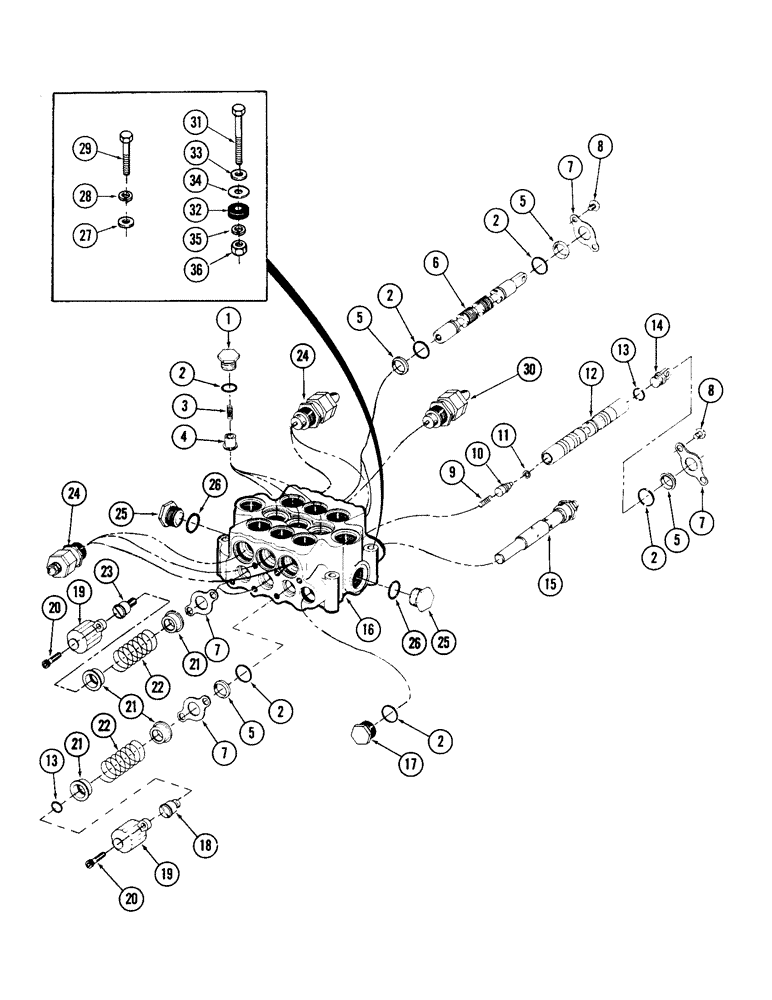

Запчасти Case 880 (198) - 3-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S514771

VALVE

3 spool main control

1шт.

1

S13714

PLUG

- 1-5/16" - 12 NC

3шт.

2

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

10шт.

3

S13715

SPRING

3шт.

4

S13716

VALVE POPPET

POPPET

3шт.

5

S62092

WIPER

SEAL, wiper

6шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER

2шт.

7

S13829

PLATE

seal

6шт.

8

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8"

6шт.

9

S62189

SPRING

1шт.

10

S62291

VALVE POPPET

POPPET

1шт.

11

S84098

BACK-UP RING,1/2" ID x 11/16" OD

back up

1шт.

11a

S6476

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

13

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

2шт.

14

S62289

END

plunger

1шт.

15

REF

INSTRUCTION

CARTRIDGE, main relief valve - set for 2250 PSI - (For breakdown, see figure 206)

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

17

S13707

PLUG

- 1-5/16" - 12 NC

1шт.

18

S62290

BOLT

CPSW - special

1шт.

19

S62278

CAP

plunger

3шт.

20

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW, socket head - 3/8" - 16 NC x 1"

6шт.

21

S62288

SEAT

spring

6шт.

22

S104822

SPRING

- (Replaces S62269)

3шт.

23

S62292

BOLT

CPSW - special

2шт.

24

REF

INSTRUCTION

CARTRIDGE, relief valve - set at 2500 PSI - (For breakdown, see figure 204)

5шт.

25

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 26 Hex Hd, 1 5/16"-12 ORB

2шт.

26

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

27

195-105

WASHER,7/16"

flat - 1/2", Serial Range: 6200000-6200911

3шт.

28

92-8

LOCK WASHER,1/2"

, Serial Range: 6200000-6200911

3шт.

29

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

CPSW - 1/2" - 13 NC x 3-3/4", Serial Range: 6200000-6200911

3шт.

30

REF

INSTRUCTION

CARTRIDGE, "R" series port relief valve - set at 2250 PSI - (For breakdown, see figure 204(1))

1шт.

31

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

, Start Serial: 6200912

3шт.

32

S49527

MOUNTING PARTS

MOUNT, lord, Start Serial: 6200912

3шт.

33

195-105

WASHER,7/16"

flat - 1/2", Start Serial: 6200912

3шт.

34

195-2260

WASHER,5/8" x 2" x .095"

flat, Start Serial: 6200912

3шт.

35

92-8

LOCK WASHER,1/2"

, Start Serial: 6200912

3шт.

36

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Start Serial: 6200912

3шт.
