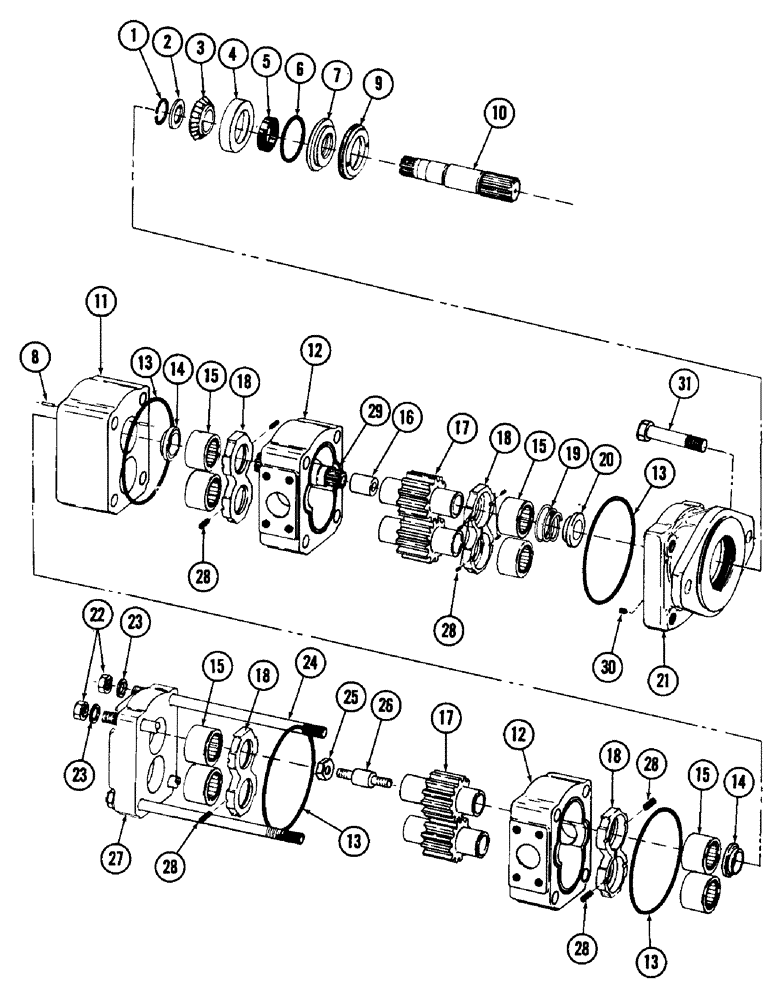

Запчасти Case 880 (196) - MAIN PUMP (07) - HYDRAULIC SYSTEM

S608015

PUMP

main hydraulic - (Supersedes S201616), Includes: Ref. 1 - 30

1шт.

1

B18208

SNAP RING,#100, Ext

1шт.

2

D31950

SPACER

shaft

1шт.

3

D31949

ROLLER BEARING,30.175 mm ID x 21.636 mm

CONE, bearing

1шт.

4

D31948

BEARING CUP,2.5312" OD x 0.6563"

CUP, bearing

1шт.

5

D31945

SEAL

double lip

1шт.

6

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD

1шт.

7

D31946

RETAINER

seal

1шт.

8

138-53

LOCK PIN,1/8" x 1/2", Slotted

Pin, 1/8" x 1/2", Slotted

2шт.

9

D31944

RETAINER

RING, retainer

1шт.

10

D31958

SHAFT

1шт.

11

S63527

CARRIER, bearing

1шт.

12

S101477

HOUSING, gear - (Supersedes S63521)

2шт.

13

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - 4.109" ID x 4.375" OD

4шт.

14

S63528

BUSHING

shaft

2шт.

15

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

BEARING, roller

8шт.

16

S63532

SPACER

2шт.

17

D31943

GEAR SET

- 1-1/2"

2шт.

18

D31955

PLATE

thrust

4шт.

19

D31953

VALVE SPRING

SPRING

1шт.

20

D31952

BUSHING

shaft

1шт.

21

S63512

COVER, shaft end

1шт.

22

25-119

NUT,9/16"-18, G5

9/16" - 18 NC

4шт.

23

D31957

WASHER

flat - 9/16"

4шт.

24

L32328

STUD

4шт.

25

S63533

LOCK NUT

NUT, lock - 3/8"

1шт.

26

S63531

STUD

connecting

1шт.

27

A24842

COVER, port end

1шт.

28

D35673

SEAL

pocket - 6" long (Bulk) -, Serial Range: cut-length

1шт.

29

S63530

SHAFT

connecting

1шт.

30

84-76

SCREW,Hex Socket, 7/16" - 20 x 3/8"

PLUG - 3/8" - 20 NC x 7/16"

1шт.

31

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(Pump mounting) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.
