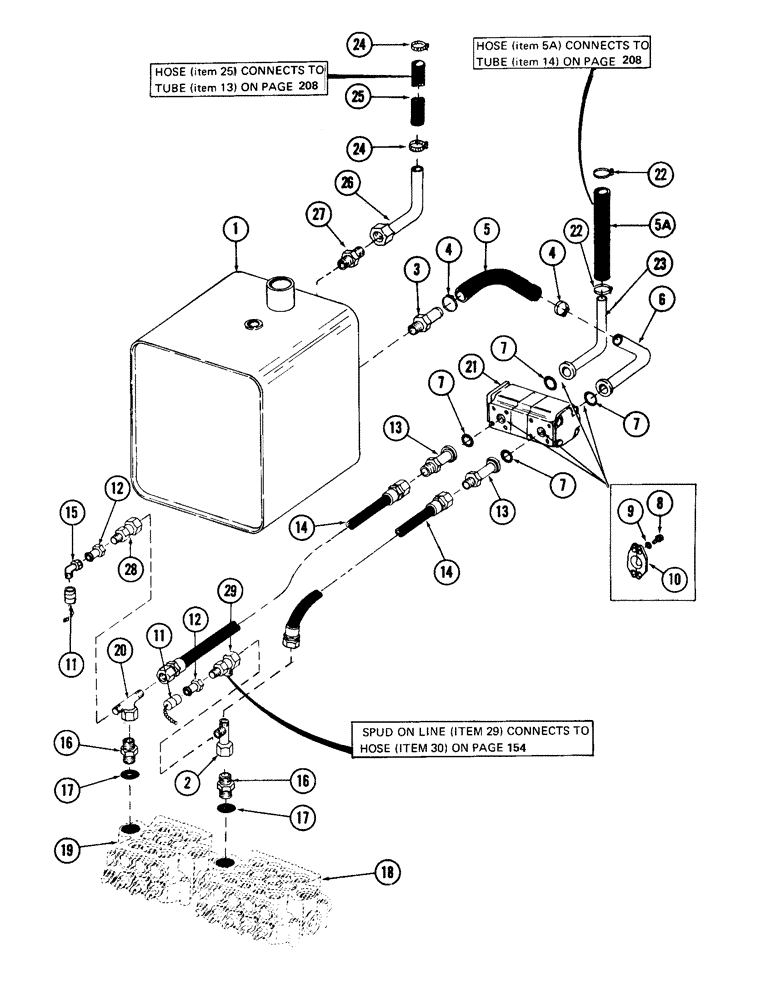

Запчасти Case 880 (194) - RESERVOIR TO PUMP TO MAIN VALVE HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

RESERVOIR, hydraulic oil - (For breakdown, see figure 192)

1шт.

2

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- 1-5/16" - 18 male x 1-5/16" - female x 1-5/16" - 18 male

1шт.

3

S220562

LINE, hydraulic 1.5" OD x 2" L

1шт.

4

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose - 2"

2шт.

5

S28123

HOSE

low pressure - (Bulk) - 1-1/2" ID x 13" long

1шт.

5a

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 23" long

1шт.

6

S222197

TUBE ASSY.,1.5" OD x 13.75" L

LINE, hydraulic

1шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING - 1.484" ID x 1.750" OD

4шт.

8

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

CPSW - 7/16" - 14 NC x 1.750" OD

4шт.

9

92-7

LOCK WASHER,7/16"

16шт.

10

A12301

CLAMP,Half

CLAMP, split flange

4шт.

11

S206608

CAP

dust

2шт.

12

S206607

DISC

ONNECT, quick

2шт.

13

S220517

TUBE ASSY.,1.25" OD x 2" L

LINE, hydraulic

2шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long (With 1-5/16" - 12 female pressed on couplings)

2шт.

15

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

16

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - 1-5/16" - 12 male x 1-5/16" - 12 male

2шт.

17

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

18

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

19

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

20

218-838

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12 Fem Sw Br

- 1-5/16" - 12 male x 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

21

REF

INSTRUCTION

PUMP, main hydraulic (For breakdown, see figure 146)

1шт.

22

214-372

CLAMP,#30, 1.81"-2.06", T-Bolt

hose - 2"

1шт.

23

S502320

LINE, hydraulic 1.25" OD x 5.5, 5.25" L

1шт.

24

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

25

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 17" long

1шт.

26

S219443

LINE, hydraulic

1шт.

27

218-1029

HYD CONNECTOR,1 5/8"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - 1-5/8" - 12 male x 1" - 11-1/2" male

1шт.

28

S220520

TUBE,1" OD x 4.5" L

LINE, hydraulic

1шт.

29

S222106

LINE, hydraulic

1шт.
