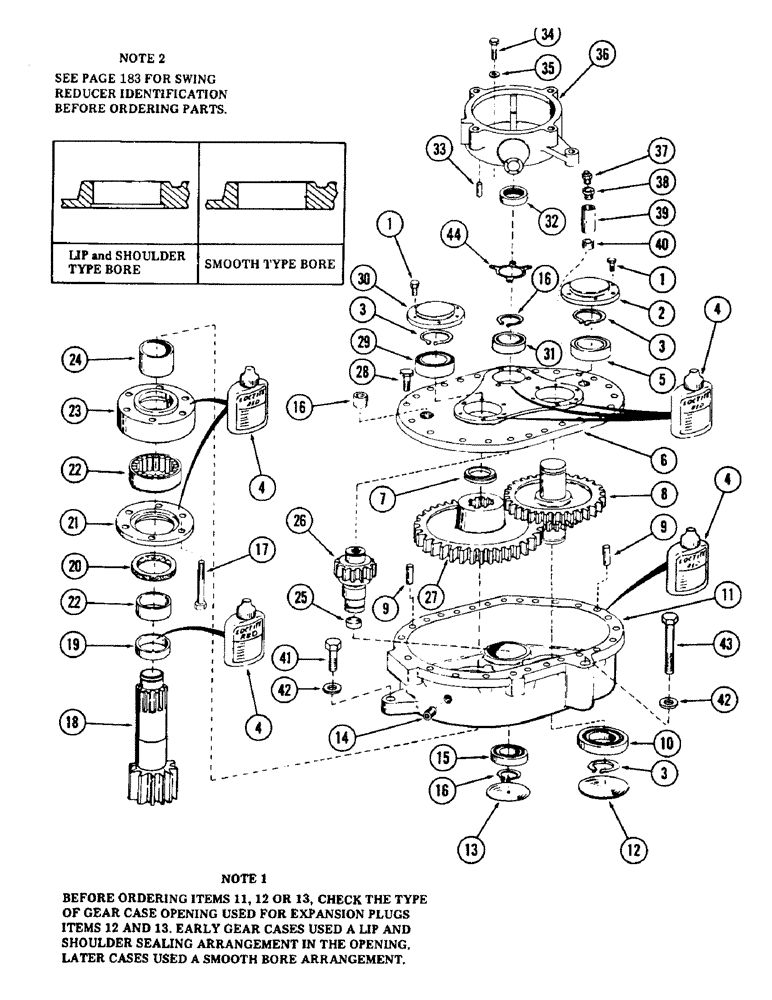

Запчасти Case 880 (186) - SWING REDUCER, (IMPROVED SWING REDUCER USED AS REPLACEMENT) (07) - HYDRAULIC SYSTEM

S606781

REDUCER

SWING REDUCER AND BRAKE HOUSING - (Includes one S953948 swing reducer and one S603824 brake housing), Includes: Ref. 1 - 40

1шт.

1

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

self locking - 5/16" NC x 1" Gr 8

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

4

S96077

SEAL

- 10 CC bottle - (Red) - (Replaces gaskets - substitutes must not be used)

1шт.

5

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

6

S603758

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster

1шт.

9

S64319

CALIPER

DOWEL

2шт.

10

40035

SHAFT,1.5748" ID x 3.5433" OD x 0.9055"

ball

1шт.

11

S613678

CASE

gear - (Used on later units with smooth bore openings)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

11a

S615133

PACKAGE

GEAR CASE KIT - (Required for replacement of early gear case S606331 with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

221-43

PLUG

pipe - 3/8" NPT - (Socket head)

2шт.

12

S114620

PLUG

expansion - (Supersedes 41-58) - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-58

PLUG,Exp, 3 3/4"

expansion - (Used on early units with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

13

S114619

PLUG

expansion - (Superseder 41-48) - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-48

PLUG,Exp, 3"

expansion - (Used on early units with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

14

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

2шт.

15

D47572

BEARING

ball

1шт.

16

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

17

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" NC x 3-1/4" Gr 8

6шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

18

S606286

SHAFT

AND GEAR, output

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

19

S225232

OIL SEAL

RING

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

20

S98415

OIL SEAL

oil

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

21

S508460

RETAINER

oil seal

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

22

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING AND RACE ASSEMBLY

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

23

S508461

RETAINER

roller bearing

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

24

S225231

SPACER

1шт.

Part of output shaft and gear conversion kit, P/N S608519

1шт.

25

41-1015

PLUG,Cup, 15/16"

expansion

1шт.

26

S506736

PINION

AND SHAFT, input

1шт.

27

S603736

GEAR

drive

1шт.

28

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

29

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

30

S214012

CAP

bearing

1шт.

31

S94598

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

32

S64311

OIL SEAL

oil

1шт.

33

S64915

DOWEL

1шт.

34

187-1713

SCREW,Slotted Pan Hd, #6 x 5/16"

BOLT - 3/8" NC x 1-1/4" - (Socket head nylok)

3шт.

35

F18408

WASHER

3шт.

36

S603824

HOUSING

swing brake

1шт.

37

A12928

BREATHER

VENT, breather

1шт.

38

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT male x 1/8" NPT female

1шт.

39

S216625

TUBE,60" L

oil breather

1шт.

40

221-1158

FITTING

NIPPLE - 3/8" NPT x 1" long

1шт.

41

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" NC x 2" Gr 8

1шт.

42

S92341

WASHER

flat - 7/8" - (Hardened steel)

3шт.

43

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" NC x 5-3/4" Gr 8

2шт.

44

S203309

GASKET

brake

1шт.
