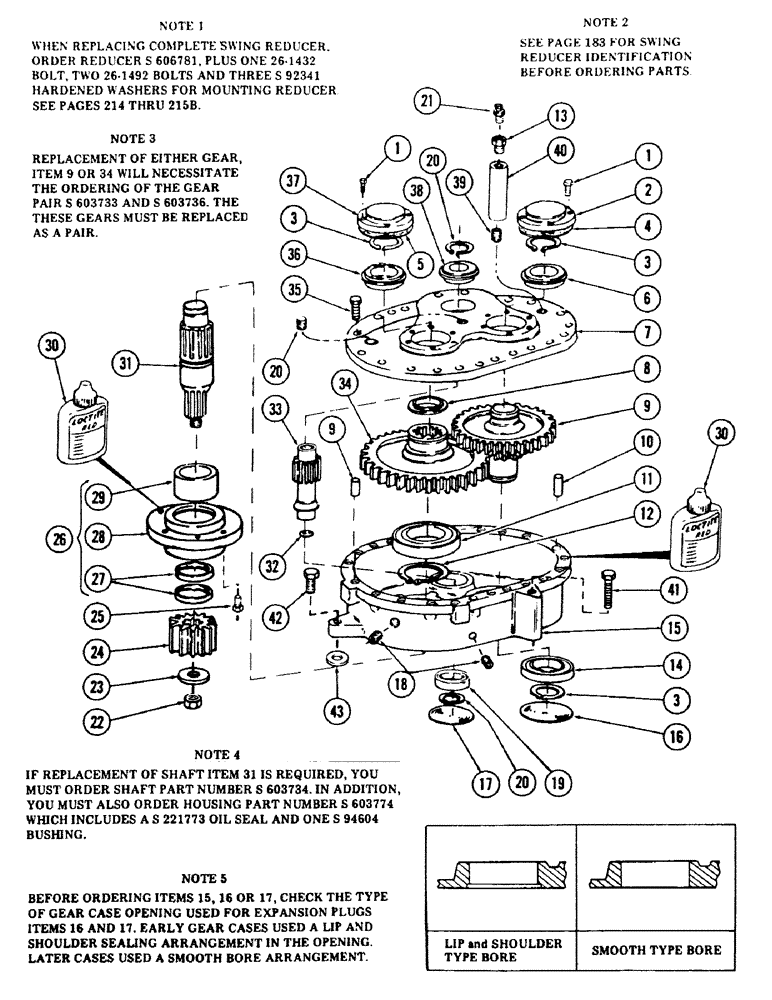

Запчасти Case 880 (184) - SWING REDUCER, (USED AS ORIGINAL EQUIPMENT) (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

REDUCER, swing

1шт.

When replacing complete swing reducer, order reducer S606781, plus 1 26-1432 bolt, 2 26-1492 bolts and 3 S92341 hardened washers for mounting reducer. See figures 214 - 215B.

1шт.

See figure 183 for swing reducer identification before ordering parts.

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S402194

CAP

bearing

1шт.

3

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

4

S103261

GASKET

1шт.

5

S85842

GASKET

1шт.

6

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball - (Replaces S64314)

1шт.

7

S503551

COVER

gear case

1шт.

8

S214014

SPACER

, Serial Range: bearing-gear

1шт.

9

S603733

GEAR

cluster

1шт.

Replacement of either gear, ref 9 or 34 will necessitate the ordering of the gear pair S603733 and S603736. These gears must be replaced as a pair.

1шт.

10

S64319

CALIPER

DOWEL - 3/8" diameter

1шт.

11

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

12

A31227

SNAP RING,#275, Ext

Ring, Snap, #275, Ext

1шт.

13

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" NPT male x 1/8" NPT female

1шт.

14

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

ball

1шт.

15

S613678

CASE

gear - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

15a

S615133

PACKAGE

GEAR CASE KIT - (Required for replacement of early gear case S606331 with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (Socket head)

2шт.

16

S114620

PLUG

expansion - (Supersedes 41-58) - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-58

PLUG,Exp, 3 3/4"

expansion - (Used on early units with lip and shoulder sealing arrangement

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

17

S114619

PLUG

expansion - (Supersedes 41-48) - (Used on later units with smooth bore opening)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

41-48

PLUG,Exp, 3"

expansion - (Used on early units with lip and shoulder sealing arrangement)

1шт.

Before ordering refs 15, 16 or 17, check the type of gear case opening used for expansion plugs refs 16 and 17. Early gear cases used a lip and shoulder sealing arrangement in the opening. Later cases used a smooth bore arrangement.

1шт.

18

221-1843

PLUG

pipe - 3/8" NPT - (Socket head)

5шт.

19

D47572

BEARING

ball

1шт.

20

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

21

L33264

BREATHER

VENT, breather

1шт.

22

S64448

NUT

self locking

1шт.

23

S83676

SPACER

1шт.

24

S502648

PINION

output - 10 tooth

1шт.

25

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- 5/8" NC x 1-3/4" Gr 8

6шт.

26

S608050

HOUSING

1шт.

27

S206136

OIL SEAL

oil

2шт.

28

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

29

S72921

BUSHING

1шт.

30

41-1015

PLUG,Cup, 15/16"

expansion (Replaces 410-1015)

1шт.

31

S37176

PINION

AND SHAFT, input

1шт.

32

S603736

GEAR

drive

1шт.

See figure 183 for swing reducer identification before ordering parts.

1шт.

33

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

23шт.

34

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

35

S214012

CAP

bearing

1шт.

36

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

37

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

- 3/8" - 18 NPT x 1/8" - 24 NPT

1шт.

38

A12928

BREATHER

VENT, breather

1шт.

39

13-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 5

1шт.

40

13-1488

BOLT,Hex, 7/8" - 9 x 5-1/2", Gr 5

CPSW - 7/8" - 9 NC x 5-1/2"

2шт.

41

221-1158

FITTING

NIPPLE - 3/8" - 18 NPT x 1" long

1шт.

42

S316625

TUBE, oil filler and breather

1шт.

43

S85842

GASKET

1шт.

44

S103261

GASKET

1шт.

S608519

KIT

output shaft and gear conversion - (Consists of Refs 17 thru 24 on page 186)

1шт.
