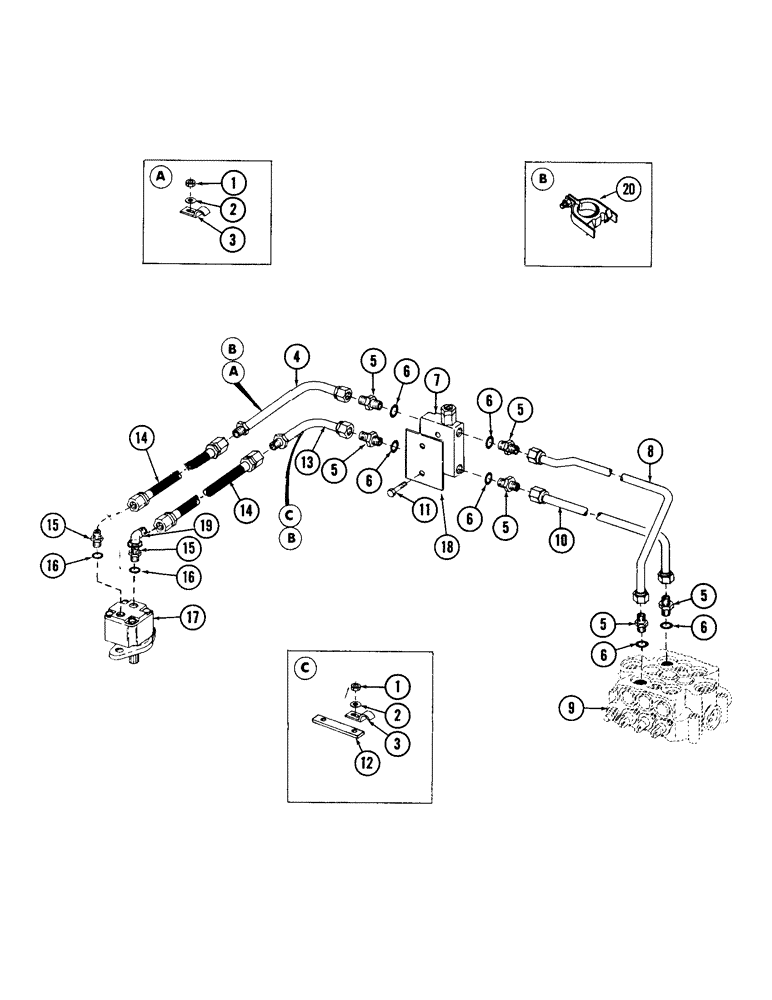

Запчасти Case 880 (176) - SWING MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Serial Range: 6200000-6200911

2шт.

2

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2", Serial Range: 6200000-6200911

2шт.

3

S77469

CLAMP

tube - 1-1/4", Serial Range: 6200000-6200911

2шт.

4

S502077

TUBE,1.25" OD x 14, 5" L

LINE, hydraulic

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter, flared - 1-5/16" - 12 male x 1-5/16" - 12 male, Incl. Ref. 6

6шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

6шт.

7

REF

INSTRUCTION

VALVE, inline relief - (For breakdown, see figure 180)

1шт.

8

S502074

LINE,1.25" OD

hydraulic

1шт.

9

REF

INSTRUCTION

VALVE, 3 spool main - (For breakdown, see figure 198)

1шт.

10

S502075

TUBE,1.25" OD x 17.43, 5.8" L

LINE, hydraulic

1шт.

11

187-1519

CPSW - 3/8" - 16 NC x 7/8"

2шт.

12

S82087

BLOCK

spacer, Serial Range: 6200000-6200911

2шт.

13

S502076

TUBE,1.25" OD x 12.5, 5" L

LINE, hydraulic

1шт.

14

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

15

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., flared - 1-5/16" - 12 male x 1-1/16" - 12 male, Incl. Ref. 16

2шт.

16

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - .924" ID x 1.156" OD

2шт.

17

REF

INSTRUCTION

MOTOR, swing - (For breakdown, see figure 178)

1шт.

18

S82529

PRODUCT, graphic - (Replaces S93763)

1шт.

19

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

45 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female

1шт.

20

S93266

CLAMP

tube - 1-1/4", Start Serial: 6200912

2шт.
