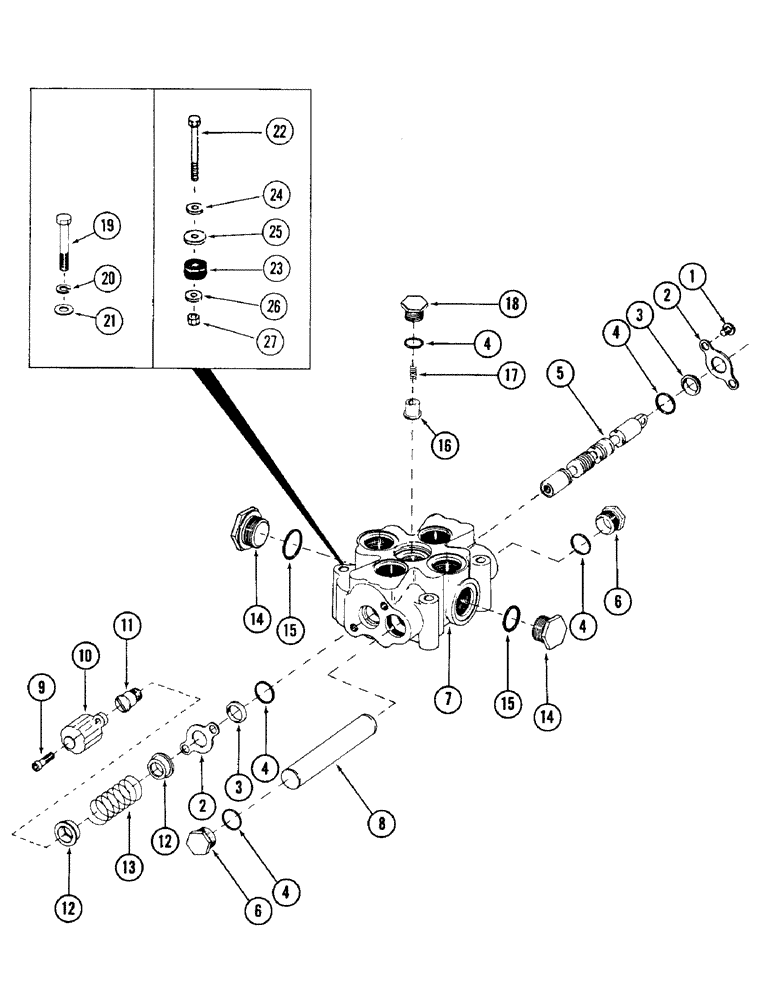

Запчасти Case 880 (172) - 1-SPOOL MAIN CONTROL VALVE (07) - HYDRAULIC SYSTEM

S506848

VALVE, 1-spool main control, Includes: Ref. 1 - 18

1шт.

1

166-25

12 PT SCREW,Flg, 5/16" - 18 x 7/8", Gr 8

CPSW - 3/8" - 16 NC x 7/8"

2шт.

2

S13829

PLATE

seal

1шт.

3

S62092

WIPER

SEAL, wiper

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - .984" ID x 1.250" OD

5шт.

5

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

6

S13707

PLUG

- 1-5/16" - 12 NC

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

8

S62276

PLUG

1шт.

9

61-616

HEX SOC SCREW,3/8"-16 x 1"

CPSW, socket head - 3/8" - 16 NC x 1

2шт.

10

S62278

CAP

plunger

1шт.

11

S62292

BOLT

CPSW - special

1шт.

12

S62288

SEAT

spring

2шт.

13

S104822

SPRING

- (Replaces S62269)

1шт.

14

273916

PLUG,Hex, 1-5/16" - 12 ORB

2шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.1171" ID x 1.403" OD

2шт.

16

S13716

VALVE POPPET

POPPET

1шт.

17

S13715

SPRING

1шт.

18

S13714

PLUG

- 1-5/16" - 12 NC

1шт.

19

113-450

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

CPSW - 1/2" - 13 NC x 3-3/4", Serial Range: 6200000-6200911

3шт.

20

92-8

LOCK WASHER,1/2"

, Serial Range: 6200000-6200911

3шт.

21

195-105

WASHER,7/16"

flat - 1/2", Serial Range: 6200000-6200911

3шт.

22

13-876

BOLT,Hex, 1/2" - 13 x 4-3/4", Gr 5

, Start Serial: 6200912

3шт.

23

S49527

MOUNTING PARTS

MOUNT, lord, Start Serial: 6200912

3шт.

24

98-7

WASHER, flat - 1/2", Start Serial: 6200912

3шт.

25

S98895

WASHER

flat, Start Serial: 6200912

3шт.

26

92-8

LOCK WASHER,1/2"

, Start Serial: 6200912

3шт.

27

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Start Serial: 6200912

3шт.
