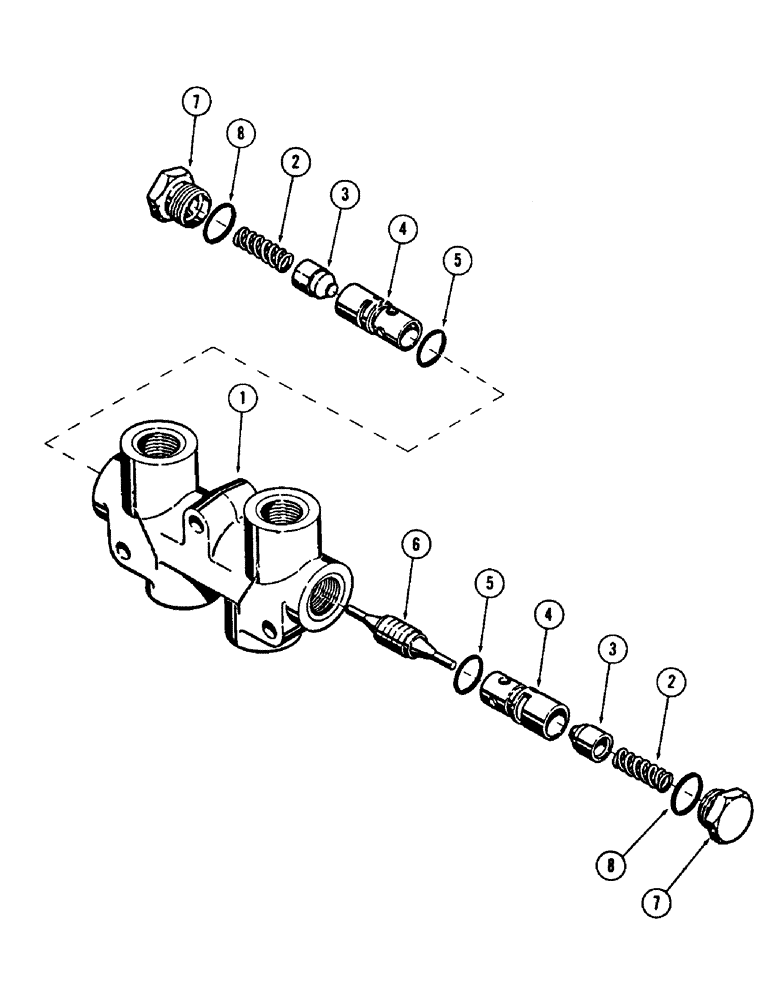

Запчасти Case 880 (170) - LEVELER CHECK VALVE (07) - HYDRAULIC SYSTEM

D47256

VALVE

- check, Parker VCPD08B11T, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

S61961

CHECK VALVE

CARTRIDGE ASSEMBLY, Includes: Ref. 3 - 8

1шт.

2

D48818

SPRING

- poppet

2шт.

D48819

VALVE POPPET

POPPET AND SLEEVE ASSEMBLY, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

POPPET

1шт.

4

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

5

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - o-ring

1шт.

6

D48821

TRANSMISSION

SHUTTLE - valve

1шт.

7

D48822

PLUG

- special

2шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - o-ring

2шт.
