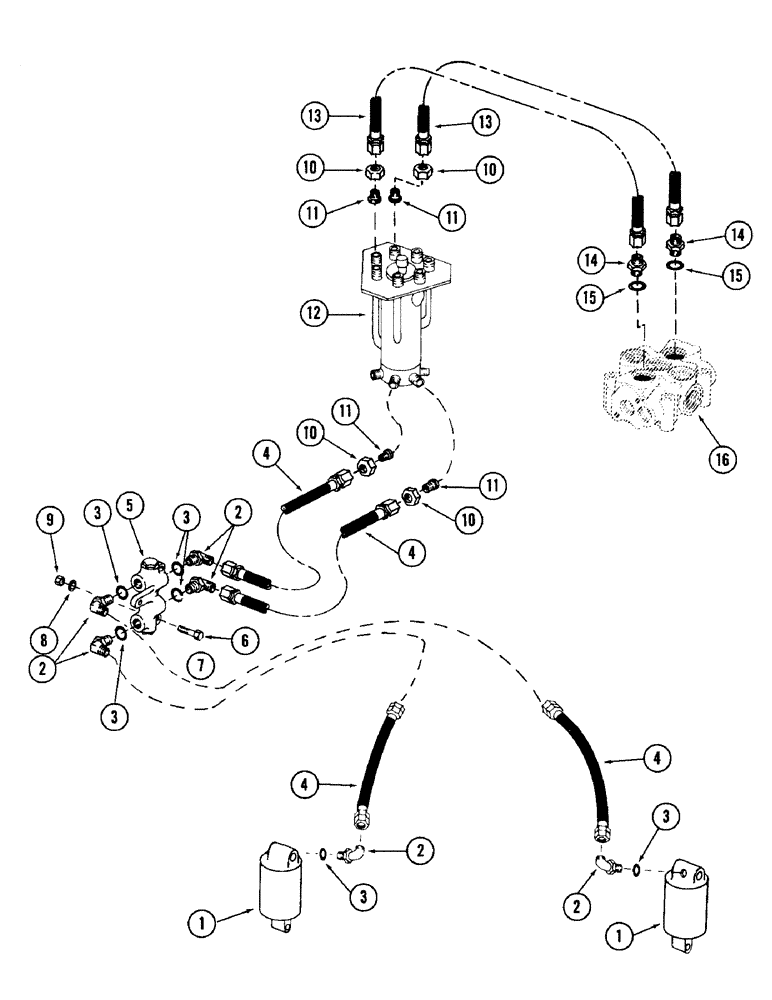

Запчасти Case 880 (168) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6200328 AND AFTER) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, leveler - (For breakdown, see figure 126)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

90 degree adjustable - 3/4" - 16 male x 3/4" - 16 male

6шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

6шт.

4

D39245

HOSE

high pressre - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

4шт.

5

REF

INSTRUCTION

VALVE, leveler check - (For breakdown, see figure 170)

1шт.

6

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

7

95-4

WASHER,1/4"

flat - 1/4"

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

25-104

NUT,1/4"-20, G5

2шт.

10

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube - (3/4" tube) - 1-1/16" - 12 female

4шт.

11

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducer - (3/4" to 1/2" tube reduction) - 3/4" - 16 male

4шт.

12

REF

INSTRUCTION

SWIVEL, seven port hydraulic - (For breakdown, see figure 224)

1шт.

13

S11231

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 68" long - (With 3/4" - 16 female pressed on couplings)

2шт.

14

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - 1-5/16" - 12 male x 7/8" - 14 male

2шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

16

REF

INSTRUCTION

VALVE, main hydraulic - (For breakdown, see figure 172)

1шт.
