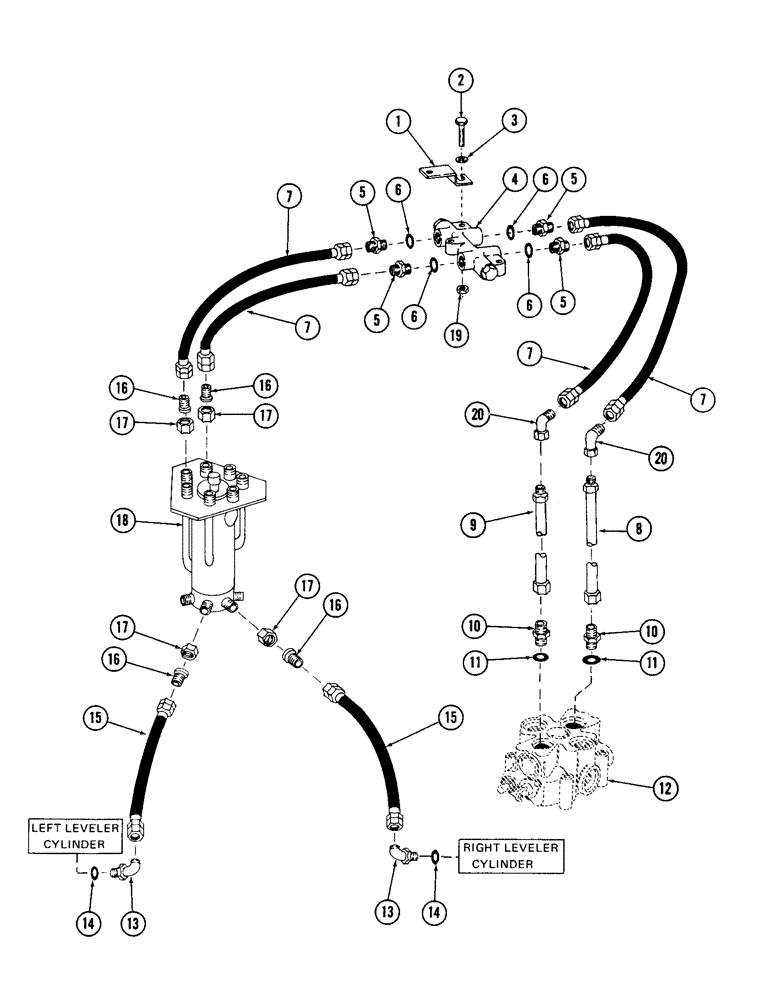

Запчасти Case 880 (166) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6200000 THRU 6200327) (07) - HYDRAULIC SYSTEM

1

S69624

BRACKET, valve mounting

2шт.

2

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

3

196-15

WASHER,17/32" x 1 1/6" x .134"

hardened - 1/2"

2шт.

4

REF

INSTRUCTION

VALVE, leveler check - (For breakdown, see figure 170)

1шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - 3/4" - 16 male x 3/4" - 16 male, Incl. Ref 6

4шт.

7

D39245

HOSE

high pressure - 3/8" ID x 28" long (With 3/4" - 16 female pressed on couplings)

4шт.

8

S506097

LINE, hydraulic 0.625" OD x 11, 3.25" L

1шт.

9

S506096

LINE, hydraulic 0.625" OD x 7, 3.25" L

1шт.

10

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - 1-5/16" - 12 male x 7/8" - 14 male, Includes: Ref. 11

2шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

12

REF

INSTRUCTION

VALVE, 1 spool main - (For breakdown, see figure 172)

1шт.

13

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable - 3/4" - 16 male x 3/4" - 16 male, Includes: Ref. 14

2шт.

15

S11226

HOSE

high pressure - 3/8" ID x 20" long - (With 3/4" - 16 female pressed on couplings)

2шт.

16

218-796

REDUCER,37 Degree, 5/8" x 3/8" Tube

ADAPTER, reducing - (3/4" x 1/2" reduction) 3/4" - 16 male, Includes: Ref. 17

4шт.

17

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube

4шт.

18

REF

INSTRUCTION

SWIVEL, seven port hydraulic - (For breakdown, see figure 224)

1шт.

19

131-4

LOCK NUT,5/16"-18, GB

NUT, self locking - 5/16" - 18 NC

2шт.

20

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree adjustable - 1-5/16" - 12 male x 1-5/16" female

2шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

4шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - .644" ID x .818" OD

2шт.
