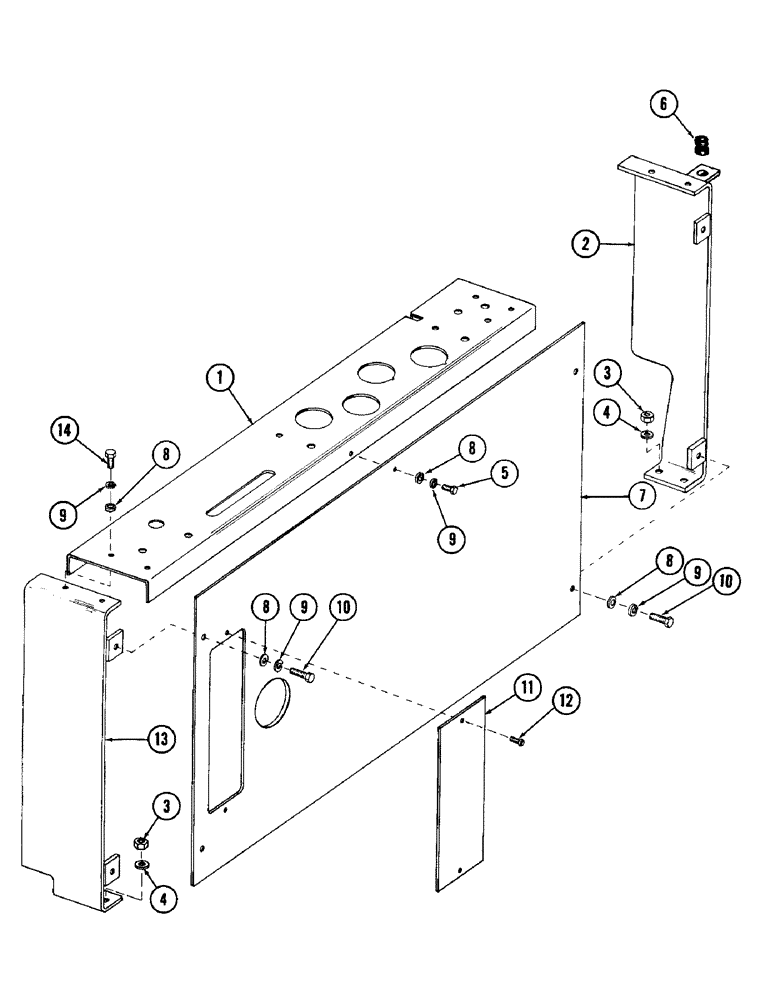

Запчасти Case 880 (092) - INSTRUMENT PANEL AND RELATED PARTS (06) - ELECTRICAL SYSTEMS

1

S603457

PANEL, instrument

1шт.

2

S505704

BRACKET, insturment panel support

1шт.

3

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

4шт.

5

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

6

S68002

GROMMET,7/16" ID x 11/16" Groove Dia

rubber

1шт.

7

S505708

PANEL, side

1шт.

8

195-18

WASHER,1/4"

flat - 1/4"

8шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

11

S92342

DOOR, fuse box

1шт.

12

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW, self tapping - No. 10 - 24 NC x 3/8"

2шт.

13

S505706

BRACKET, instrument panel support

1шт.
