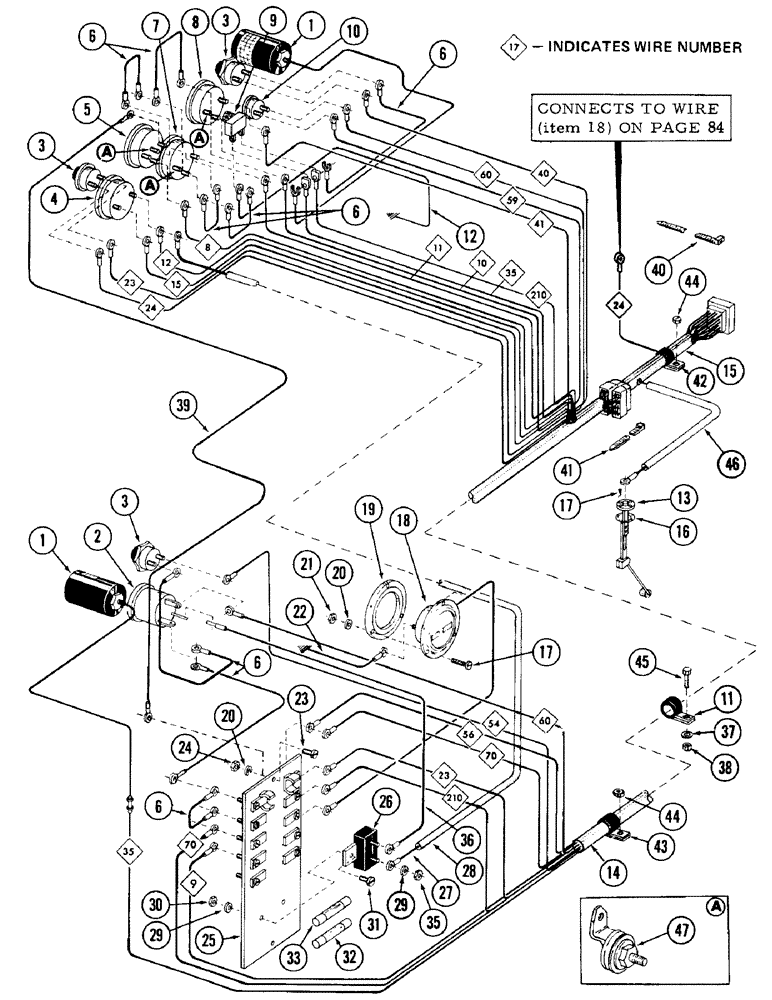

Запчасти Case 880 (088) - 24 VOLT CAB ELECTRICAL SYSTEM, (USED ON UNITS WITH S.N. 6200237 - UP) (06) - ELECTRICAL SYSTEMS

1

S96650

LIGHT

panel

2шт.

2

S76366

SWITCH

ignition

1шт.

D36822

KEY

ignition

1шт.

3

D34924

SWITCH

BUTTON, starter, horn and cold start

3шт.

4

S235629

AMMETER

GAUGE, ammeter (Replaces D45831)

1шт.

5

S27829

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

6

S208230

WIRE, jumper - 12 gauge wire x 4" long

7шт.

7

S27824

ELECTRICAL GAUGE

GAUGE, engine temperature

1шт.

8

S27827

GAUGE

oil pressure

1шт.

9

S16866

SWITCH

panel light

1шт.

10

REF

INSTRUCTION

SWITCH, heater - (Furnished with heater)

1шт.

N9044 Heater Switch

1шт.

11

NLS

NO LONGER SERVICED

1шт.

12

S209480

ELECTRICAL WIRE

WIRE, ground

1шт.

13

S502600

SENDER UNIT

SENDING UNIT, fuel tank

1шт.

14

S223282

HARNESS

wiring

1шт.

15

S223281

ELECTRICAL WIRE

HARNESS, wiring

1шт.

16

S49745

GASKET

GASKET, sending unit

1шт.

17

173-32

SCREW,Sl Rnd Hd, #4 - 40 x 3/4"

machine - No. 4 - 40 NC x 3/4"

8шт.

18

R24646

ELECTRICAL GAUGE

HOURMETER

1шт.

19

A27780

FLANGE

DAMPENER

1шт.

20

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

5шт.

21

129-13

NUT,#4-40

3шт.

22

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL

1шт.

23

171-64

SCREW, machine - No. 6-32 NC x 3/4"

2шт.

24

129-5

NUT,#6-32

2шт.

25

S213686

HOLDER

fuse

1шт.

26

S49918

BREAKER

circuit

1шт.

27

S221599

ELECTRICAL WIRE

WIRE ASSEMBLY, ground

1шт.

28

S62256

LOOM

- (Bulk) - 18" long

1шт.

29

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

129-7

NUT,Hex, #10 - 24

- No. 10 - 24 NC

2шт.

31

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

machine - No. 10-24 NC x 5/8"

2шт.

32

223-15

FUSE,15 Amp, Type 3AG

- 15 amp

3шт.

33

223-34

FUSE,7 1/2 Amp, Type 3AG

1шт.

34

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

35

129-27

NUT,Hex, #10 - 32

- No. 10 - 32 NF

2шт.

36

S208228

WIRE, jumper - 12 gauge wire x 9" long

1шт.

37

95-3

WASHER,#12

flat - 1/4"

1шт.

38

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

39

S209787

ELECTRICAL WIRE

WIRE, jumper - 14 gauge wire x 20" long

1шт.

40

S73387

CLIP

TIE, cable

1шт.

41

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.

42

T42284

CLAMP

1шт.

43

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

44

131-6

LOCK NUT,3/8"-16, GC

NUT - 1/2" - 13 NC

2шт.

45

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

46

S62256

LOOM

- (Bulk) - 43" long

1шт.

47

S108406

RESISTOR

3шт.
