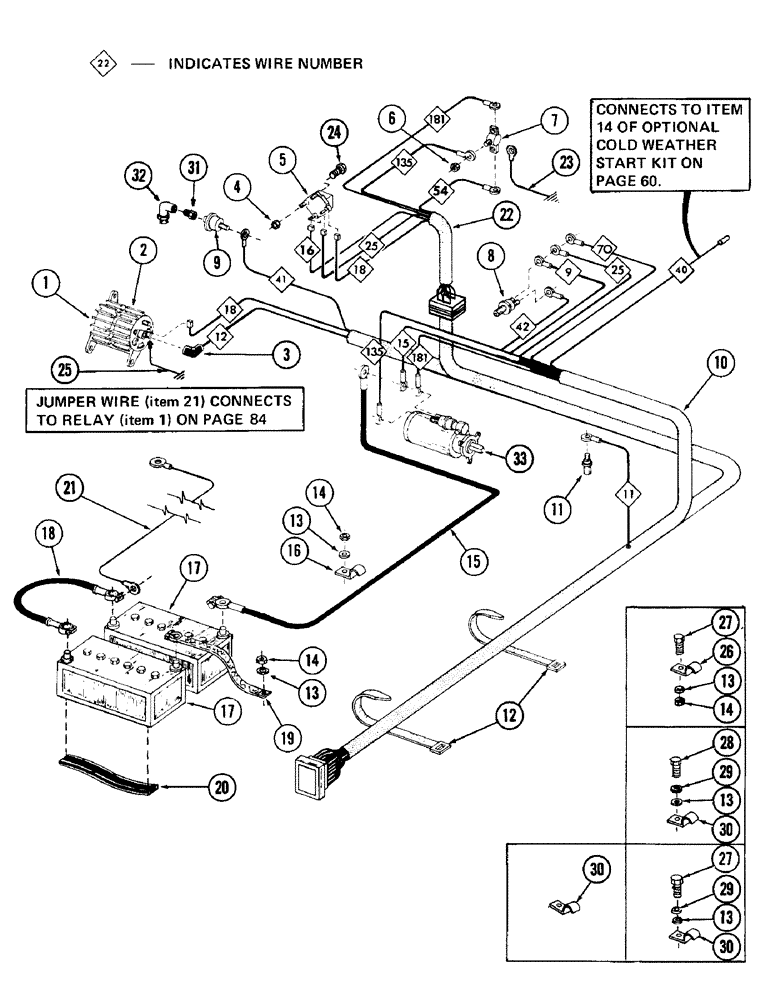

Запчасти Case 880 (086) - 24 VOLT ENGINE ELECTRICAL SYSTEM, (USED ON UNITS WITH S.N. 6200237 - UP) (06) - ELECTRICAL SYSTEMS

1

A41361

PULLEY

alternator

1шт.

2

REF

INSTRUCTION

ALTERNATOR - (For breakdown, see figure 44)

1шт.

3

S64612

BOOT

rubber

1шт.

4

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

3шт.

5

R36789

REGULATOR

voltage - (Replaces A75072)

1шт.

6

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

7

A18501

SOLENOID SWITCH

RELAY SWITCH

1шт.

8

S63884

SWITCH

pressure

1шт.

9

S27826

SENDER UNIT

SENDING UNIT, oil pressure

1шт.

10

S605482

HARNESS, engine wiring

1шт.

11

S27825

TEMPERATURE SENDER

SENDING UNIT, engine temperature

1шт.

12

S73387

CLIP

TIE, cable

1шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

1шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

1шт.

15

S223621

CABLE, battery assembly

1шт.

16

49774

CLAMP

- (Replaces S16170)

1шт.

17

L13308

DRY BATTERY

- dry type - 12 volt

2шт.

18

S221673

CABLE, battery jump

1шт.

19

S96720

CABLE

battery ground

1шт.

20

S223590

STRIP, rubber

4шт.

21

S223613

WIRE, jumper - 12 gauge wire x 50" long

1шт.

22

S223878

HARNESS

engine wiring

1шт.

23

S223612

WIRE, jumper

1шт.

24

13-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

CPSW

3шт.

25

S223611

WIRE, jumper

1шт.

26

49885

CLAMP

1шт.

27

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

29

92-5

LOCK WASHER,5/16"

1шт.

30

L12296

CLAMP

1шт.

31

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 3/8" NPT x 1/8" NPT

1шт.

32

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

33

REF

INSTRUCTION

STARTER

1шт.
