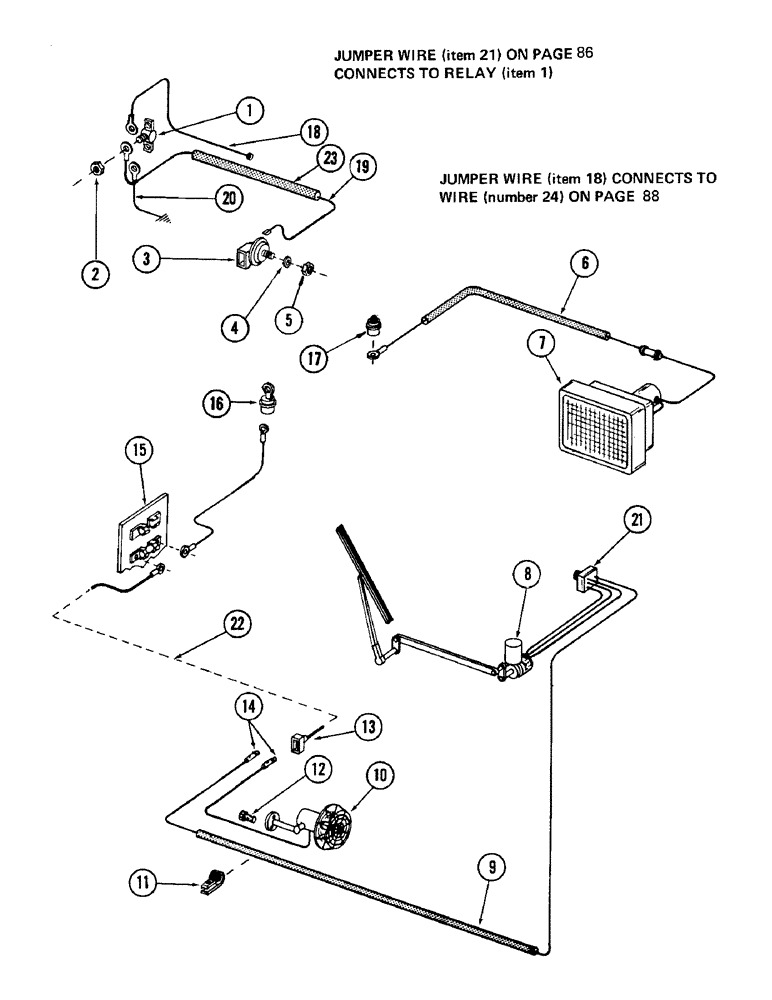

Запчасти Case 880 (084) - HEATER, DEFORSTER AND WIPER ELECTRICAL SYSTEMS, 12 VOLT AND 24 VOLT (06) - ELECTRICAL SYSTEMS

1

A18501

SOLENOID SWITCH

RELAY

1шт.

2

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

3

S203189

HORN

1шт.

4

195-16

WASHER,#12

flat - 1/4"

1шт.

5

S64752

NUT

- 1/4" - 20 NC

1шт.

6

S62256

LOOM

- (Bulk) - 30" long

1шт.

7

REF

INSTRUCTION

HEATER, hot water - (For breakdown, see figure 116)

1шт.

8

REF

INSTRUCTION

MOTOR AND SWITCH, wiper - (Furnished with cab)

1шт.

9

S62256

LOOM

- (Bulk) - 70" long

1шт.

10

S222133

FAN

defroster - 24 volt

1шт.

S85807

FAN

defroster - 12 volt

1шт.

11

A61275

CLIP

CLAMP

5шт.

12

S40799

SCREW

machine - 1/4" - 20 NC x 1/2"

3шт.

13

223-27

FUSE,20 Amp, Type 3AG

CONNECTOR

1шт.

14

223-191

TERMINAL CONNECTOR,14 - 16

TERMINAL

2шт.

15

S213686

HOLDER

fuse

1шт.

16

S76366

SWITCH

ignition

1шт.

17

REF

INSTRUCTION

SWITCH, heater - (Furnished with heater, see figure 114)

1шт.

18

S223611

WIRE, jumper - 12 gauge wire x 6" long

1шт.

19

S223610

WIRE, jumper - 12 gauge wire x 8" long

1шт.

20

S223612

WIRE, jumper - 12 gauge wire x 6" long

1шт.

21

A22228

SWITCH

wiper

1шт.

22

S221693

WIRE

1шт.

23

S62256

LOOM

- (Bulk) - 22" long

1шт.
