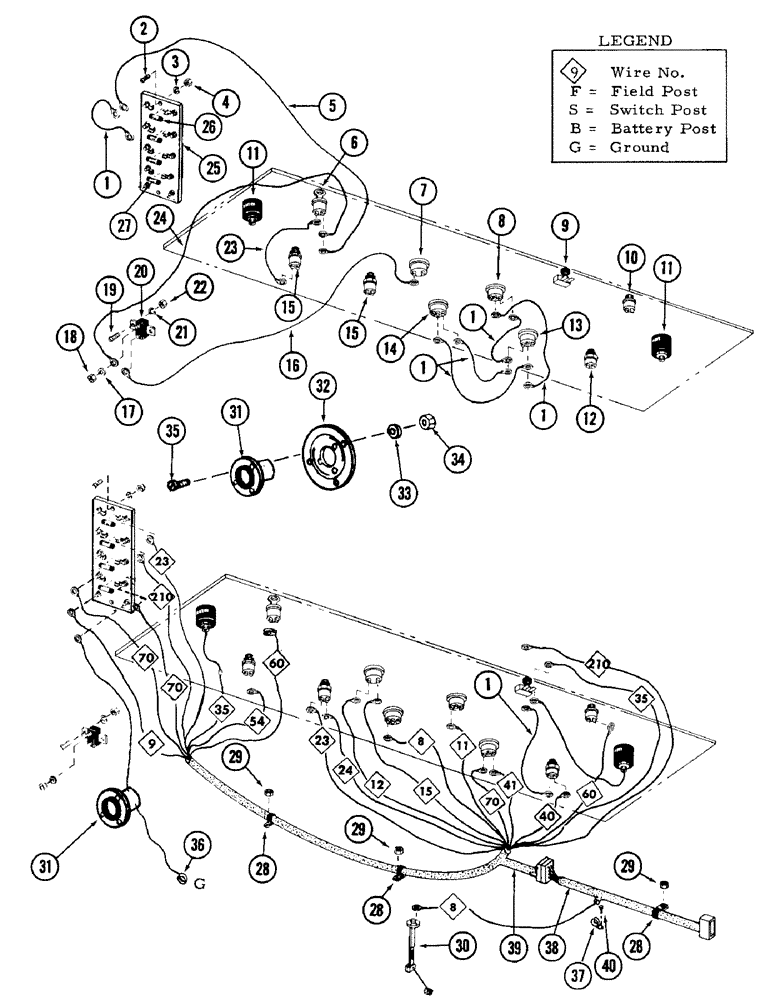

Запчасти Case 880 (082) - 12 VOLT CAB ELECTRICAL SYSTEM, (USED ON UNITS WITH S.N. 6200000 THRU 6200236) (06) - ELECTRICAL SYSTEMS

1

S208230

WIRE, jumper - 12 gauge wire x 4" long

6шт.

2

171-64

SCREW, machine - No. 6 - 32NC x 3/4"

2шт.

3

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

4

129-5

NUT,#6-32

2шт.

5

S208228

WIRE, jumper - 12 gauge wire x 9" long

1шт.

6

S76366

SWITCH

ignition

1шт.

D36822

KEY

ignition

1шт.

7

S235629

AMMETER

GAUGE, ammeter (Replaces D45831)

1шт.

8

S27824

ELECTRICAL GAUGE

GAUGE, engine temperature

1шт.

9

S16866

SWITCH

panel light

1шт.

10

REF

INSTRUCTION

SWITCH, heater - (Furnished with heater)

1шт.

11

D35815

LAMP

LIGHT, panel

2шт.

12

REF

INSTRUCTION

KIT, cold weather starting - (For breakdown, see figure 94)

1шт.

13

S27827

GAUGE

oil pressure

1шт.

14

S27829

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

15

D34924

SWITCH

BUTTON, horn and starter

2шт.

16

S221599

ELECTRICAL WIRE

WIRE, jumper - 14 gauge wire x 20" long

1шт.

17

193-99

LOCK WASHER,Int Tooth, #10

WASHER, flat - No. 10

1шт.

18

129-27

NUT,Hex, #10 - 32

- No. 10 - 32 NC

1шт.

19

173-99

SCREW,Sl Rnd Hd, #10 - 24 x 5/8"

machine - No. 10-24NC x 5/8"

2шт.

20

S49918

BREAKER

circuit

1шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

129-7

NUT,Hex, #10 - 24

- No. 10 - 24 NC

2шт.

23

S28874

WIRE, jumper - 12 gauge wire x 5" long

1шт.

24

S206156

WIRE, jumper - 16 gauge wire x 8" long

1шт.

25

S213686

HOLDER

fuse

1шт.

26

223-15

FUSE,15 Amp, Type 3AG

3шт.

27

223-34

FUSE,7 1/2 Amp, Type 3AG

1шт.

28

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3шт.

29

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" - 16 NC

3шт.

30

D502600

SENDING UNIT, tank

1шт.

31

R24646

ELECTRICAL GAUGE

HOURMETER

1шт.

32

D35079

DAMPER

DAMPENER

1шт.

33

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

3шт.

34

129-13

NUT,#4-40

3шт.

35

173-32

SCREW,Sl Rnd Hd, #4 - 40 x 3/4"

machine - No. 4 - 40 NC x 3/4"

3шт.

36

223-61

TERMINAL CONNECTOR,14 - 16

TERMINAL

1шт.

37

S77479

CLAMP,1/8", Insul, 1/4" Bolt

5шт.

38

S223281

ELECTRICAL WIRE

HARNESS, cab wiring

1шт.

39

S223282

HARNESS

cab wiring

1шт.

40

S48576

NUT

speed

5шт.
