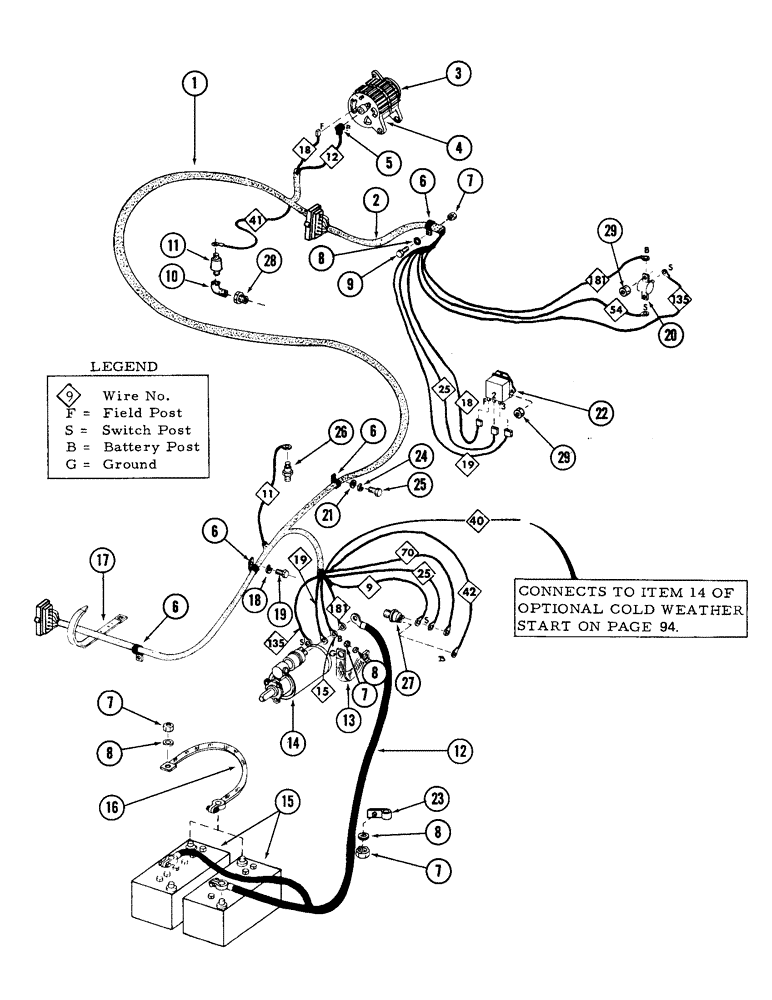

Запчасти Case 880 (080) - 12 VOLT ENGINE ELECTRICAL SYSTEM, (USED ON UNITS WITH S.N. 6200000 THRU 6200236) (06) - ELECTRICAL SYSTEMS

1

S603080

HARNESS, engine wiring

1шт.

2

S220887

HARNESS

engine wiring

1шт.

3

S615449

KIT

PULLEY, alternator - (Replaces S219716)

1шт.

4

S84908

ALTERNATOR

- (For breakdown, see figure 74)

1шт.

5

S64612

BOOT

rubber

1шт.

6

T42284

CLAMP

3шт.

7

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

5шт.

8

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

5шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

10

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Pipe 90º, 1/8"-27 Female x 1/8"-27 Male

1шт.

11

S27826

SENDER UNIT

SENDING UNIT, oil pressure

1шт.

12

S212587

CABLE, battery

1шт.

13

S228983

STRAP

ground (Replaces S81455)

1шт.

14

REF

INSTRUCTION

STARTER - (For breakdown, see figure 55A thru 62)

1шт.

15

A38411

DRY BATTERY

- dry type; 12 volt

2шт.

16

A36368

STRAP

CABLE, ground

2шт.

17

S73387

CLIP

TIE, cable

1шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

20

S26663

SOLENOID

RELAY

1шт.

21

95-3

WASHER,#12

flat - 1/4"

1шт.

22

D45158

REGULATOR

voltage

1шт.

23

49774

CLAMP

- (Replaces S16170)

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

26

S27825

TEMPERATURE SENDER

SENDING UNIT, engine temperature

1шт.

27

S63884

SWITCH

pressure

1шт.

28

221-1085

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 1/8" - 27 NPT female x 3/8" - 18 NPT male

1шт.

29

S48576

NUT

speed

4шт.
