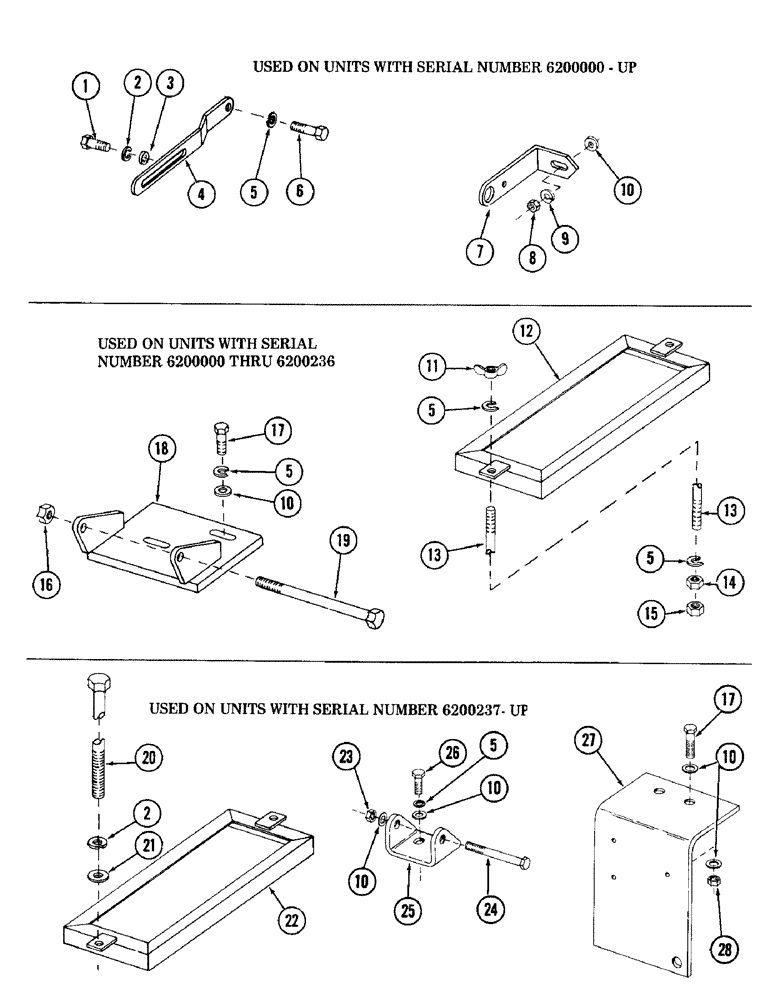

Запчасти Case 880 (078) - ELECTRICAL SYSTEM MOUNTING PARTS (06) - ELECTRICAL SYSTEMS

1

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Replaces 13-816) Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

3

195-521

WASHER,5/16", SAE

flat - 9/16" (Replaces 195-33)

1шт.

4

A59098

STRAP

BRACKET, alternator adjusting

1шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

CPSW - 3/8 - 16 NC x 7/8"

1шт.

7

S203190

BRACKET

horn mounting

1шт.

8

25-104

NUT,1/4"-20, G5

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

10шт.

11

129-410

WING NUT,3/8"-16

NUT, wing

2шт.

12

S202780

BRACKET

battery hold-down

2шт.

13

S78386

STUD

4шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

4шт.

15

25-146

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" - 16 NC

4шт.

16

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

18

S505695

BRACKET, alternator mounting

1шт.

19

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

20

13-8160

CAPSCREW,Hex, 1/2" - 13 x 10"

CPSW - 1/2" - 13 NC x 10"

4шт.

21

S95569

WASHER

flat - 1/2"

4шт.

22

S507587

BRACKET

battery hold-down

2шт.

23

131-463

NUT,3/8"-16

NUT, self locking - NC 3/8"-16

1шт.

24

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

CPSW - 3/8" - 16 NC x 3"

1шт.

25

A160391

BRACKET

alternator mounting - (Replaces A38492)

1шт.

26

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

27

S223882

BRACKET, regulator mounting

1шт.

28

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" NC

2шт.
