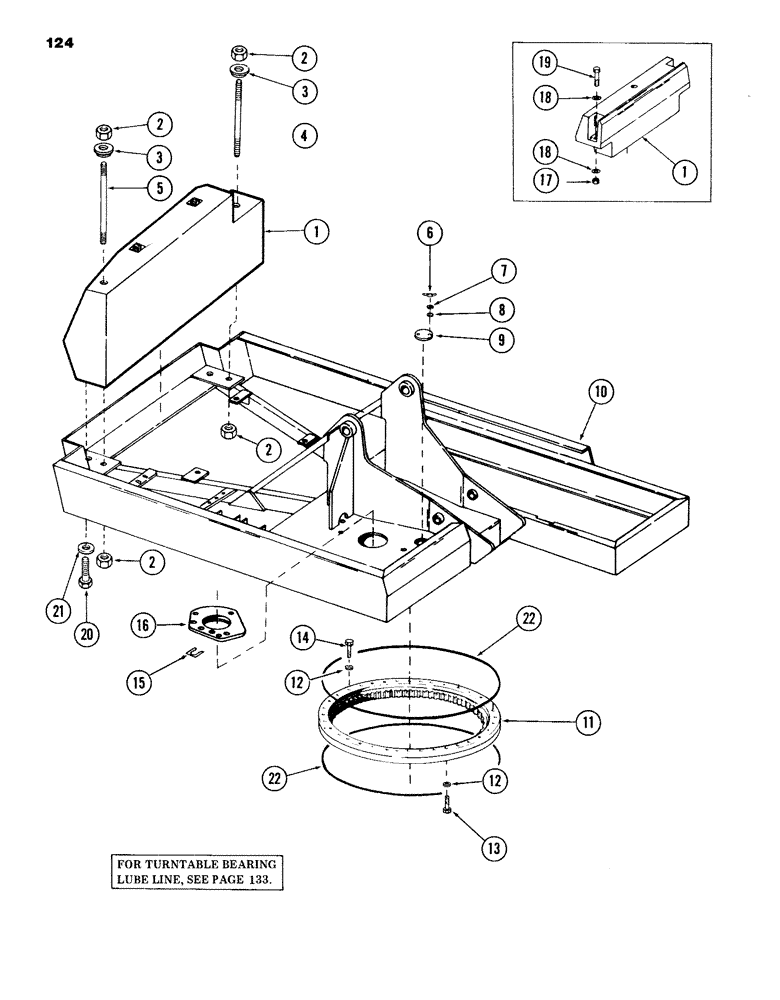

Запчасти Case 980B (124) - TURNTABLE, COUNTERWEIGHT, BEARING AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

1

S604051

COUNTERWEIGHT - (used on units prior to PIN 6204051)

1шт.

S955720

COUNTERWEIGHT - (used on units with PIN 6204051 and after)

1шт.

2

131-454

LOCK NUT,1 1/4"-7

NUT - lock 1-1/4" NC hex - (used on units with PIN 6204051 and after)

4шт.

3

S114254

INSERT - (used on units with PIN 6204051 and after)

2шт.

4

S112659

STUD - 1-1/4" x 25" NC, short - (used on units with PIN 6204051 and after)

1шт.

5

S114099

STUD - 1-1/4" x 31-1/2" NC, long - (used on units with PIN 6204051 and after)

1шт.

6

129-410

WING NUT,3/8"-16

NUT - wing 3/8" NC

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

195-103

WASHER,5/16"

- flat 3/8"

2шт.

9

S76664

COVER

1шт.

10

S607617

TURNTABLE ASSY - (used on units prior to PIN 6204051)

1шт.

S612339

TURNTABLE ASSY - (used on units with PIN 6204051 and after)

1шт.

S607617 TURNTABLE USES S516475 LUBRICATOR ASSEMBLY...SEE 1187C FELLER/BUNCHER CATALOG 8-4401...FIGURE 9-20...

1шт.

11

S508669

BEARING ASSY

BEARING - turntable

1шт.

Contact service for information regarding special tool required for installation of turntable bearing, ref 11.

1шт.

S508670 is Heavy Duty Bearing (3/4" higher then std.)

1шт.

Bearing - the turntable bearing 980c is same as

1шт.

12

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat (hardened)

1шт.

13

26-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

bearing to flange Hex, 3/4"-10 x 2", G8

36шт.

14

26-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 8

bearing to turntable Hex, 3/4"-10 x 2 1/4", G8

36шт.

15

S84889

SHIM,.003" Thk

(0.07 mm), Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

(0.18 mm), Reducer plate to turntable .007" Thk

1шт.

S77916

SHIM,.005" Thk

(0.12 mm), Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

(0.25 mm), Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

(0.40 mm) Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

(0.76 mm), Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

(1.52 mm), Reducer plate to turntable .060" Thk

1шт.

16

S506965

SUPPORT

PLATE - swing reducer mounting

1шт.

17

131-82

NUT,1"-8

NUT - lock 1" NC - (used on units prior to PIN 6204051

2шт.

18

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- flat 1-1/16" - (used on units prior to PIN 6204051)

4шт.

19

13-1684

BOLT - 1" x 5-1/4" NC (Grade 5) (used on units prior to PIN 6204051 and after) Hex, 1"-8 x 5 1/4", G5

2шт.

20

13-2040

BOLT,Hex, 1-1/4" - 7 x 2-1/2", Gr 5

- 1-1/4" x 2-1/2" NC (Grade 5) (used on units with PIN 6204051 and after)

2шт.

21

196-65

WASHER,1 3/8" x 2 1/2" x .180", HDN

- flat 1-1/4" (used on units with PIN 6204051 and after)

2шт.

22

S105067

SEAL

- (BULK) - 2 pieces - 156" long

2шт.

THE LUBRICANT CAN IS PART NUMBER 331-437

1шт.

980b p/n S508669.

1шт.
