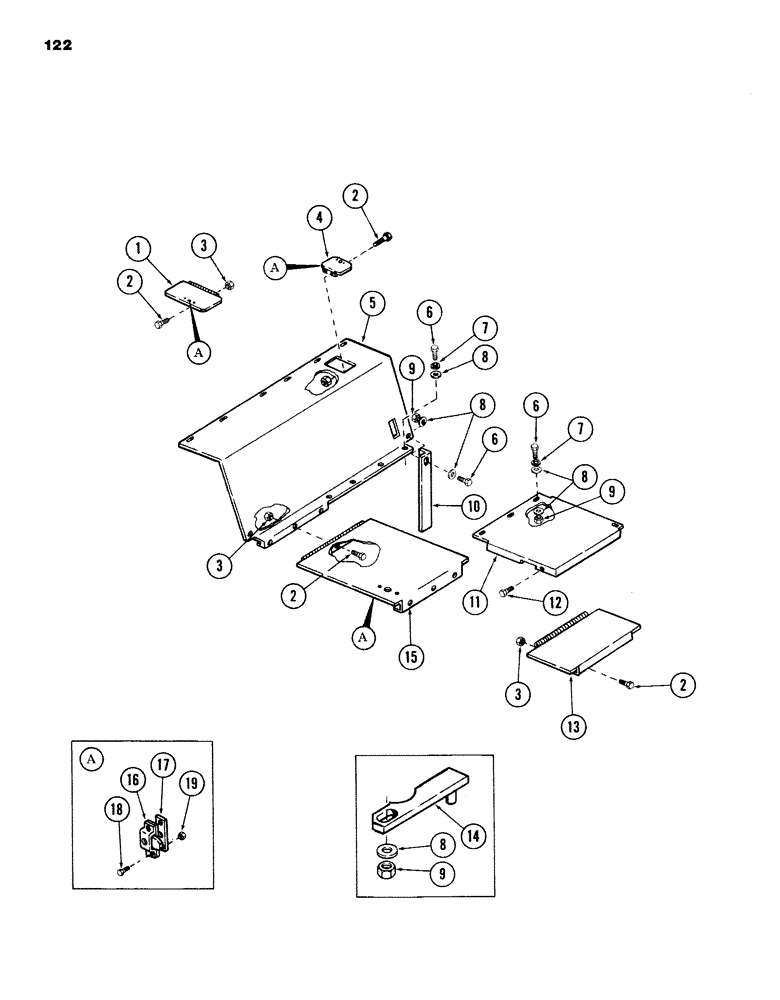

Запчасти Case 980B (122) - VANDAL GUARD, (USED WITH TURNTABLE SHROUDING), (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S514012

DOOR - over radiator

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

3

131-463

NUT,3/8"-16

NUT - lock 3/8" NC hex

1шт.

4

S237952

DOOR - hydraulic oil tank

1шт.

5

S614275

SHROUD

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

8

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

1шт.

9

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex (Grade 5)

1шт.

10

S237962

BRACE - Support for door

1шт.

11

S508790

SHROUD - over main control valves

1шт.

12

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

13

S514011

DOOR - fuel tank filler

1шт.

14

S238730

BRACKET - main control, Serial Range: valves-turntable

1шт.

15

S614274

DOOR - battery and fuel tank

1шт.

16

S110414

LOCK

- door

3шт.

17

S114236

SPACER

3шт.

Replaced by 195-516

1шт.

18

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

19

131-461

LOCK NUT,1/4"-20

NUT - lock 1/4" NC hex

6шт.
