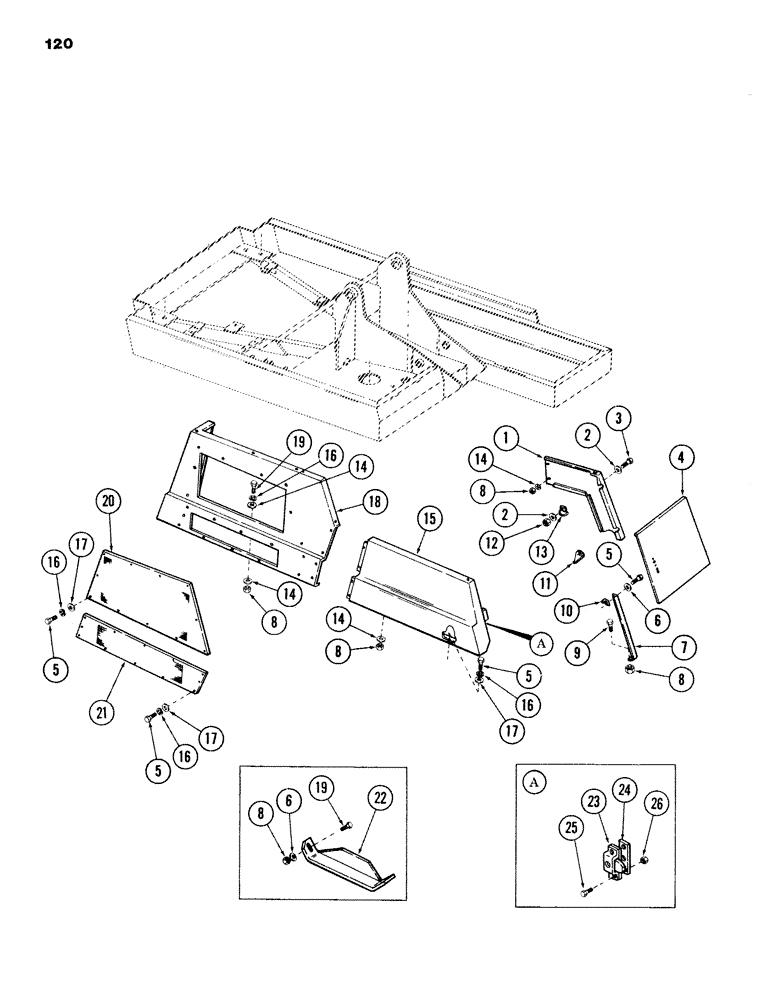

Запчасти Case 980B (120) - ENGINE SHROUD, (RIGHT SIDE AND FRONT), (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S514082

SHROUD - door mounting

1шт.

2

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- hardened

8шт.

3

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

S613375

DOOR - front

1шт.

S233024

PIN

1шт.

S81895

COTTER PIN

PIN - hair

1шт.

5

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

6

196-15

WASHER,17/32" x 1 1/6" x .134"

5шт.

7

S231481

BRACE - side (LEFT)

1шт.

8

131-70

NUT,1/2"-13, GB

NUT- lock 1/2" NC hex

1шт.

9

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

1шт.

10

S231480

BRACKET

1шт.

11

S221453

BRACKET

- lower door hinge

1шт.

12

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

1шт.

13

S221455

BRACKET

- upper door hinge

1шт.

14

S95569

WASHER

- flat 1/2"

1шт.

15

S613376

SHROUD - side panel (RIGHT FRONT)

1шт.

16

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

1шт.

18

S955421

SHROUD - side panel (RIGHT HAND)

1шт.

19

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

20

S604403

GRILLE - upper

1шт.

21

S604404

GRILLE - lower

1шт.

22

S236434

BRACE - (fuel tank side)

1шт.

23

S110414

LOCK

- door

1шт.

24

S114236

SPACER

1шт.

Replaced by 195-516

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

131-461

LOCK NUT,1/4"-20

NUT - lock 1/4" NC hex

2шт.

27

S115083

KEY

- shroud (NOT ILLUSTRATED)

1шт.
