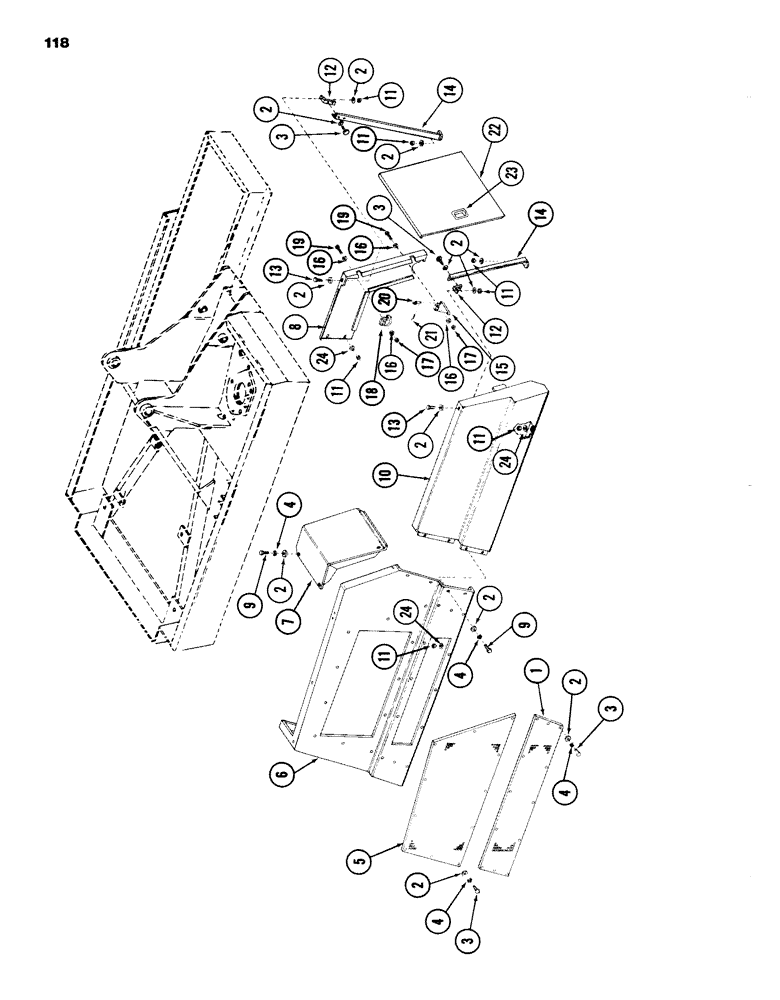

Запчасти Case 980B (118) - ENGINE SHROUD, (RIGHT SIDE AND FRONT), (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

S604404

GRILLE

2шт.

2

196-15

WASHER,17/32" x 1 1/6" x .134"

flat - 1/2"

1шт.

3

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

4

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

S604403

GRILLE

2шт.

6

S953407

SHROUD, side panel right rear

1шт.

7

S506958

SHROUD

1шт.

(Also used after S/N 6204051

1шт.

8

S508793

SHROUD, front door mounting

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

S606796

SHROUD, side panel right front

1шт.

11

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

1шт.

12

S231480

BRACKET

1шт.

13

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

14

S231481

BRACE

2шт.

15

S221453

BRACKET

lower door mounting

1шт.

16

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat hardened - 3/8"

8шт.

17

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

18

S221455

BRACKET

upper door mounting

1шт.

19

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

S223024

PIN

1шт.

21

A70250

PIN

hair

1шт.

22

S606809

DOOR, front, Includes: Ref. 23

1шт.

23

S219346

LATCH

1шт.

24

S95569

WASHER

flat - 1/2"

1шт.
