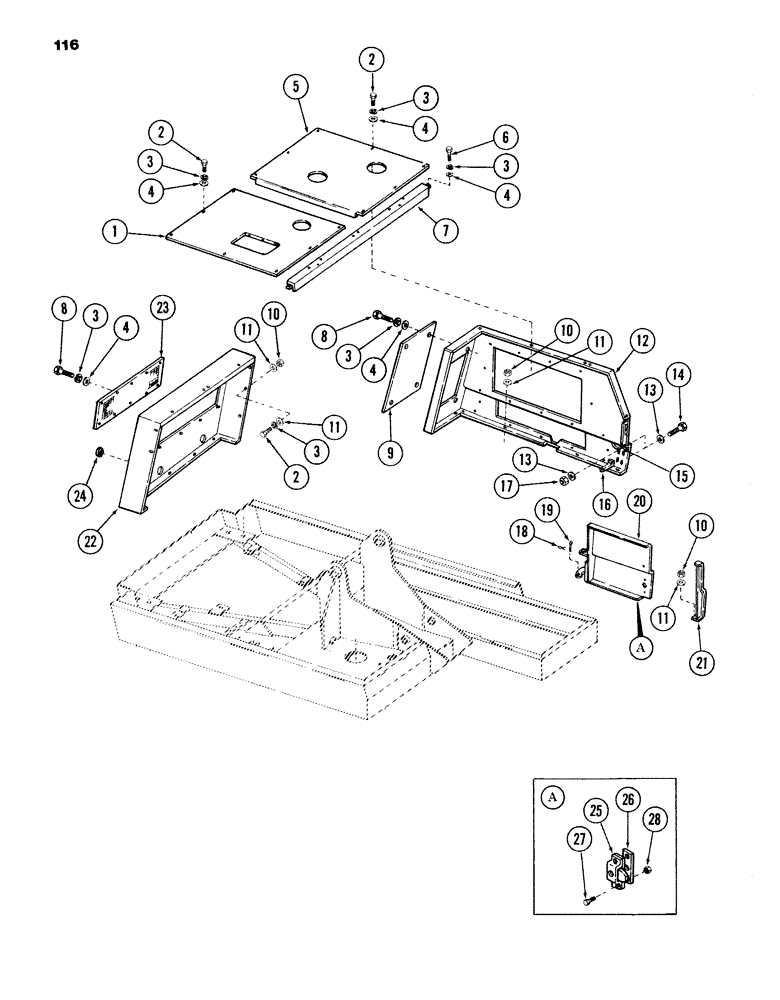

Запчасти Case 980B (116) - ENGINE SHROUD, (LEFT SIDE, REAR, AND TOP), (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

S611748

COVER - top (RIGHT)

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

3

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat 1/2"

1шт.

5

S611749

COVER - top (LEFT)

1шт.

6

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

7

S508792

CHANNEL

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- 1/2" x 1-3/8" NC hex (Grade 5)

1шт.

9

S513392

DOOR - back (on left side panel)

1шт.

10

131-70

NUT,1/2"-13, GB

NUT - lock 1/2" NC hex

1шт.

11

S95569

WASHER

- flat 1/2"

1шт.

12

S955420

SHROUD - side panel (LEFT HAND)

1шт.

13

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- hardened

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

15

S232592

BRACKET - upper door mounting

1шт.

16

S221455

BRACKET

- lower door mounting

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - lock 3/8" NC hex

1шт.

18

A70250

PIN

- hair

1шт.

19

S223024

PING

1шт.

20

S613374

DOOR - side (LEFT)

1шт.

21

S513399

POST

1шт.

22

S955436

SHROUD - rear

1шт.

23

S613302

GRILLE - rear shroud

1шт.

24

S105894

CAP

PLUG - rear shroud

2шт.

25

S110414

LOCK

- door

2шт.

26

S114236

SPACER

2шт.

Replaced by 195-516

1шт.

27

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

28

131-461

LOCK NUT,1/4"-20

NUT - lock 1/4" NC hex

4шт.

29

S115083

KEY

shroud - (NOT ILLUSTRATED)

1шт.
