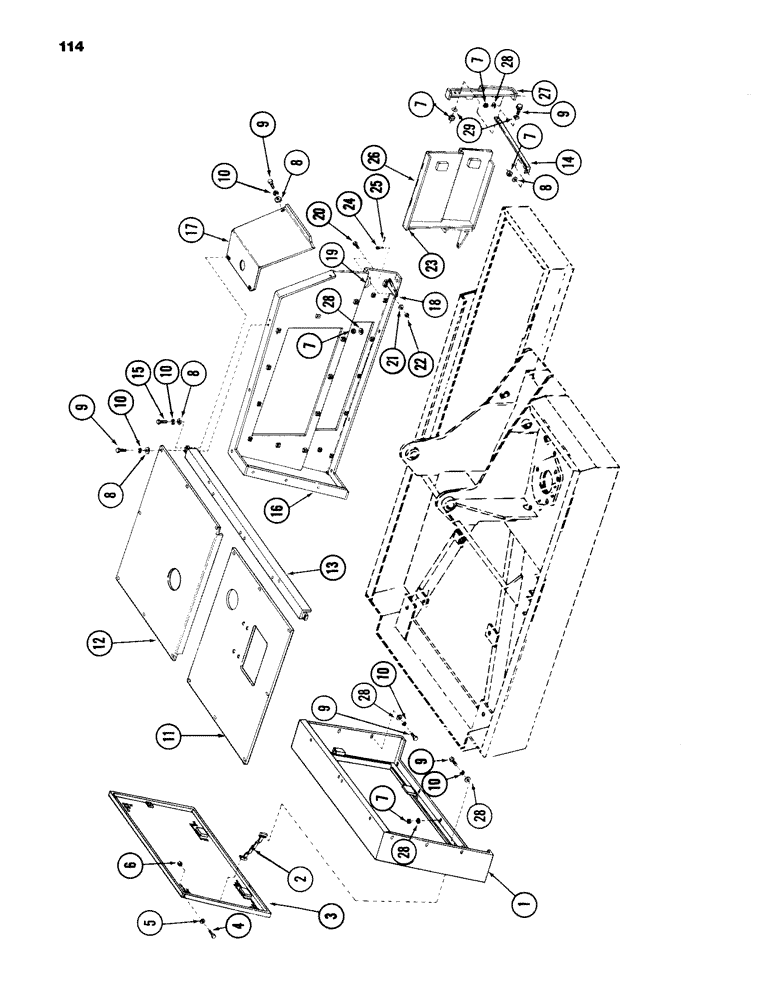

Запчасти Case 980B (114) - ENGINE SHROUD (LEFT SIDE, REAR AND TOP), (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

S606812

FRAME, rear door

1шт.

2

S219460

BRACE

door support R.H.

1шт.

S219473

BRACE

door support L.H.

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

10шт.

86625061

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

10шт.

195-101

WASHER,3/16"

flat - 1/4"

10шт.

3

S606810

DOOR

rear

1шт.

S219346

LATCH

2шт.

4

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

CPSW - 3/8" - 16 NC x 2"

2шт.

5

195-103

WASHER,5/16"

flat - 3/8"

2шт.

6

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

7

131-70

NUT,1/2"-13, GB

NUT, self locking - 1/2" - 13 NC

1шт.

8

195-15

WASHER,#12

flat - 1/2"

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

S606831

COVER, top right

1шт.

12

S606830

COVER, top left

1шт.

13

S508792

CHANNEL

1шт.

14

S238493

BRACE - (Replaces S226365)

1шт.

15

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

16

S953406

SHROUD, side panel left rear

1шт.

17

S510701

SHROUD

1шт.

18

S221455

BRACKET

lower door mounting

1шт.

19

S232592

BRACKET, upper door mounting

1шт.

20

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

flat hardened - 3/8"

8шт.

22

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

23

S96360

GUIDE, door

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

2шт.

131-52

NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

24

S223024

PIN

1шт.

25

A70250

PIN

hair

1шт.

26

S606801

DOOR

1шт.

S219346

LATCH

2шт.

27

S508765

POST

1шт.

28

S95569

WASHER

flat - 1/2"

1шт.

29

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

2шт.
