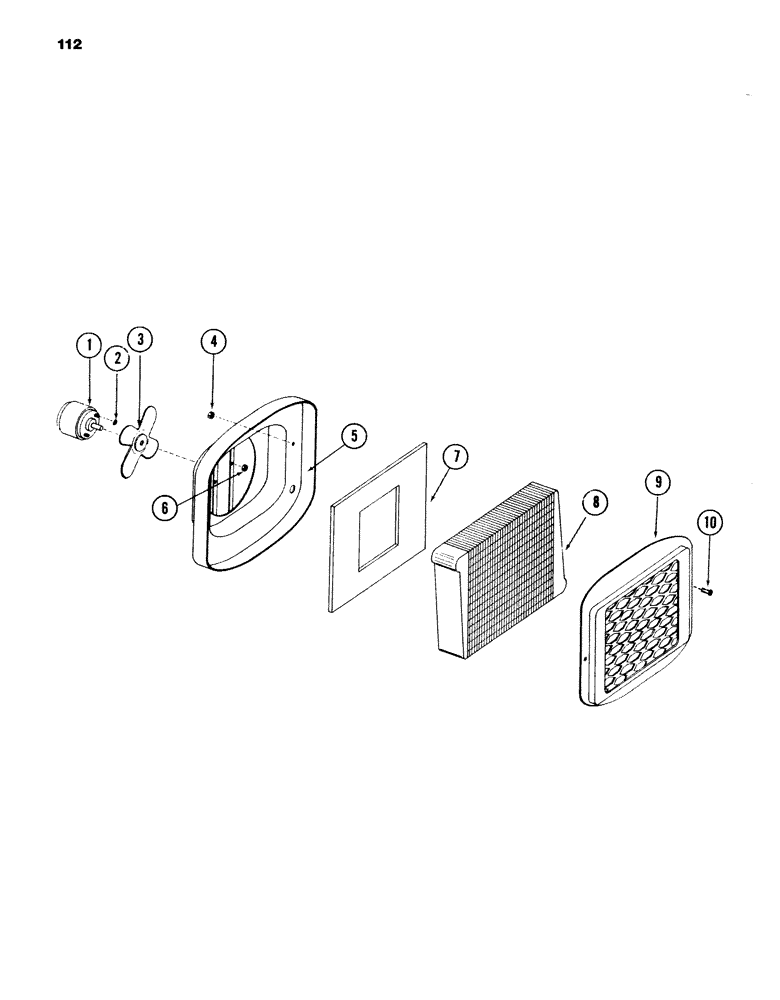

Запчасти Case 980B (112) - HEATER, (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

S507825

HEATER

Includes: Ref. 1 - 11

1шт.

1

D54871

MOTOR

1шт.

2

L35760

WASHER

1шт.

3

S87351

FAN

1шт.

4

129-18

NUT,#12-24

2шт.

5

S97846

CASING

ASSEMBLY

1шт.

6

225-14208

NUT,#8-36

2шт.

7

S87354

PAD

2шт.

8

S107728

HEAT-EXCHANGER

CORE

1шт.

9

S97848

BAFFLE

1шт.

10

S87352

SCREW

2шт.

11

S97852

SWITCH

ASSEMBLY - (NOT ILLUSTRATED)

1шт.

The bulb is not serviced separately.

1шт.
