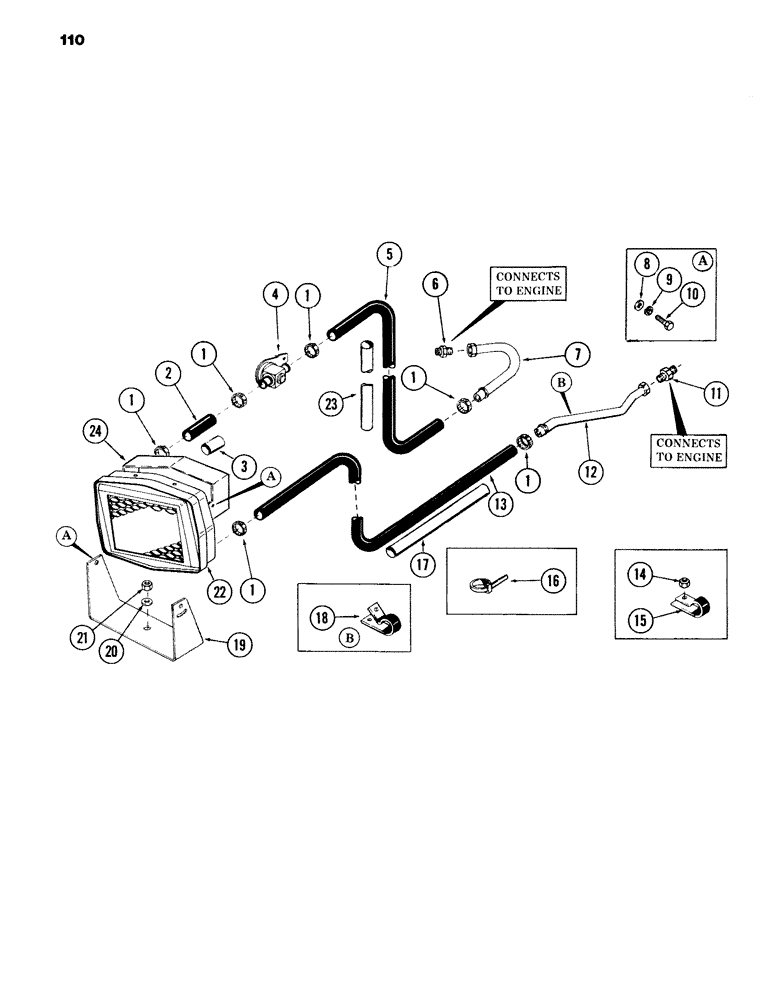

Запчасти Case 980B (110) - HEATER, HOSES AND ATTACHING PARTS, (USED ON UNITS WITH PIN 6204051 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

1

214-25

CLAMP

- hose

6шт.

2

S49608

HOSE

- hydraulic, 4" long (101.6 mm)

1шт.

3

S113778

CONDUIT - 3" long (76.2 mm)

1шт.

4

S223937

VALVE

- heater

1шт.

5

S49608

HOSE

- hydraulic, 136" long (3.45 m)

1шт.

6

218,1026

CONNECTOR - 5/8" tube x 7/8" - 14

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- hose to engine

1шт.

8

195-516

WASHER,#12

- flat, 1/4"

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Mounts heater to bracket and shroud to heater) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

11

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - 5/8" tube x 7/8" - 14 x 3/4" - 14 PT

1шт.

12

S231777

TUBE,0.62" OD x 3.85, 34.05" L

- hose to engine

1шт.

13

S49608

HOSE

- hydraulic, 121" long (3.07 m)

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - lock - 3/8" NC hex

1шт.

15

R14668

CLAMP

- (clamps hose under floor plate and engine flywheel)

4шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

17

S113778

CONDUIT - 22" long (558 mm)

1шт.

18

49885

CLAMP

tube

1шт.

19

S513714

BRACKET - heater support

1шт.

20

195-103

WASHER,5/16"

- flat - 7/16"

1шт.

21

131-206

NUT,3/8"-16

NUT - lock - 3/8" NC hex

1шт.

22

REF

INSTRUCTION

HEATER - hot water - (See Figure 112)

1шт.

23

S113778

CONDUIT - 18" long (457 mm)

1шт.

24

S237006

SHROUD - heater

1шт.
