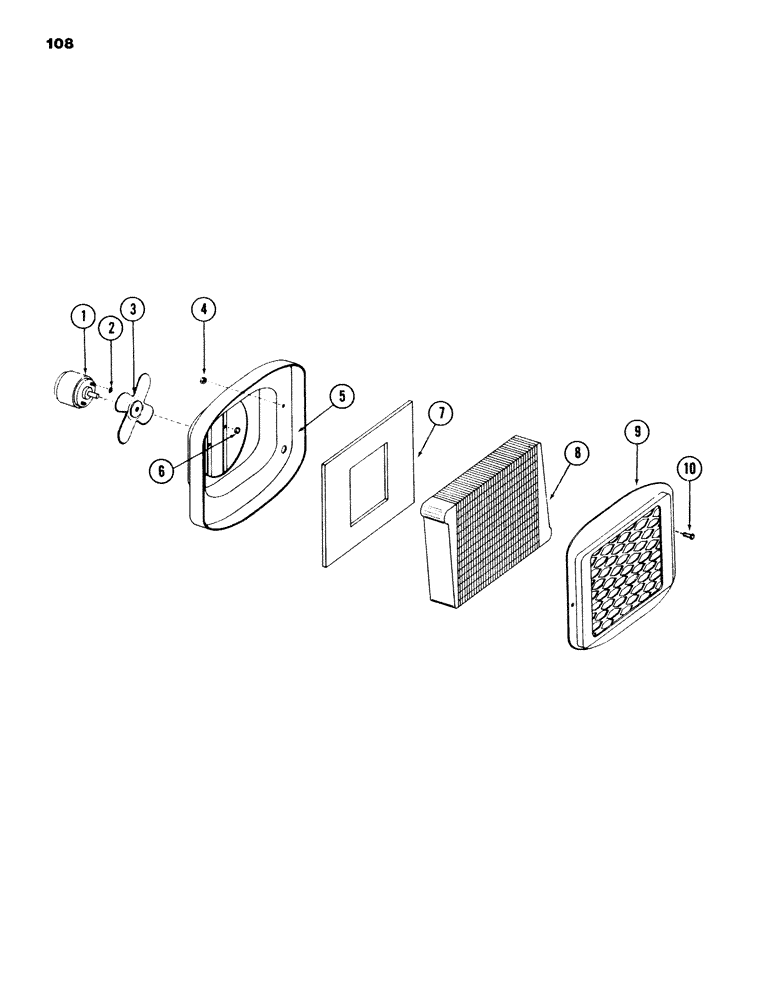

Запчасти Case 980B (108) - HEATER, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

S39842

HEATER, Includes: Ref. 1 - 11

1шт.

1

A44571

MOTOR, ELECTRIC

MOTOR

1шт.

2

L30905

WASHER

1шт.

3

S87351

FAN

1шт.

4

129-18

NUT,#12-24

2шт.

5

S97845

CASING ASSEMBLY

1шт.

6

225-14208

NUT,#8-36

2шт.

7

S87354

PAD

2шт.

8

S107728

HEAT-EXCHANGER

CORE

1шт.

9

S97848

BAFFLE

1шт.

10

S87352

SCREW

2шт.

11

S87356

SWITCH

ASSEMBLY - (NOT ILLUSTRATED)

1шт.
