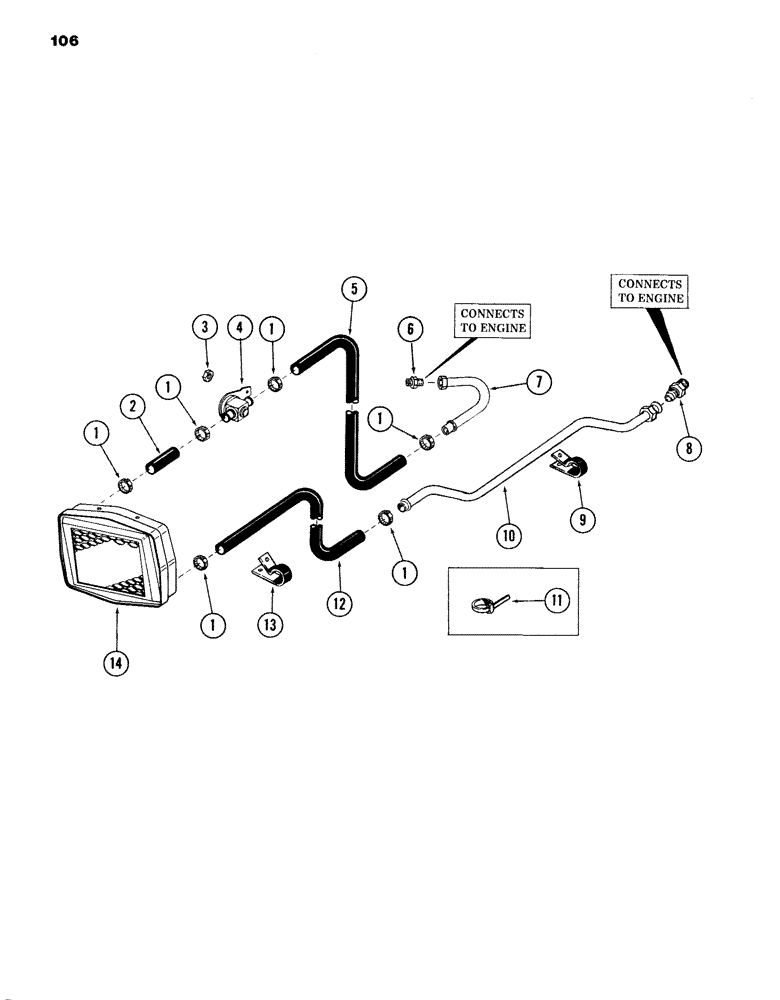

Запчасти Case 980B (106) - HEATER HOSES AND LINES, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

6шт.

2

S49608

HOSE

- low pressure - (BULK) - 1 piece - 5/8" ID x 4" long

1шт.

3

S48576

NUT

- (Secures control, Serial Range: cable-valve)

1шт.

4

S223937

VALVE

- heater

1шт.

5

S49608

HOSE

- low pressure - (BULK) - 1 piece - 5/8" ID x 130" long

1шт.

6

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/8" NPT male - 37 degrees flared

1шт.

7

S232219

TUBE,0.62" OD x 3.06, 4.68" L

- hydraulic

1шт.

8

218-457

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - (5/8" tube) - 7/8" - 14 male x 3/4" - 14 male - 37 degrees flared

1шт.

9

NLS

NO LONGER SERVICED

1шт.

10

S213777

TUBE - hydraulic 0.75" OD

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE - cable

1шт.

12

S49608

HOSE

- low pressure - (BULK) - 1 piece - 5/8" ID x 130" long

1шт.

13

R14668

CLAMP

2шт.

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

131-52

NUT,3/8"-16, GC

NUT - self locking, 3/8" NC

1шт.

14

REF

INSTRUCTION

HEATER - hot water - (See Figure 108)

1шт.
