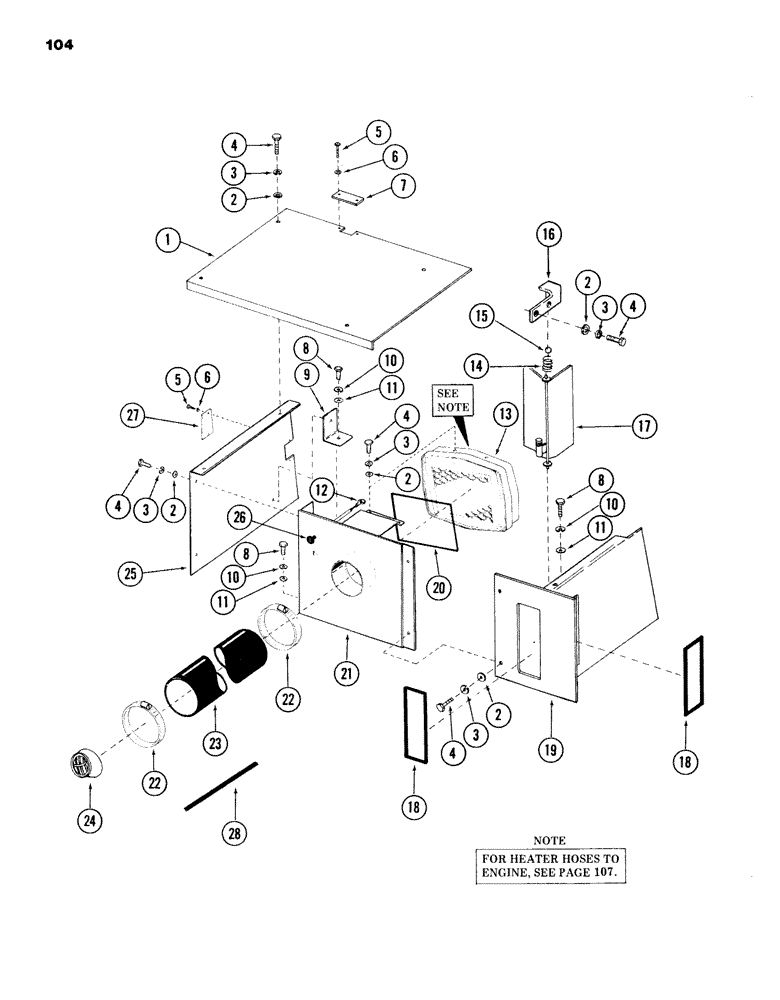

Запчасти Case 980B (104) - HEATER AND ATTACHING PARTS, (USED ON UNITS PRIOR TO PIN 6204051) (05) - UPPERSTRUCTURE CHASSIS

1

S507916

COVER - (top of heater compartments)

1шт.

2

195-518

WASHER,1/4", SAE

- flat, 1/4"

1шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

187-1820

SELF-TAP SCREW,#8 x 1/4"

SCREW - self tapping, No. 8 NC x 1/4"

4шт.

6

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - lock, No. 8 - (internal tooth)

4шт.

7

S97503

COVER

1шт.

8

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

9

S97031

BRACKET - (mounts, Serial Range: shroud-floor)

1шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

11

195-33

WASHER,1/2"

- flat, 1/2"

1шт.

12

223-50

TERMINAL CONNECTOR,14 - 16

TERMINAL

1шт.

13

REF

INSTRUCTION

HEATER - hot water - (See Figure 108)

1шт.

14

S16234

SPRING

1шт.

15

S61683

BALL

1шт.

16

S23224

ANGLE

1шт.

17

S511391

DOOR - vent

1шт.

18

S76711

SEAL

MOLDING - rubber - (BULK) - 2 pieces - 54" long

2шт.

19

S610782

SHROUD

1шт.

20

S76711

SEAL

MOLDING - rubber - (BULK) - 1 piece - 36" long

1шт.

21

S605515

SHROUD

1шт.

22

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - hose

2шт.

23

S97045

HOSE

- low pressure - (BULK) - 1 piece - 5" ID x 24" long

1шт.

24

S223939

LOUVER

1шт.

25

S511221

SHROUD

1шт.

26

S223938

CABLE - temperature control - (connects to ref 5 on Figure 58)

1шт.

27

S97502

COVER

1шт.

28

S73382

MOLDING - rubber - (BULK) - 1 piece - 14" long - (around hole in floor plate)

1шт.
