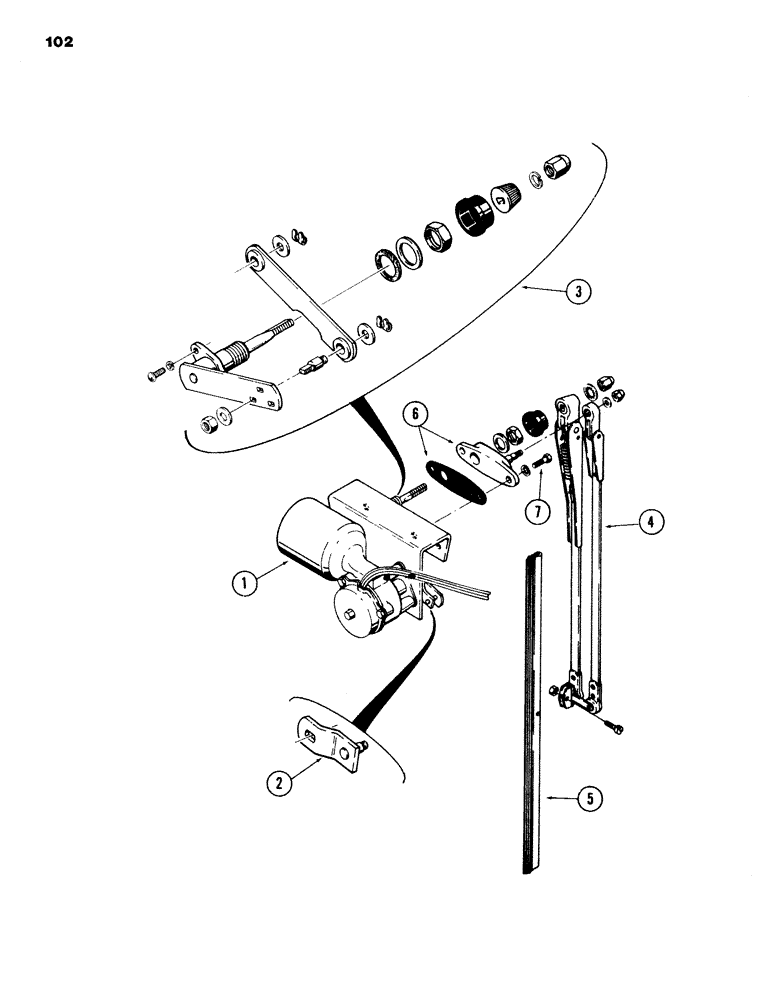

Запчасти Case 980B (102) - WINDSHIELD WIPER KIT, (USED ON UNITS WITH PIN 6204070 AND AFTER) (05) - UPPERSTRUCTURE CHASSIS

S615415

WIPER

KIT, wiper - 24 Volt, Includes: Ref. 1 - 13

1шт.

S615416

KIT

wiper - 12 Volt, Includes: Ref. 1 - 13

1шт.

1

S239047

MOTOR, ELECTRIC

MOTOR, 24 Volt

1шт.

S239046

MOTOR, ELECTRIC

MOTOR, 12 Volt

1шт.

2

S36091

ARM, wiper

1шт.

3

S225151

SHAFT

pivot

1шт.

4

L35260

ARM

wiper

1шт.

5

S225152

BLADE

wiper

1шт.

6

S61798

KIT

PLATE, adapter

1шт.

7

S61799

SCREW

machine - 1/4" x 5/8"

2шт.

8

S61880

LIGHT ASSY.

DOME LIGHT ASSY - 24 Volt - (NOT ILLUSTRATED), Includes: Ref. 9 - 13

1шт.

S61877

LIGHT

DOME LIGHT ASSY - 12 Volt - (NOT ILLUSTRATED), Includes: Ref. 9 - 13

1шт.

9

223-93

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - (NOT ILLUSTRATED)

1шт.

10

S117176

LIGHT, dome - (NOT ILLUSTRATED)

1шт.

11

S97035

BULB

24 Volt - (NOT ILLUSTRATED)

1шт.

B50223

BULB

12 Volt - (NOT ILLUSTRATED)

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - (NOT ILLUSTRATED)

1шт.

13

S60825

SCREW

machine No 6 x 1/2" mounts dome light - (NOT ILLUSTRATED)

4шт.

Bulb # 1309 is p/n s96951.

1шт.

LONGEST BAR IN REF #3 IS P/N S61876.

1шт.

THE PLUG FOR THE CORD ON WIPER MOTOR COMING OUT OF FIG 1 IS S117619.

1шт.
