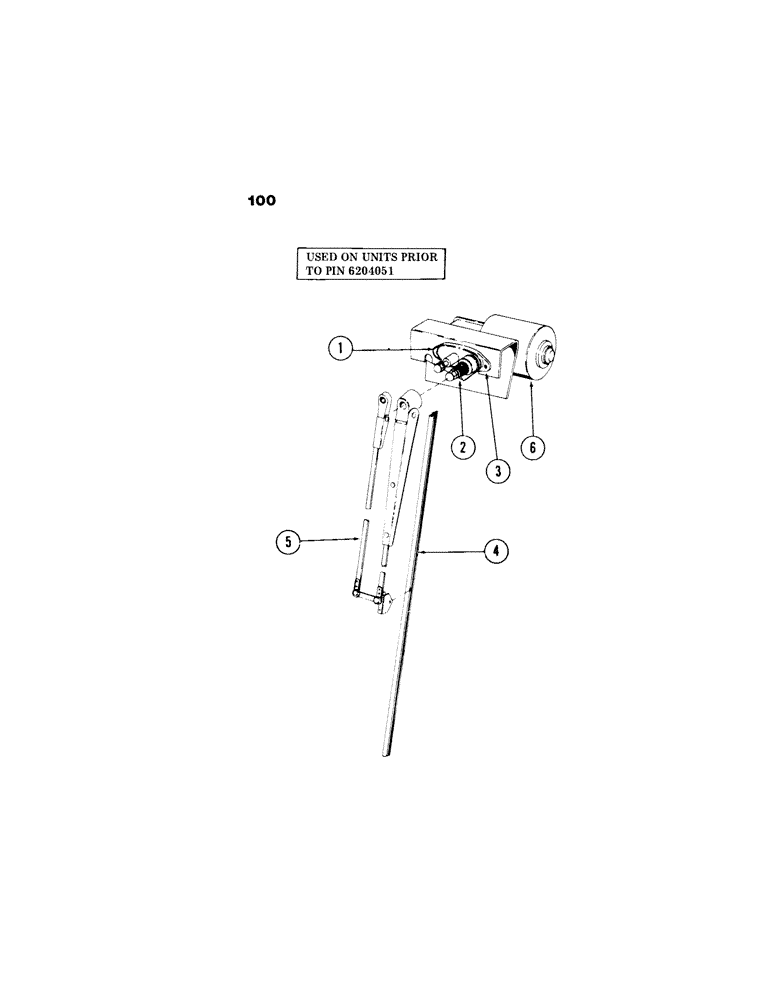

Запчасти Case 980B (100) - WINDSHIELD WIPER KITS, USED ON UNITS PRIOR TO PIN 6204051, USED ON UNITS W/ PIN6204051 THRU 6204069 (05) - UPPERSTRUCTURE CHASSIS

S605307

WIPER MOTOR

KIT, 12 Volt wiper, Includes: Ref. 1 - 15

1шт.

1

S61798

KIT

PLATE, adapter

1шт.

2

S225151

SHAFT

pivot

1шт.

3

S61799

SCREW

machine

2шт.

4

S225152

BLADE

wiper

1шт.

5

L35260

ARM

wiper

1шт.

6

S61800

MOTOR

modified wiper

1шт.

7

S61873

PLUG

- (NOT ILLUSTRATED)

1шт.

8

S61874

CLIP

SPRING - (NOT ILLUSTRATED)

2шт.

9

S61875

WASHER

spring - (NOT ILLUSTRATED)

2шт.

10

S61876

LINK

LINE, connecting - (NOT ILLUSTRATED)

1шт.

11

S61877

LIGHT

dome - (NOT ILLUSTRATED)

1шт.

12

A41647

KNOB

- (NOT ILLUSTRATED)

1шт.

13

S96778

NUT

jam - (NOT ILLUSTRATED)

1шт.

14

A41730

DECAL

- (NOT ILLUSTRED)

1шт.

15

187-1812

SCREW, self tapping - No. 6 x 3/8" - (mounts dome light) - (NOT ILLUSTRATED)

4шт.
