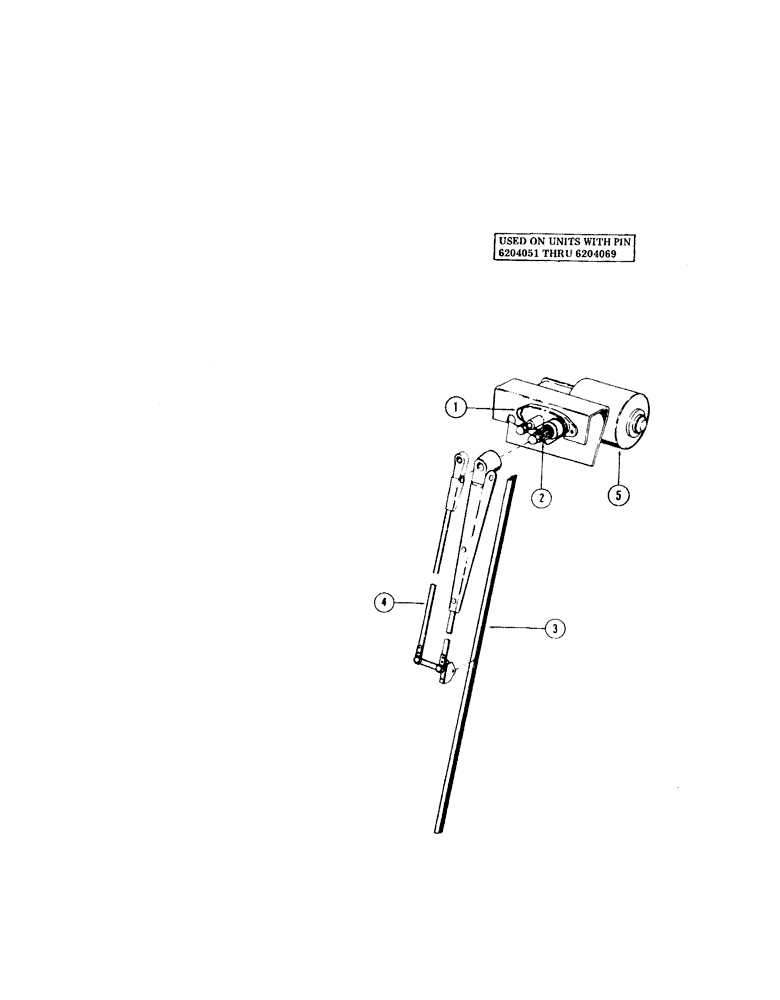

Запчасти Case 980B (100[01]) - WINDSHIELD WIPER KIT USED ON UNITS WITH PIN 6204051 THRU 6204069 (05) - UPPERSTRUCTURE CHASSIS

S605308

KIT

KIT - wiper 24 volt, Includes: Ref. 1 - 9

1шт.

1

S61798

KIT

KIT - adapter (includes gaskets)

1шт.

2

S225151

SHAFT

SHAFT - pivot

1шт.

3

S225152

BLADE

BLADE - wiper - 22" long

1шт.

4

L35260

ARM

ARM - wiper - 20" long

1шт.

5

S61879

SPARE PART MOTOR - modified wiper

1шт.

S61873

PLUG

SPARE PART PLUG - (NOT ILLUSTRATED)

1шт.

S61874

CLIP

CUP - spring - (NOT ILLUSTRATED)

2шт.

S61875

WASHER

WASHER - spring - (NOT ILLUSTRATED)

1шт.

S61876

LINK

LINK - connecting - (NOT ILLUSTRATED)

1шт.

6

S61799

SCREW

SCREW - machine - 1/4" x 5/8" - (NOT ILLUSTRATED)

2шт.

7

A36091

ARM

ARM - drive - (NOT ILLUSTRATED)

1шт.

8

S225028

IGNITION SWITCH

SWITCH - wiper - (NOT ILLUSTRATED)

1шт.

D80343

SPARE PART KNOB - wiper switch

1шт.

9

S61880

LIGHT ASSY.

LIGHT - dome - (NOT ILLUSTRATED)

1шт.

187-1812

SPARE PART SCREW - machine No. 6 x 3/8" mounts dome light - (NOT ILLUSTRATED)

4шт.
