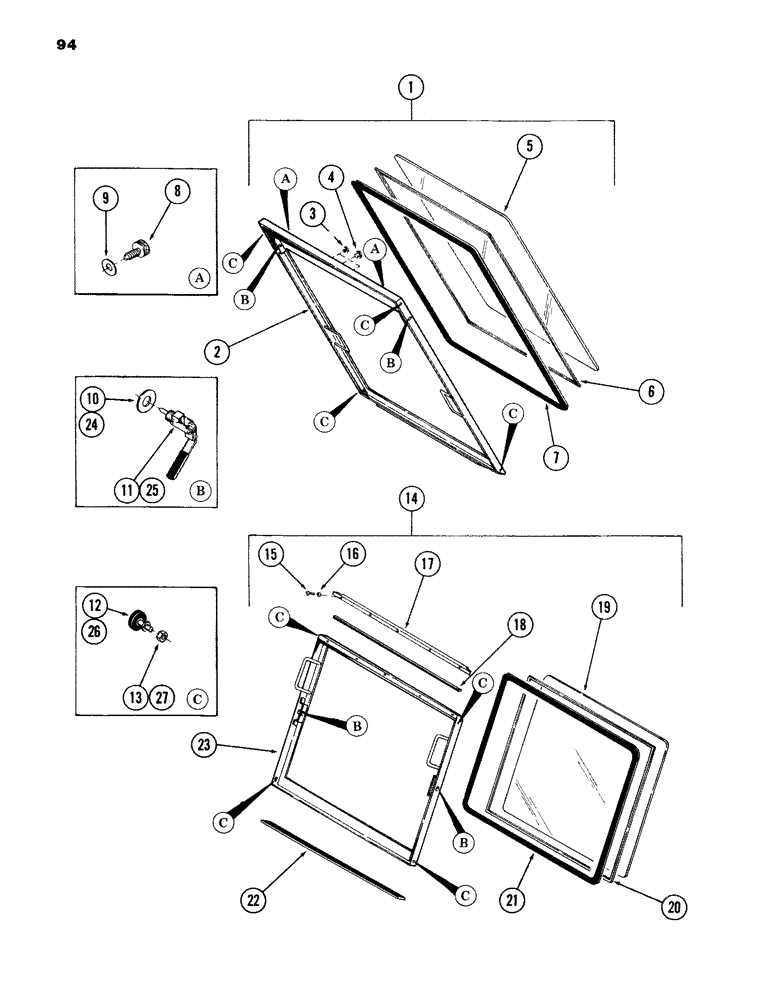

Запчасти Case 980B (094) - CAB & ATTACHING PARTS,(UPPR & LOWR FRNT WINDOW & ATTACHING PARTS,(USED ON UNITS PRIOR TO PIN 620070) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

ASSY - (includes refs listed below and Figures 88 thru 94 and 96 thru 98), Includes: Ref. 1 - 28

1шт.

1

S610784

WINDOW

ASSY - front upper, Includes: Ref. 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

WINDOW - weldment

1шт.

3

353-260

PLUG - 5/16" Cap, 5/16"-24

2шт.

4

353-256

PLUG,1 1/8"

- 3/4"

1шт.

5

S108099

GLASS - front upper

1шт.

6

S75830

SEAL

STRIP - filler 145" long (3683 mm)

1шт.

7

S75829

SEAL

RUBBER - glass setting 145" long (3683 mm)

1шт.

8

S109773

FASTENER

2шт.

9

S60969

WASHER

- flat 1/2"

2шт.

10

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

11

S231570

CLAMP

- windshield (RIGHT HAND)

1шт.

S231571

CLAMP

- windshield (LEFT HAND)

1шт.

12

D70621

ROLLER

- rubber

4шт.

13

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

14

S610774

WINDOW

ASSY - front lower, Includes: Ref. 15 - 27

1шт.

15

S60105

SCREW - machine - 1/4" x 1/2" NF

5шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

17

S511205

BRACKET

1шт.

18

S60106

CHANNEL - rubber 30" long (762 mm)

1шт.

19

S108100

WINDOW - plastic

1шт.

20

S75830

SEAL

STRIP - filler 73" long (1854 mm)

1шт.

21

S75829

SEAL

RUBBER - glass setting 73" long (1854 mm)

1шт.

22

S109912

SEAL - 62" long (1574 mm)

1шт.

23

NSS

NOT SOLD SEPARAT

WINDOW - weldment

1шт.

24

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER - flat 3/4"

4шт.

25

S231570

CLAMP

- windshield (RIGHT HAND)

1шт.

S231571

CLAMP

- windshield (LEFT HAND)

1шт.

26

D70621

ROLLER

- rubber

4шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

28

S109779

ADHESIVE - (NOT ILLUSTRATED)

1шт.
