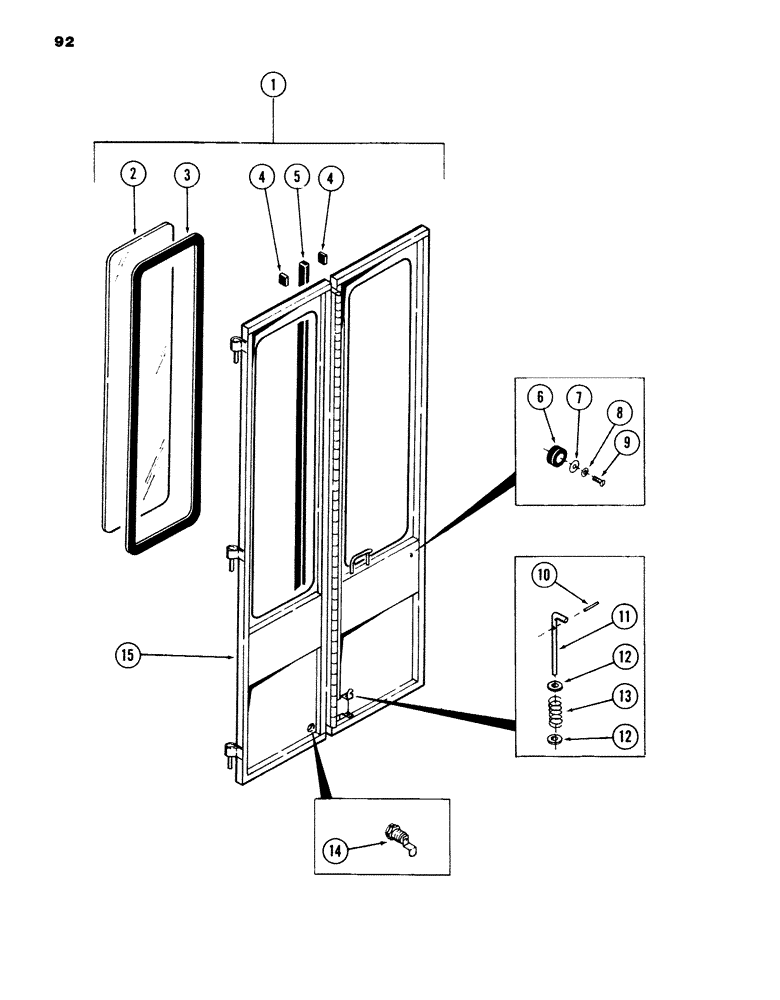

Запчасти Case 980B (092) - CAB AND ATTACHING PARTS, (DOOR AND ATTACHING PARTS), (USED ON UNITS PRIOR TO PIN 6204070) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

ASSY - (includes refs listed below and Figures 88 thru 92 and 94 thru 98), Includes: Ref. 1 - 18

1шт.

1

S955039

DOOR ASSY, Includes: Ref. 2 - 18

1шт.

2

S108102

WINDOW - plastic

2шт.

3

S109778

SEAL

SETTING MATERIAL - 92" long (2336 mm)

2шт.

4

S109777

SEAL

- 1.13" long (33.2 mm)

4шт.

5

S109508

SEAL

- 59" long (1498 mm)

1шт.

6

S109512

BUMPER

- door stop

1шт.

7

S109505

WASHER - fender

1шт.

8

195-513

WASHER,#10

- flat 7/32"

1шт.

9

174-102

SCREW,Sl Rnd Hd, #10 - 32 x 1"

- machine No. 10 x 1" NF

1шт.

10

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

11

S231613

PIN

1шт.

12

195-102

WASHER,1/4"

flat 1/4"

2шт.

13

S238355

SPRING

- (Replaces S62977)

1шт.

14

S90080

LOCK

- door

1шт.

15

NSS

NOT SOLD SEPARAT

DOOR - wledment

1шт.

16

REF

INSTRUCTION

INSULATION - (see ref. 3 on Figure 98)

1шт.

17

REF

INSTRUCTION

INSULATION - (see ref. 3 on Figure 98)

1шт.

18

S95517

ADHESIVE

- (NOT ILLUSTRATED)

1шт.
