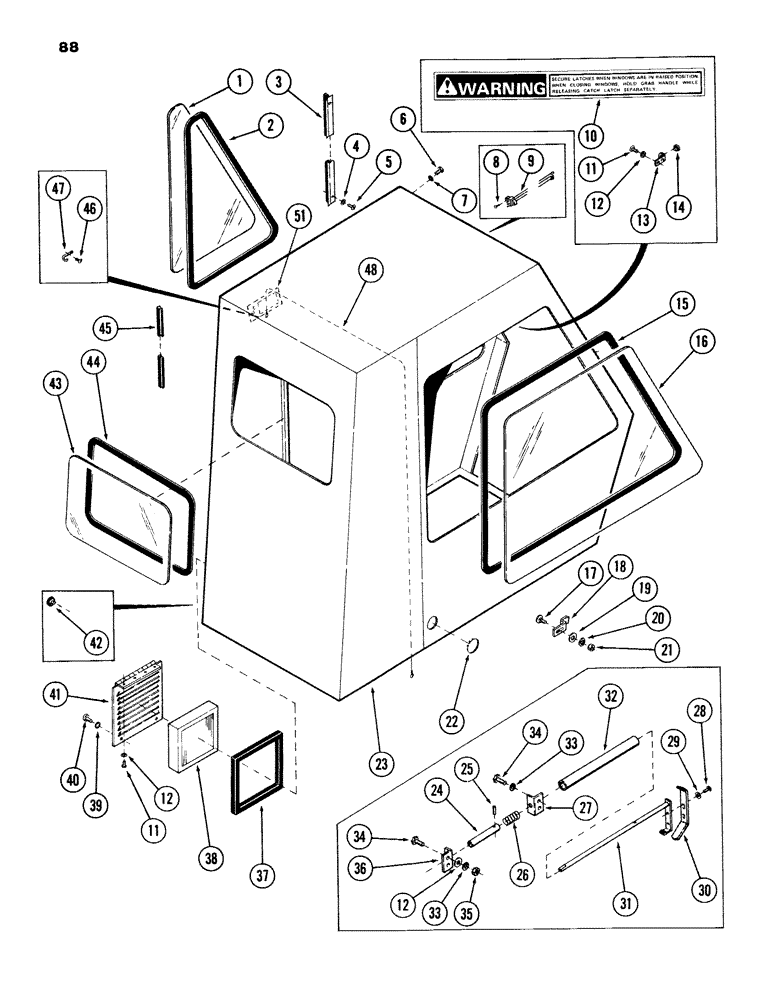

Запчасти Case 980B (088) - CAB AND ATTACHING PARTS, (USED ON UNITS PRIOR TO PIN 6204070) (05) - UPPERSTRUCTURE CHASSIS

S955032

CAB

ASSY - includes refs listed below and Figures 90 thru 98), Includes: Ref. 1 - 40

1шт.

1

S108104

WINDOW - plastic

1шт.

2

S109779

SETTING MATERIAL - 102" (2590 mm)

1шт.

3

S108310

RETAINER - door

1шт.

4

195-102

WASHER,1/4"

flat 1/4"

6шт.

5

S109766

SCREW

- machine 5/16" x 3/4" NC

6шт.

6

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

A12643

WASHER

- seal 3/8"

3шт.

8

S60825

SCREW

- machine No. 6 x 1/2"

2шт.

9

S231582

HARNESS

SOCKET ASSY

1шт.

(24 Volt)

1шт.

10

S232929

DECAL - window warning

1шт.

11

S109767

SCREW

- machine 1/4" x 3/4" NC

4шт.

12

195-101

WASHER,3/16"

- flat 1/2"

6шт.

13

S236544

BRACKET - bumper (Replaces S231611)

2шт.

14

S109513

BUMPER

2шт.

15

S109778

SEAL

SETTING MATERIAL - 156" long (3962 mm)

1шт.

16

S108103

WINDOW - plastic

1шт.

17

111-342

BOLT - carriage 3/8" x 1" NC

8шт.

18

S231580

BRACKET - (RIGHT HAND)

2шт.

S231581

BRACKET - (LEFT HAND)

2шт.

19

195-103

WASHER,5/16"

- flat 3/8"

8шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

21

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

22

S61989

PLUG - button

1шт.

23

NSS

NOT SOLD SEPARAT

CAB - weldment - (Order Cab Assy S955032)

1шт.

S231583

RETAINER

DOOR RETAINER ASSY, Includes: Ref. 24 - 31

1шт.

24

S108308

TUBE,0.75" OD x 6.41" L

1шт.

25

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

26

S109506

SPRING

1шт.

27

S108307

BRACKET

1шт.

28

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

- machine 1/4" x 1/2" NC

2шт.

29

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

S511203

BRACKET

1шт.

31

S231584

RETAINER

- door weldment

1шт.

32

S108309

TUBE,1" OD x 9.44" L

1шт.

33

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

34

S63053

SCREW

- machine 1/4" x 5/8" NC

4шт.

35

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

36

S108307

BRACKET

1шт.

37

S106978

SEAL - 43" long (1092 mm) - (used on units prior to PIN 6204051)

1шт.

Should be S106778

1шт.

38

S225946

FILTER

- (used on units prior to PIN 6204051)

1шт.

39

S60969

WASHER

- (used on units prior to PIN 6204051)

2шт.

40

S109744

FASTENER - (used on units prior to PIN 6204051)

2шт.

41

S511206

DOOR - filters - (used on units prior to PIN 6204051)

1шт.

42

S109513

BUMPER - door - (used on units prior to PIN 6204051)

1шт.

43

S108101

WINDOW - plastic

1шт.

44

S109778

SEAL

SETTING MATERIAL - 84" long (2133 mm)

1шт.

45

S109775

SEAL

- strip 279" (7086 mm)

1шт.

P/N S109775 THE SEAL IS FOR WINDSHIELD.

1шт.

46

S109769

SCREW

- machine No. 10 ID x 3/4" NF

2шт.

47

S61769

HOOK

1шт.

48

S231612

WIRE ASSY

1шт.

49

S95517

ADHESIVE

- use with seals (NOT ILLUSTRATED)

1шт.

50

345-22

ADHESIVE

- use with seal on ref. 3 (NOT ILLUSTRATED)

1шт.

51

REF

INSTRUCTION

LIGHT - dome - (See Ref.11 on Figure 100)

1шт.
