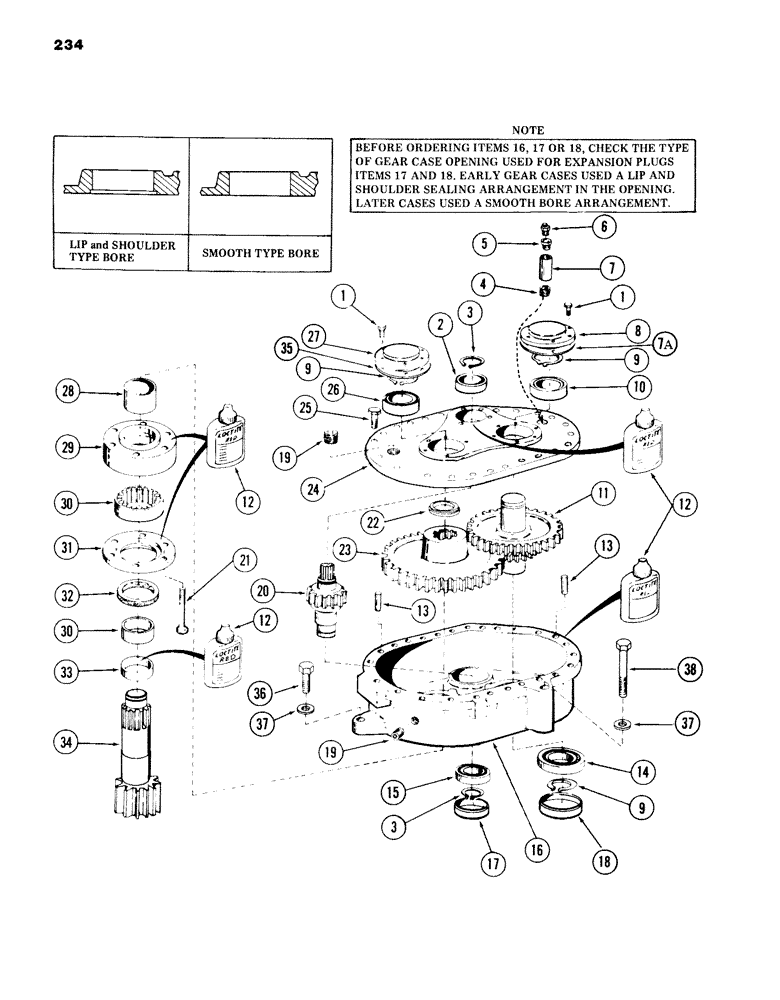

Запчасти Case 980B (234) - SWING REDUCER, (USED ON UNITS WITH PIN 6204053 AND AFTER) (04) - UNDERCARRIAGE

S955796

REDUCER

swing, Includes: Ref. 1 - 14

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

5

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

BUSHING, reducer - 3/8" NPT male x 1/8" NPT female

1шт.

6

L33264

BREATHER

VENT, breather

1шт.

7

S216625

TUBE,60" L

oil breather

1шт.

7

S103261

GASKET

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S612548

GEAR

cluster - (intermediate)

1шт.

12

B17423

LOCTITE

- 10 cc bottle - (red) - (replaces gaskets) - (substitutes must not be used)

1шт.

13

S97539

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

15

D47572

BEARING

ball, Includes: Ref. 16

1шт.

16

S613678

CASE

gear - (used on later units with smooth bore opening)

1шт.

16a

S615133

PACKAGE

GEAR CASE KIT - (required for replacement for early gear CASE S606331 with lip and shoulder sealing arrangement), Includes: Ref. 17

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

221-43

PLUG

pipe - 3/8" NPT - (socket head)

2шт.

17

S114620

PLUG

expansion - (Supersedes 41-58) - (used on later units with smooth bore opening), Includes: Ref. 19 - 35

1шт.

41-58

PLUG,Exp, 3 3/4"

expansion - (used on early units with lip and shoulder sealing arrangement), Includes: Ref. 19 - 35

1шт.

18

S114619

PLUG

expansion - (Supersedes 41-48) - (used on later units with smooth bore opening), Includes: Ref. 19 - 35

1шт.

41-48

PLUG,Exp, 3"

expansion - (used on early units with lip and shoulder sealing arrangement), Includes: Ref. 19 - 35

2шт.

19

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (socket head)

2шт.

20

S612550

SHAFT

PINION and SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" nc x 3-1/4" Gr 8

6шт.

22

S235525

SPACER

, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

drive

1шт.

24

S612551

COVER

gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" nc x 1-3/4" Gr 8

22шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, roller - (Supersedes S98375)

1шт.

27

S214012

CAP

bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

S238616 Gasket, between the Swing Reducer and the Drum

1шт.

For new heavy duty gear box (P/N S618296) see s/b EP08.1-86.

1шт.

S955796 (COMPLETE SWING REDUCER) SUBBED TO S956942.

1шт.

30

S112817

ROLLER BEARING,75mm ID x 130mm OD x 41.28mm W

BEARING and RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S612544

SHAFT

and GEAR, output

1шт.

35

S85842

GASKET

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" nc x 2" Gr 8

1шт.

37

S92341

WASHER

flat - 7/8" - (hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" nc 5-3/4" Gr 8

2шт.
