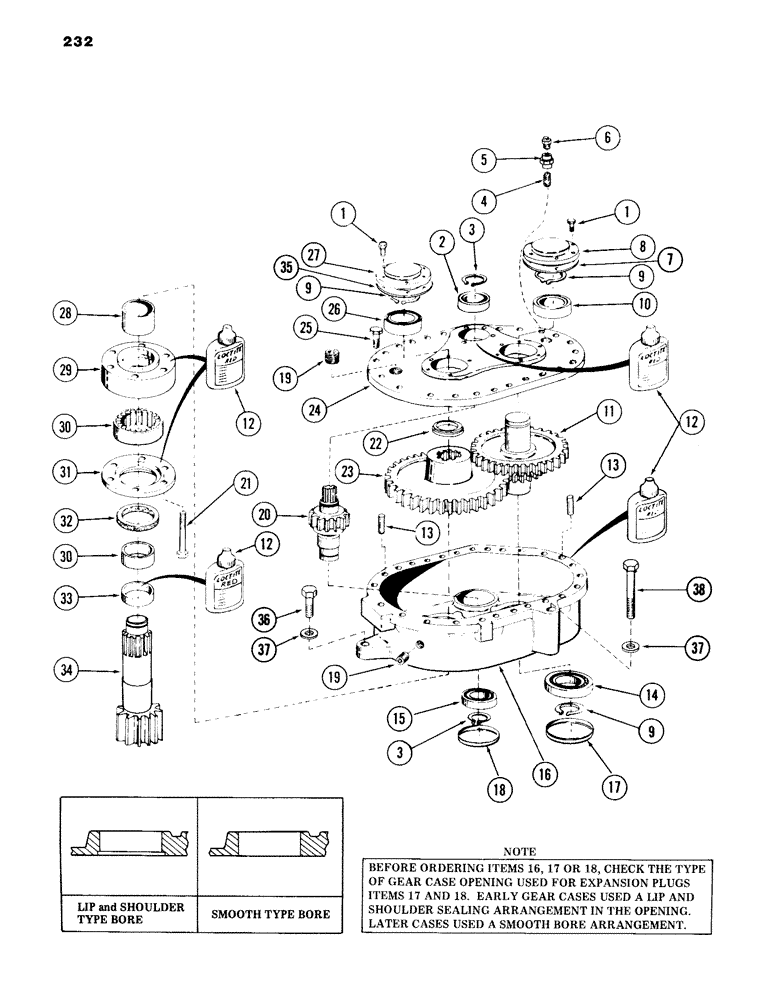

Запчасти Case 980B (232) - SWING REDUCER, (USED ON UNITS WITH PIN 6203908 THRU 6204052) (04) - UNDERCARRIAGE

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

5

S216625

TUBE,60" L

CONNECTOR, pipe

1шт.

6

L33264

BREATHER

VENT, breather

1шт.

7

S103261

GASKET

1шт.

8

S402194

CAP

bearing

1шт.

9

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

10

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

11

S612548

GEAR

cluster - (intermediate)

1шт.

12

B17423

LOCTITE

- 10 cc bottle - (red) - (replaces gaskets) - (substitutes must not be used)

1шт.

13

S64319

CALIPER

DOWEL

2шт.

14

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

15

D47572

BEARING

ball

1шт.

16

S613678

CASE

gear - (used on later units with smooth bore opening)

1шт.

16a

S615133

PACKAGE

GEAR CASE KIT - (required for replacement of early gear case S606331 with lip and shoulder sealing arrangement)

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

21-43

PLUG, pipe - 3/8" NPT - (socket head)

2шт.

17

S114620

PLUG

expansion - (Supercedes 41-58) - (used on later units with smooth bore opening)

1шт.

41-48

PLUG,Exp, 3"

expansion - (used on early units with lip and shoulder sealing arrangement)

1шт.

18

S114619

PLUG

expansion - (Supersedes 41-48) - (used on later units with smooth bore opening)

1шт.

41-48

PLUG,Exp, 3"

expansion - (used on early units with lip and shoulder sealing arrangement)

1шт.

19

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (socket head)

4шт.

20

S612550

SHAFT

PINION and SHAFT, input

1шт.

21

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" nc x 3-1/4" Gr 8

6шт.

22

S235525

SPACER

, Serial Range: bearing-gear

1шт.

23

S612546

GEAR

drive

1шт.

24

S612551

COVER

gear case

1шт.

25

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" nc x 1-3/4" Gr 8

22шт.

26

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, ball

1шт.

27

S214012

CAP

bearing

1шт.

28

S235526

SPACER

1шт.

29

S508461

RETAINER

roller bearing

1шт.

30

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING and RACE ASSEMBLY

1шт.

31

S508460

RETAINER

oil seal

1шт.

32

S98415

OIL SEAL

oil

1шт.

For heavy duty swing gear box see S/B EP08-85 & EP08.1-86.

1шт.

33

S225232

OIL SEAL

RING

1шт.

34

S612544

SHAFT

and GEAR, output

1шт.

35

S85842

GASKET

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" nc x 2" Gr 8

1шт.

37

S92341

WASHER

flat - 7/8" - (hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" nc x 5-3/4" Gr 8

2шт.
