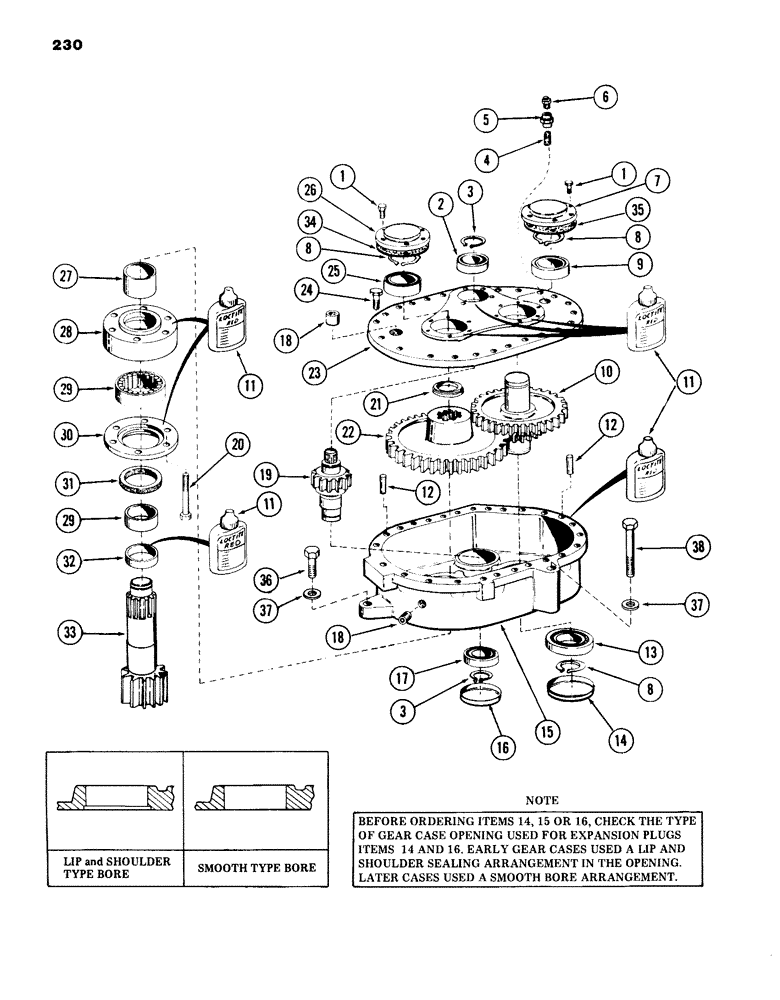

Запчасти Case 980B (230) - SWING REDUCER, (USED ON UNITS PRIOR TO PIN 6203908) (04) - UNDERCARRIAGE

NSS

NOT SOLD SEPARAT

REDUCER, swing - (Order S955796 on Figure 234), Includes: Ref. 1 - 35

1шт.

1

113-172

BOLT,Hex, 5/16" - 18 x 1", Gr 8

12шт.

2

S105964

CYLINDER END CAP

BEARING, ball

1шт.

3

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

4

221-158

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE - 3/8" NPT x 1" long

1шт.

5

S216625

TUBE,60" L

CONNECTOR, pipe

1шт.

6

L33264

BREATHER

VENT, breather

1шт.

7

S402194

CAP

bearing

1шт.

8

A17903

SNAP RING,#156, Ext

Ring, Snap, #156, Ext

3шт.

9

S86268

BALL BEARING,40mm ID x 80mm OD x 18mm W

BEARING, ball

1шт.

10

S603733

GEAR

cluster - (intermediate)

1шт.

11

B17423

LOCTITE

- 10 cc bottle - (red) - (replaces gaskets) - (substitutes must not be used)

1шт.

12

S97539

DOWEL

2шт.

13

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

14

S114620

PLUG

expansion, supersedes 41-58, used on later units with smooth bore opening

1шт.

41-58

PLUG,Exp, 3 3/4"

expansion, used on early units with lip and shoulder sealing arrangement

1шт.

15

S613678

CASE

gear - (used on later units with smooth bore opening)

1шт.

15a

S615133

PACKAGE

GEAR CASE KIT - (required for replacement of early gear case S606331 with lip and shoulder sealing arrangement)

1шт.

S613678

CASE

gear

1шт.

S114620

PLUG

expansion

1шт.

S114619

PLUG

expansion

1шт.

21-843

PLUG, pipe - 3/8" NPT - (socket head)

2шт.

16

S114619

PLUG

expansion - (Supercedes 41-48) - (used on later units with smooth bore opening)

1шт.

41-58

PLUG,Exp, 3 3/4"

expansion - (used on early units with lip and shoulder sealing arrangement)

1шт.

17

D47572

BEARING

ball

1шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

pipe - 3/8" NPT - (socket head)

4шт.

19

S609333

SHAFT

PINION and SHAFT, input

1шт.

20

26-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

- 5/8" nc x 3-1/4" Gr 8

6шт.

21

S235525

SPACER

, Serial Range: bearing-gear

1шт.

22

S603736

GEAR

drive, Replaces S612546

1шт.

23

S612551

COVER

gear case

1шт.

S603758

COVER

gear case, 610 thick

1шт.

24

26-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8" nc x 1-3/4" Gr 8

22шт.

25

S238147

SPHERICAL BEARING,40mm ID x 90mm OD x 23mm

BEARING, ball - (Supercedes S98375)

1шт.

26

S214012

CAP

bearing

1шт.

27

S235526

SPACER

1шт.

28

S508461

RETAINER

roller bearing

1шт.

29

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING and RACE ASSEMBLY

1шт.

30

S508460

RETAINER

oil seal

1шт.

31

S98415

OIL SEAL

oil

1шт.

32

S225232

OIL SEAL

RING

1шт.

33

S606286

SHAFT

and GEAR, output

1шт.

34

S85842

GASKET

1шт.

35

S103261

GASKET

1шт.

36

26-1432

BOLT,Hex, 7/8" - 9 x 2", Gr 8

- 7/8" nc x 2" Gr 8

1шт.

37

S92341

WASHER

flat - 7/8" - (hardened steel)

3шт.

38

26-1492

BOLT,Hex, 7/8" - 9 x 5-3/4", Gr 8

- 7/8" nc x 5-3/4" Gr 8

2шт.
