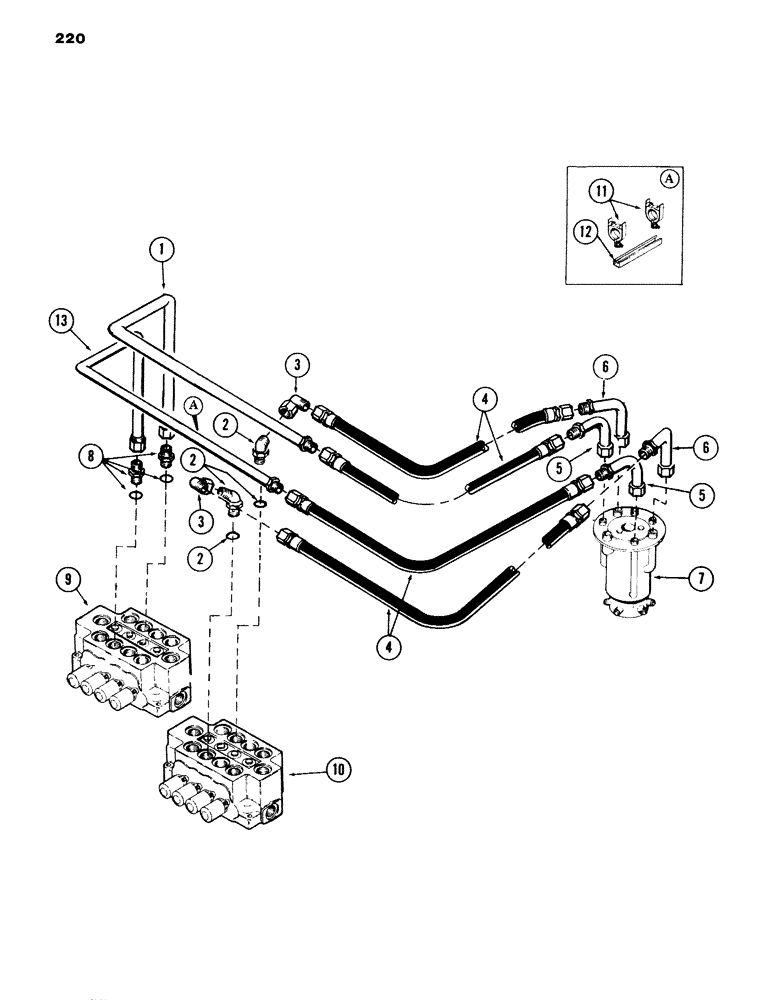

Запчасти Case 980B (220) - TRACK DRIVE MOTOR TUBING FROM VALVE TO SWIVEL, (USED ON UNITS WITH PIN 6204051 AND AFTER) (04) - UNDERCARRIAGE

1

S513664

TUBE,1.25" OD

- valve to hose

1шт.

2

S11257

FITTING

ELBOW - 45 degrees - 1" tube x 1-5/16" - 12 adjustable

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.

3

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degrees - 1" tube x 1-5/16" - 12 swivel

2шт.

4

S8628

HOSE

-, Serial Range: valve-swivel

4шт.

5

S237062

TUBE,1" OD x 6.06, 4.91" L

- hose to swivel

2шт.

6

S229157

TUBE,1" OD x 7.62, 8.75" L

- hose to swivel

2шт.

7

REF

INSTRUCTION

SWIVEL - 7 port hydraulic (See Figure 324)

1шт.

8

S7972

CONNECTOR, ELEC

CONNECTOR - 1" tube x 1-5/16" - 12

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

2шт.

9

REF

INSTRUCTION

VALVE - 4-spool main hydraulic (OUTSIDE) (See Figure 298)

1шт.

10

REF

INSTRUCTION

VALVE - 4-spool main hydraulic (INSIDE) (See Figure 296)

1шт.

11

S93266

CLAMP

- tube

2шт.

12

S98782

CHANNEL

- tube mounting

1шт.

13

S237060

TUBE,1.25" OD

- valve to hose

1шт.
